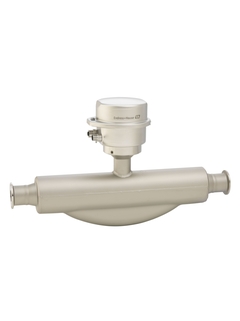

Proline Promass F 500
Coriolis flowmeter

The flowmeter with premium accuracy and robustness, as remote version with up to 4 I/Os

  • Coriolis flowmeter - Proline Promass F 500 ©Endress+Hauser
  • Proline Promass F 500 for the food & beverages and life sciences industries
©Endress+Hauser

    Proline Promass F 500 for the food & beverages and life sciences industries

  • Proline Promass F 500 for the chemical industry
©Endress+Hauser

    Proline Promass F 500 for the chemical industry

  • Proline Promass F 500 for the chemical industry
©Endress+Hauser

    Proline Promass F 500 for the chemical industry

  • The Coriolis Flow Measuring Principle

Promass F has a long-standing reputation as a highly accurate sensor. Immune to fluctuating and harsh environments it is suited for the broadest range of applications. With its innovative remote transmitter Promass F 500 maximizes installation flexibility and operational safety in demanding environments. Heartbeat Technology ensures compliance and process safety at all times.

Benefits

  • Highest process safety – immune to fluctuating and harsh environments

  • Fewer process measuring points – multivariable measurement (flow, density, temperature)

  • Space-saving installation – no in/outlet run needs

  • Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses

  • Reduced complexity and variety – freely configurabe I/O functionality

  • Integrated verification – Heartbeat Technology

Field of application

  • Measuring principle operates independently of physical fluid properties such as viscosity or density

  • Highest measurement performance for liquids and gases under varying, demanding process conditions.

Device properties

  • Mass flow: measured error ±0.05 % (PremiumCal)

  • Medium temperature: -196 to 350 °C (-320 to 662 °F)

  • Nominal diameter: DN 8 to 250 (3/8 to 10")

  • Remote version with up to 4 I/Os

  • Backlit display with touch control and WLAN access

  • Standard cable between sensor and transmitter
