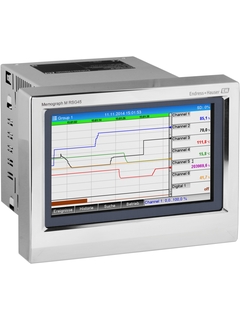

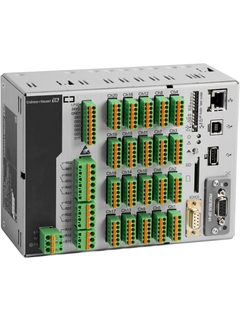

Memograph M RSG45

Saves, visualizes, analyzes and communicates

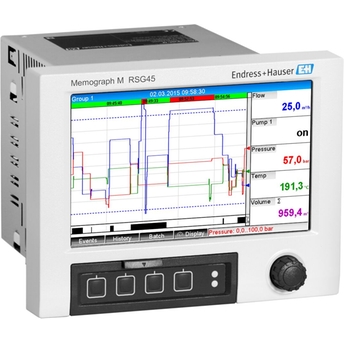

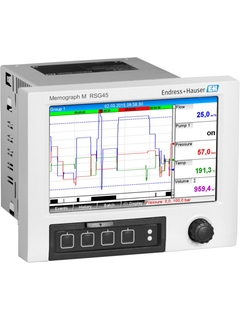

  • Advanced Data Manager Memograph M, RSG45 ©Endress+Hauser
  • Advanced Data Manager Memograph M, RSG45 ©Endress+Hauser

The Advanced Data Manager is a flexible and powerful system for organizing process values. Thanks to its intuitive operation, the Memograph M adapts quickly and easily to every application. The measured process values are clearly presented on the display and logged safely, limits are monitored and analyzed. Via common communication protocols, the measured and calculated values can be easily communicated to higher-level systems and individual plant modules can be interconnected.

Benefits

  • High degree of data security: tamper-proof data storage and personalized access authorization with electronic signature (FDA 21 CFR 11)

  • HART input card: HART sensors directly connected provide accurate process values for calculation and logging

  • HART gateway: time-saving direct access to HART sensors in the field with FieldCare using Memograph M without interrupting the measuring loop

  • Stainless steel front with touch operation: trouble-free operation in demanding environments such as hygienic or hazardous areas

  • System capability: supports common fieldbuses (Modbus, Profibus DP, PROFINET, EtherNet/IP) for fast integration into diverse systems

  • Integrated Web server: remote access to device operation and visualization for lower maintenance costs

  • WebDAV: files saved on SD card transmitted directly to a PC via HTTP without any additional software.

Field of application

The solution for all your tasks. For example, for:

  • Process measuring technology

  • Power stations and energy supply

  • Steam boiler monitoring/efficiency calculation

  • Food and pharmaceutical industry

  • Plant and apparatus engineering and construction; Milk pasteurization plants

  • Environmental and climate measuring technology; Storm overflow control

  • Quality assurance and production

  • Batch analysis; Tele-Alarm functions

  • Testing bays and laboratory applications

Features and specifications

Documents / Manuals / Software

Accessories / Spare parts

Predecessor / Successor

Predecessor: M3, ML, MT, MULCNT, MULEVT, MULRÜB, PRIEVT, Application manager RMM621, Memograph RSG10, Memograph S RSG12, Memograph M RSG40, TL, TN, TP
