Radar measurement

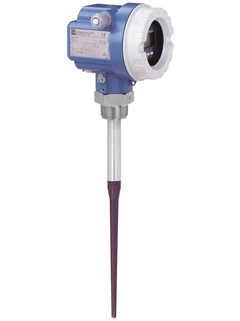

Micropilot FMR231

Particularly suited for the chemical industry and for hazardous locations

  • ©Endress+Hauser

Micropilot FMR231 has its strengths wherever high chemical compatibility is required. Rod antenna with inactive length: Reliable measurement in narrow nozzles, with condensation and build-up in the nozzle. The FMR231 is used for continuous, non-contact level measurement of liquids, pastes, slurries and solids. The measurement is not affected by changing media, temperature changes, gas blankets or vapors.

Benefits

  • Non-contact measurement: Measurement is almost independent from product properties

  • 2-wire technology, low price: A real alternative to differential pressure, floats and displacers.

    2-wire technology reduces wiring costs and allows easy implementation into existing systems

  • Easy commissioning, documentation and diagnostics via Endress+Hauser operating software

  • Easy on-site operation via menu-driven alphanumeric display

  • Used for level monitoring (MIN, MAX) up to SIL2 as per IEC 61508/ IEC 61511-1

  • HART or PROFIBUS PA respectively FOUNDATION Fieldbus protocol

  • Option: Gastight feedthrough to improve the process safety

Field of application

The Micropilot M is used for continuous, non-contact level measurement of liquids, pastes, slurries and solids. The measurement is not affected by changing media, temperature changes, gas blankets or vapors. The FMR231 has its strengths wherever high chemical compatibility is required.

Features and specifications

Documents / Manuals / Software

Accessories / Spare parts

Predecessor / Successor

Predecessor: FMR231A, FMR231E, Micropilot S FMR531

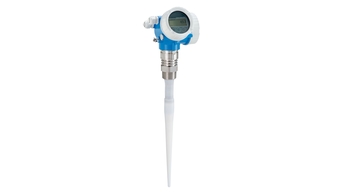

Successor: Micropilot FMR53
