Radar measurement

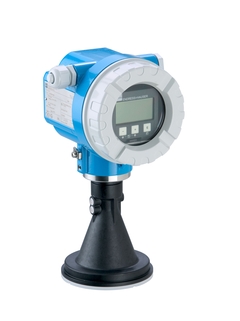

Micropilot FMR244

Optimum price-performance ratio

  • ©Endress+Hauser

The Micropilot FMR244 offers cost-effective 4 to 20mA 2-wire technology and is suitable for hazardous locations. The 80mm horn antenna is used additionally in solids. The FMR244 is used for continuous, non-contact level measurement of liquids, pastes, slurries and solids. The measurement is not affected by changing media, temperature changes, gas blankets or vapors.

Benefits

  • Non-contact measurement: Measurement is almost independent from product properties

  • 2-wire technology, low price: A real alternative to differential pressure, floats and displacers.

    2-wire technology reduces wiring costs and allows easy implementation into existing systems

  • Easy commissioning, documentation and diagnostics via Endress+Hauser operating software

  • Easy on-site operation via menu-driven alphanumeric display

  • Used for level monitoring (MIN, MAX) up to SIL 2 as per IEC 61508/ IEC 61511-1

  • HART or PROFIBUS PA respectively FOUNDATION Fieldbus protocol

  • Option: Gastight feedthrough to improve the process safety

Field of application

The Micropilot M is used for continuous, non-contact level measurement of liquids, pastes, slurries and solids. The measurement is not affected by changing media, temperature changes, gas blankets or vapors. The FMR244 combines the advantages of the horn antenna with high chemical resistance. The 80mm (3") horn antenna is used additionally in solids.
