Radiometric
Level/density measurement

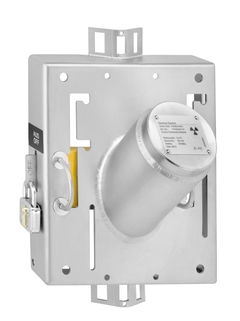

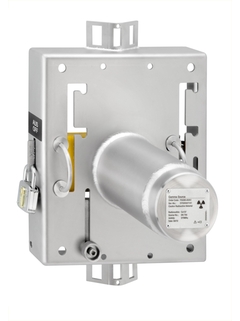

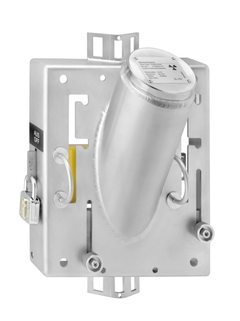

Source Container FQG60

Radiation source container with radiation source insert with manual switch-on and switch-off

  • Source Container FQG60 ©Endress+Hauser
  • Source Container FQG60 ©Endress+Hauser
  • Source Container FQG60 ©Endress+Hauser
  • Radiometric measuring principle

  • Animation source containers

  • Animation Gamma Modulator

The FQG60 source container is designed to hold the radioactive source during radiometric point level detection, continuous level and density measurement. The radiation is emitted almost unattenuated in one direction only, and is damped in all other directions. This guarantees highest safety for the personnel and a reliable measurement.

Benefits

  • High safety level thanks to highest classification for the source supplied (DIN 25426/ISO 2919, typically classification C66646) and safe and easy source replacement

  • Reliable measurement due to small-size, lightweight container which provides optimized screening

  • Compact, easy-to-mount device with the possibility of various angles of emission for optimum adaptation to the application

  • Manual switching on/off and padlock to fix switching positions (on/off), or snap hook to fix switching position; on-switch status easily identified

  • Integrated mounting device for density measurement on pipes

  • Optional: Calibration plate for quick and easy density recalibration

Field of application

Designed to hold the radioactive source during radiometric point level detection, level measurement and density measurement. Radiation is emitted almost unattenuated in one direction only, and is damped in all other directions.

  • Activity: 137Cs to 1.1GBq (30mCi)

  • Temperature: No limitation (non-invasive, extraneous)

  • Pressure: No limitation (non-invasive, extraneous)

Features and specifications

Documents / Manuals / Software

Accessories / Spare parts

Accessories - with links to the online product configurator

Basic device - Clamping device density measurement FHG61
