Tank gauging

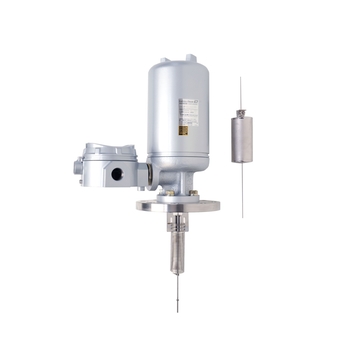

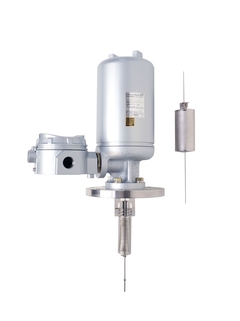

Magnet Level Switch MPC2

Displacement technology level switch

  • Tank gauging - Magnet Level Switch MPC2 ©Endress+Hauser

The MPC2 level switch is a displacement type instrument for installation on a tank. It provides alarm contact output of max. 4 points while activating micro switches with magnet. The switching mechanism is designed to operate these contacts independent of one another. The instruments could therefore emit high and low level alarm alarms.

Benefits

  • Spring type micro switch holders assuring proper operations unaffected by vibration of vessels

  • Multi-point control (4 points maximum) possible with a single product.

  • Resistance to high temperature and high pressure

  • Simple construction featuring stable operation

  • Explosion-proof type is also available

Field of application

  • Ambient temperature: -10 to +60°C (14 to +140°F)

  • Accuracy: ±3mm (± 0.12")
