Vibronic
Point level detection
Liquiphant FTL51

Point level switch with extension tube for liquids in all industries

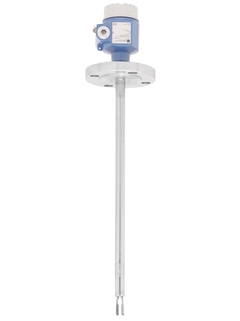

  • Liquiphant FTL51 ©Endress+Hauser

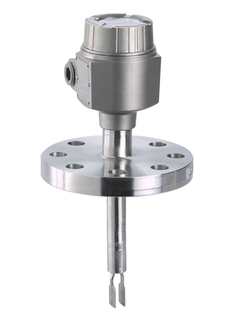

  • Liquiphant FTL51 ©Endress+Hauser
  • Vibronic measuring principle

  • Liquiphant with permanent function check is the safe choice for point level detection in liquids

Liquiphant FTL51 is a point level switch with extension tube for use in hazardous areas with all international certificates. Useable in all industries. FTL51 offers functional safety SIL2/SIL3. With the second line of defense highest degree of safety and availability of the device can be guaranteed. Reliable measurement values, not affected by: changing media properties, flow, turbulences, gas bubbles, foam, vibrations or build-up.

Benefits

  • Use in safety systems requiring functional safety to SIL2/SIL3 in accordance with
    IEC 61508/IEC 61511-1

  • International explosion protection certificates and overfill prevention certificate (WHG)

  • No calibration required, easy to start up

  • No mechanically moving parts: no maintenance, no wear, long operating life.
    Monitoring of fork for damage: guaranteed function

  • Second line of defense to protect the environmental

  • Variety of standardized process connections for all applications

  • Stainless steel (316L) and high-corrosion resistant sensor material (Alloy)

Field of application

Point level switch with extension tube for all liquids.

  • Process connections: Threads, flanges and hygienic process connection (Tri-Clamp)

  • Temperature: -50 to +150°C (-58 to +302°F)

  • Pressure: -1 to +100bar (-14.5 to +1,450psi)

  • Sensor material: 316L, Alloy

  • International explosion protection certificates, overfill prevention WHG, SIL

Features and specifications

Documents / Manuals / Software

Accessories / Spare parts

Predecessor / Successor

Predecessor: CS1103, CS1113, CS1203, CS1213, CS1603, CS1613, FDL30, FDL31, FDL35, FDL36, FTL360, FTL361, FTL365, FTL366, FTL51K

Density measurement of liquids with Density Computer FML621

Measurement of density, reference density, concentration of liquids in conjunction with a Liquiphant. Also for use in hazardous areas with international explosion protection certificates.
