Point level switch
Point level switch with intrinsically safe signal circuit for connection to a capacitance sensor

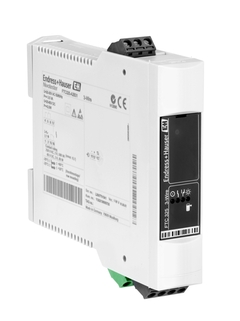

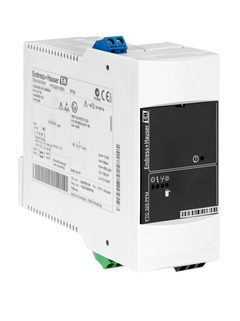

The Nivotester FTC325 is a point level switch with intrinsically safe signal circuit for connection to a capacitance sensor. It has a compact housing for easy series mounting on a standard DIN rail in the cabinet.
Highest safety due to intrinsically safe signal circuit EEx ia IIC
Calibration using operating keys
High functional safety thanks to: FailSafe pulse-frequency modulation (PFM) or 3-wire technology, checkable relay function
Compact housing for easy series mounting on a standard DIN rail in the cabinet
Pluggable terminal blocks make wiring easy
Point level and alarm relay
Field of application
For point level detection in tanks containing liquids and silos containing bulk solids. Also for capacitance level probes, which may be applied in hazardous areas of category ATEX II (1) GD. Overfill prevention for tanks containing flammable or non-flammable fluids hazardous to water and dry running protection for pumps.
Two-point control (Δs with 3-WIRE)
Ambient temperature: -20 to +50°C (-4 to +122°F)
International explosion protection certificates, overfill prevention WHG
