Deltapilot FMB50 - Hydrostatic level measurement

Hydrostatic
Level measurement
Deltapilot FMB50

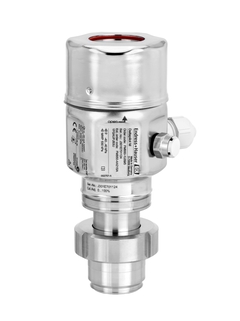

Compact pressure sensor with the Contite measuring cell for hydrostatic level measurement

FMB50

Compare

Specs at a glance

Accuracy

Standard 0.2%
Optional 0.1%
Process temperature

-10°C...100°C
(14°F...212°F)
Pressure measuring range

100 mbar...10 bar
(1.5 psi...150 psi)
Process pressure / max. overpressure limit

40 bar (600 psi)
Main wetted parts

Alloy C
316L
optional coating AuPt
Max. measurement distance

100m (328ft) H2O
Material process membrane

316L, AlloyC
Gold-Rhodium
Measuring cell

100 mbar...10 bar
(1.5 psi...150 psi)

See all specifications

Field of application

The compact Deltapilot FMB50 transmitter with the condensate resistant Contite measuring cell is typically used in the process and hygienic applications.
It is made for level measurement in liquid and paste-like media in open or closed containers and unaffected by possible foam formation. For use in SIL2 safety systems.

For level and/or pressure measurement.

Process connections: Thread, flanges and flush-mounted hygienic connections
Process temperature: –10 to +100°C (14 to 212°F) (+135°C (275°F) for 30 minutes maximum)
Measuring range: 0.1 to 10bar (1.5 to 150psi)
Accuracy: ±0.2%, ±0.1% (option)
International explosion protection certificates, overfill prevention WHG, SIL, hygienic certificates

Benefits

Hermetically sealed Contite measuring cell with condensate-resistance, high reference accuracy: ±0.2%, optionally ±0.1% and minimum temperature effects
Modular concept for easy replacement of display or electronics
Seamless and independent system integration (HART/PA/FF)
Easy menu-guided commissioning via local display, 4 to 20mA with HART, PROFIBUS PA, FOUNDATION Fieldbus
International usage thanks to a wide range of approvals

Videos

Pressure measuring principle

IO-Link communication

IO-Link communication helps to digitalize your plant
- More information

Lean selection

Standard products
Reliable, robust and low-maintenance

Technical excellence

Simplicity

What is FLEX?

Simple products
Easy to select, install and operate

Technical excellence

Simplicity

What is FLEX?

Standard products
Reliable, robust and low-maintenance

Technical excellence

Simplicity

What is FLEX?

High-end products
Highly functional and convenient

Technical excellence

Simplicity

What is FLEX?

Specialized products
Designed for demanding applications

Technical excellence

Simplicity

Variable

What is FLEX?

FLEX selections	Technical excellence	Simplicity
F L E X Fundamental selection Meet your basic measurement needs	Technical excellence	Simplicity
F L E X Lean selection Handle your core processes easily	Technical excellence	Simplicity
F L E X Extended selection Optimize your processes with innovative technologies	Technical excellence	Simplicity
F L E X Xpert selection Master your most challenging applications	Technical excellence	Simplicity Variable

Learn more about the FLEX selections

Loading alternative products

Predecessor

Success stories

Level measurement of silos on construction sites

Discover how Profibaustoffe Austria GmbH automated the monitoring of bulk material inside silos to deliver refills on a "just- in-time" basis.
Read the full story
Time saved, safety increased

Employees of Returkraft regularly have to fulfill and document all requirements of the SIL measuring points in the plant.
Read the full story
Fit for purpose instrumentation for CNG compressors

The Egyptian government is working to replace liquid fuels with natural gas. To achieve this they targeted increasing the number of CNG stations in their country from 306 to 1000 by the end of 2021.
Read the full story
Extend SIL proof test intervals with new Liquiphant FTL51

Discover how our customer CABB was able to extend SIL proof test intervals with the new Liquiphant FTL51
Read the full story
Optimized logistics concept for tank systems

We implemented a highly effective logistics concept at chemicals distributors Brenntag Schweizerhall AG's Basel site.
Read the full story

Filter

Search spare parts by number in drawing

- Show drawing (PDF)

60 spare parts & accessories

Housing filter VA, EPDM, 1 piece

Housing/housing accessories

Drawing number

Order code

19

71111056
Housing filter VA, VMQ, F15, T17, 1 pc.

Housing/housing accessories

Drawing number

Order code

19

71219639
Cover F15 316L, gasket

Cover

Drawing number

Order code

20

52027000
Cover F15 316L, sight glass, gasket

Cover

Drawing number

Order code

20

52027002
Cover F15, sight glass PC, 316L, gasket

Cover

Drawing number

Order code

20

52028207
Cover F15 316L,claw,sight glass,gasket

Cover

Drawing number

Order code

20

52028267
Cover F15 316L, claw, gasket

Cover

Drawing number

Order code

20

52028268
Cover F30/31/34 Alu, gasket

Cover

Drawing number

Order code

20

71092705
Cover F30/31/34 Alu, sight glass, gasket

Cover

Drawing number

Order code

20

71092707
Sealing EPDM, F30/31/34, T14/15, 5 pcs.

Sealing

Drawing number

Order code

21

52020429
Gasket 67.5x2.9x1.5 VMQ/PTFE, 5 pieces

Sealing

Drawing number

Order code

21

52028179
Cable gland M20 PA, o-ring VMQ

Housing/housing accessories

Drawing number

Order code

15

52002449
Plug 3p M12/M20, gasket

Housing/housing accessories

Drawing number

Order code

15

52005984
Plug 2/7-pole, HAN7D, gasket

Housing/housing accessories

Drawing number

Order code

15

52020762
Cable gland M20 PA, O-ring EPDM/PTFE

Housing/housing accessories

Drawing number

Order code

15

71092709
Cable gland M20 Metal, gasket

Housing/housing accessories

Drawing number

Order code

15

71092711
Cable entry G1/2, gasket, adapter

Housing/housing accessories

Drawing number

Order code

15

71092712
Plug valve, F30/F31, seal NBR

Housing/housing accessories

Drawing number

Order code

15

71120017
Ground terminal T14/T15/T17, F30/F31

further parts

Order code

71290825
Display module VU340, Cbar/Dbar/Dpilot M

Display

Drawing number

Order code

40

71091670
Electronics FMB5x, PMC51, PMP5x, PMD55

Electronic

Drawing number

Order code

30

XPP0001-
Holder Display Dbar/Cbar/Dpilot M

Display

Drawing number

Order code

41

71094113
Profile gasket silicone, 5 pieces

Sealing

Drawing number

Order code

65

52023572
Profile gasket EPDM, 5 pieces

Sealing

Drawing number

Order code

65

71100719
EPDM O-ring+316L backring, EHEDG,1 piece

Sealing

Drawing number

Order code

65

71431380
EPDM O-ring, EHEDG, 5 pieces

Sealing

Drawing number

Order code

65

71545801
Modification name plate, non Ex

further parts

Order code

71067434
Flat seal 50x65x1 PTFE, FDA, 5 pieces

further parts

Order code

52024228
Cable PE,80inch,sep. housing FMXXX/PMXXX

further parts

Order code

71043886
Cable PE,200inch,sep.housing FMXXX/PMXXX

further parts

Order code

71043888
Cable PE,400inch,sep.housing FMXXX/PMXXX

further parts

Order code

71043889
Cable FEP,200inch,sep.housingFMXXX/PMXXX

further parts

Order code

71070738
Mountingset Cerabar,Deltapilot,Levelflex

Order code

71102216
Adapter UNI, DIN11851 DN40, 316L

Order code

71114172
Adapter UNI, DIN11851 DN50, 316L

Order code

71114173
Adapter UNI, DRD DN50, 65mm, 316L

Order code

71114174
Adapter UNI, Clamp 2", 316L

Order code

71114176
Adapter Univ-/Variv N DN40-162 316L

Order code

71114177
Adapter UNI, DIN11851 DN40, 316L, 3.1

Order code

71114178
Adapter UNI, DIN11851 DN50, 316L, 3.1

Order code

71114205
Adapter UNI, DRD DN50, 65mm, 316L, 3.1

Order code

71114206
Adapter UNI, Clamp 2", 316L, 3.1

Order code

71114207
Adapter Univ-/Variv N DN40 316L 3.1

Order code

71114208
Adapter Uni, Clamp 3", 316L

Order code

71350315
Weld-in adapter UNI D65, 316L

Order code

214880-0002
Weld-in adapter UNI D85, 316L

Order code

52006262
Weld-in adapter UNI D85, 316L, 3.1

Order code

52010173
Weld-in adapter UNI D65, 316L, 3.1

Order code

52010174
Weld-in adapter G1-1/2, 316L

Order code

52024469
