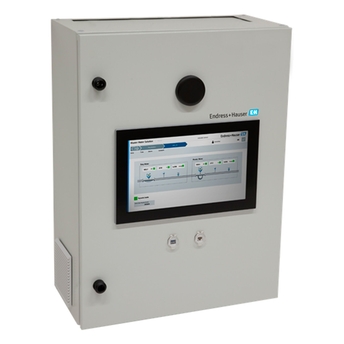

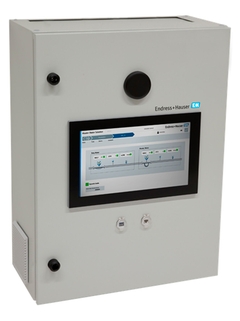

Master meter control system DSK1MM
-
-
Product headline
Purpose built control system complete with support for up to two master meter runs.
-
Solution Features
The master meter control system has an intuitive self-guided wizard to simplify the proving settings.
-
Ambient temperature range
–10 to +55 °C (+14 to +131 °F)
-
Sensor housing material
Control panel housing material:
Stainless steel
Sheet steel painted
Anodized aluminum
-
Degree of protection
IP66/67, type 4x enclosure (with hazardous area approvals)
IP54 non-hazardous area
-
Display/Operation
15.6 capacitive touch LCD display
-
Outputs
4 x Digital output (alarms, warning, error)
-
Inputs
6 x 4-20 mA (active/passive)
4 x Pulse/frequency (active/passive)
2 x RS485 MODBUS serial
-
-
Power supply
Input: AC 100 to 230 V
Output: DC 24 V
-
Hazardous area approvals
ATEX, IECEx, QPS C/US, CCC, INMETRO, EAC, UK Ex
-
1 documents
-
High-precision measurement in custody transfer applications thanks to
regular proving with the Master Meter System from Endress+Haus
er
|
Language:
|
English
|
|
Version:
|
04/04/2022
|
|
File size:
|
8.7 MB
|
|
File name:
|
BA02244DEN_0122-00.pdf
|
