Specs at a glance
-
Accuracy
+/- 1 mm, custody transfer
-
Process temperature
-40 °C ... 150 °C
(-40 °F ... 302 °F) -
Process pressure / max. overpressure limit
Vacuum ... 25 bar
(Vaccum ... 362 psi) -
Max. measurement distance
40 m (131 ft)
-
Main wetted parts
316L + PTFE
Field of application

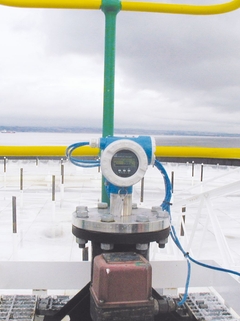

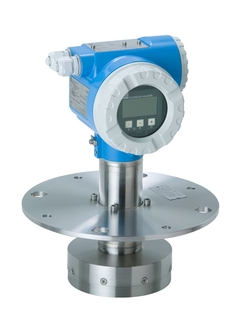

The Micropilot FMR532 is used for custody transfer and inventory control applications with NMi- and PTB-approvals. It meets the relevant requirements according to OIML R85 and API 3.1B. The FMR532 free space radar with planar antenna is specifically suited for stilling well applications. Micropilot FMR532 offers cost-effective and simple installation via 4-wire cable with HART and 24 V DC intrinsically safe power supply.
With planar antenna particularly suited for stilling well applications with ranges
up to 38m (124ft).
Process connection: Flange
Temperature: -40 to +150°C (-40 to +302°F)
Pressure: Vacuum to +25bar (Vacuum to +362psi)
Maximum measuring range: 38m (124ft)
Accuracy: Better than ±1mm
C-band: 6GHz
International explosion protection and custody transfer certificates, overfill prevention WHG, SIL, marine approval
Benefits
0.8mm accuracy (2σ value)
National approvals (NMi, PTB) for custody transfer
Applicable as stand-alone system or integrated into tank gauging systems via the Tank Side Monitor NRF590
Easy on-site operation via menu-driven alphanumeric display
Easy commissioning, documentation and diagnostics via FDT/DTM technology (FieldCare)
Cost-effective and simple installation via 4-wire cable with HART and 24 V DC intrinsically safe power supply
Unique drip-off antenna design eliminates measurement error due to condensation build-up
