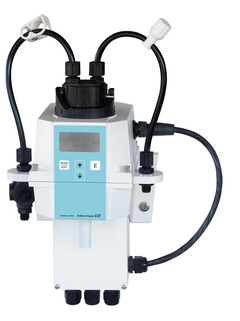

Online turbidity meter Turbimax CUE22

Online turbidity meter Turbimax CUE22 ©Endress+Hauser
Online turbidity meter Turbimax CUE22 ©Endress+Hauser
  • Online turbidity meter Turbimax CUE22
  • Online turbidity meter Turbimax CUE22

Compact system with sample condition adjustment for drinking and process water applications

Turbimax CUE22 is a reliable turbidity meter for continuous measurement compliant to US EPA 180.1. Operation is simple: connect the water, adjust the settings and the system runs unattended. Turbimax CUE22 provides guided calibration according to predefined standards, helping to streamline maintenance. Its automatic ultrasonic cleaning function extends service intervals offering significant savings in operational expenditure.

  • Simple products

  • Easy to select, install and operate

Technical excellence

Simplicity

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity

  • Specialized products

  • Designed for demanding applications

Technical excellence

Simplicity

Variable

FLEX selections Technical excellence Simplicity
  • F
  • L
  • E
  • X

Fundamental selection

Meet your basic measurement needs

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Lean selection

Handle your core processes easily

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Extended selection

Optimize your processes with innovative technologies

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Xpert selection

Master your most challenging applications

Technical excellence
Simplicity

Variable

Quick selection

Choose from our suggested options
Sales price
    -- selected coding
    -- selected label
    99.999,00
    <%label%>
    -- selected coding
    -- selected label
    99.999,00
    <%feature%>
  • Process Connection
      <%label%>
      99.999,00
      <%label%>
      99.999,00

  • <%message%>

CUE22
Show details Hide details
Show details
Back to Quick Selection
  • <%feature%>
    <%coding%>
    <%label%>
pc
Loading price
Prices temporarily unavailable
from CHF 803.-
  • Optional add-ons
Please use the individual configurator to continue
or

Individual configuration

Continue your selection from all possible options

  • Benefits

    • Long service intervals to save on operational costs

    • Fast and easy calibration, verification within seconds

    • Low volume of flow-through cuvette speeds up response time

    • Automatic ultrasonic cleaning function reduces maintenance effort

    • Sample condition...

  • Field of application

    Turbimax CUE22 is an online turbidity meter for:

    • Drinking and process water:
      - Process monitoring
      - Filter monitoring and filter backwash in water works
      - Water quality monitoring in water works and distribution networks

    • Utilities of all...

Features and specifications

Back

Details

  • Measuring principle

    Single beam scattered light

  • Application

    Online continuous monitoring of clean water :
    - Drinking water
    - Treated process water

  • Installation

    Compact device for bypass-installations.

  • Characteristic

    " Versions with white light source
    " Fast and easy calibration
    " Complete primary calibration in less than 5 minutes
    " Verification in seconds
    " Reduced calibration costs and quick response times thanks to low volume sample chamber
    " Automatic continuous ultrasonic cleaning (Autoclean)increases cleaning intervals dramatically
    " Simple modular design
    " Easy to use and service
    " Affordable thanks to modular microprocessor based technology
    " Digital high-speed connections through RS-485 with Modbus
    Optional Features:
    " Flow chamber for bubble suppression
    " Reusable calibration kit

  • Measurement range

    0 - 100 NTU

  • Measuring principle

    Turbidity measurement using standardised 90° scattered light method acc. to U.S.EPA180.1 (White Light)

  • Design

    The transmitted white light beam is scattered by the solid matter particles in the medium. The scattered light beams are detected by scattered light receivers which are arranged at an angle of 90° to the white light source.

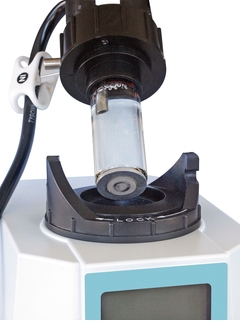

  • Material

    Housing: ABS
    Flow-through head: Nylon
    Sample cuvette: Borosilicate glass
    Sample cuvette seal: Silicone
    Flow-through fittings: Polypropylene
    Flow-through lock down pins: Stainless steel (AISI 304 or AISI 303)
    Inlet tube: Stainless steel (AISI 316)

  • Dimension

    347,16 x 207,65 x 196,85 mm
    (13.66 x 8.17 x 7.75 inches)

  • Process temperature

    1°C - 50°C
    (34 - 122°F)

  • Process pressure

    max. 13.78 bar / 200 psicontrolled by integral pressure regulator

  • Ingres protection

    IP66

  • Output / communication

    4-20mA, galvanic isolated
    Bi-directional RS-485, Modbus optional.

Documents / Manuals / Software

Accessories / Spare parts

Nr
Order code
Specification
    • Order code 71030104

      Electronical service module CUE22

      Light source: White light Measuring range: 0 - 100 NTU Spare part turbidity measurement

    • Order code 71030105

      Field terminal box CUE21/CUE22

      Supply voltage: 100-240 VAC Spare part turbidity measurement

    • Order code 51518578

      Desiccant CUE21/CUE22

      Refill pack Accessory turbidity measurement

    • Order code 51518579

      Tubing kit CUE21/CUE22

      Accessory turbidity measurement

    • Order code 51518576

      Ultrasonic Cuvette CUE21/CUE22

      Accessory turbidity measurement

    • Order code 71030102

      Calibration kit CUE22

      Ready for use solutions: 0,02 NTU, 10 NTU and 100 NTU. Accessory turbidity measurement

    • Order code 51518575

      Flow chamber CUE21/CUE22

      for bubble suppression Accessory turbidity measurement

    • Order code 71085512

      Pressure Regulator for CUE21/22

    • Order code 71267830

      Kit CUE21/22: O-rings

    • Order code 71267825

      Kit CUE21/22: Flow Head Assembly

Success stories

  • Water treatment plant in Belfort in France Water treatment plant in Belfort in France

    Drinking water analysis panel at Grand Belfort in France

    Monitoring of all relevant parameters for drinking water with the drinking water analysis panel

  • Monitoring of boiler water in cheese production with the SWAS Compact panel Monitoring of boiler water in cheese production with the SWAS Compact panel

    Boiler water monitoring made easy

    With the SWAS Compact Panel, the continuous monitoring of quality parameters such as pH and conductivity in cheese production can be automated and simplified.

  • Continuous monitoring of drinking water made easy Continuous monitoring of drinking water made easy

    The all-round carefree panel

    Water Analysis Panels make continuous monitoring of drinking water easy at the water treatment plant in Frasnacht, Switzerland.

  • real-time monitoring of critical parameters in fermentation processes real-time monitoring of critical parameters in fermentation processes

    Advanced bioprocess control

    From time consuming sample analysis to real-time monitoring of critical parameters in fermentation processes thanks to complete solutions from hardware to development and analytical services.

  • Baltic Sea water used as cooling water in the power station Baltic Sea water used as cooling water in the power station

    Cooling water directly from the Baltic Sea

    With the CUS52D, power plant operator KNG benefits from reduced maintenance costs due to reliable, stable measurement even under harsh conditions in salt water.
