Monitoring and controlling

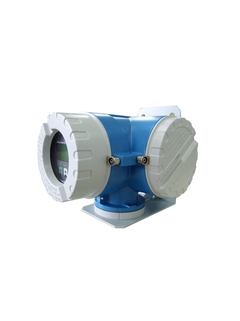

Promonitor NRF560

For tank side monitoring and controlling of Proservo NMS5 intelligent tank gauge

The Promonitor NRF560 is a monitoring unit for use with the Proservo series of tank gauges. Mounted at the tank side or up to 1,200 meters away (local HART connection). Promonitor provides indication of measured level, temperature data and operating status, and can send operating commands to the Proservo NMS5 from a convenient location.

Sizing
Pricing after login and configuration

Compare

Quick selection

Choose from our suggested options

<%label%>
-- selected coding

-- selected label
<%label%>
Looking for more options? Please use the individual configurator to continue
<%feature%>
-- selected coding

-- selected label
<%feature%>
<%coding%>

<%label%>

Looking for more options? Please use the individual configuratorto continue
Process Connection
<%coding%>

<%label%>

<%coding%>

<%label%>

<%message%>

Optional add-ons

Please use the individual configurator to continue

Individual configuration

Continue your selection from all possible options

Configure

Benefits
Remote monitoring and control for Proservo tank gauge
Indication via two line illuminated display
Operation via 3 optical keys (touch control)
Programming matrix
Protection class IP 67 housing
Explosion proof for hazardous area mounting

Field of application
For monitoring and controlling of Proservo NMS5.

Temperature: -20 to +60°C (-4 to +140°F)

International explosion protection certificates

Features and specifications

Back

Details

Measuring principle

Level radar
Characteristic / Application

Convenient Remote Indicator and Operation panel
Supply / Communication

85-264 VAC
20-55 VAC/20-62 VDC
Ambient temperature

Standard:
-20 °C ... 60 °C
(-4 °F ... 140 °F)
Optional:
-40 °C ... 60 °C
(-40 °F ... 140 °F)
Communication

digital HART
Certificates / Approvals

ATEX, FM, CSA, IEC Ex, TIIS, NEPSI

Show more
Show less

Documents / Manuals / Software

Download type

Filter

Promonitor NRF560 - Technical Information
For tank side monitoring and controlling of Proservo NMS5
intelligent tank gauge

Technical Information (TI)
Tank side monitor For tank side monitoring and controlling of Proservo NMS 5 intelligent tank gauge
Remote monitoring and control for Proservo tank gauge
Indication via two line illuminated display
Operation via 3 optical keys (touch control) and Endress+Hauser user
friendly
Programming matrix
Protection class IP 67 housing
Explosion proof forhazardous area mounting

Technical Information (TI)
Promonitor NRF560 - Operating Instructions
The Promonitor NRF 560 is a tank side monitor and control station for
the Proservo NMS5 of intelligent tank gauges.

Operating Instruction (BA)
Proservo NMS 53x Operating Instructions
High accuracy servo level gauge based on the principle of displacement
measurement

Operating Instruction (BA)
Tank side monitor For tank side monitoring/controlling of Proservo NMS5 intelligent tank gauge
The Promonitor NRF 560 is a tank side monitor and control station for
the Proservo NMS5 of intelligent tank gauges. The NRF560 isa simple
low-cost tank site monitor for displaying interface level, tank bottom
level, and teperature.

Operating Instruction (BA)
Promonitor NRF560 Operating Instructions
Tank side monitor for integration and communication with Proservo and
Prothermo

Operating Instruction (BA)
Safety Instruction Promonitor NRF560
Safety instructions for Electrical Apparatus Certified for Use in
Explosion-hazardous Areas

Ex Safety Instructions (XA)
Safety Instructions for Promonitor NRF 560 ZELM 03 ATEX 0154 X
Safety instructions for electrical apparatus certified for use in
explosion-hazardous areas

Ex Safety Instructions (XA)
Safety Instructions for Promonitor NRF 560 IECEx ZLM 11.0010X
Safety instructions for electrical apparatus certified for use in
explosion-hazardous areas

Ex Safety Instructions (XA)
Tank Gauging
Система коммерческого и оперативного учета продуктов
в резервуарных парках.

Competence Brochure (CP)

07/15

Russian
NRF560 - Picture
Tank Gauge


06/12

Language neutral
SYSTEM
Product Code: NRF560-
Declaration Number: HE_00268_02.16
Manufacturer Specification: Explosion protection, EMC

Manufacturer Declaration

English
SYSTEM
Product Code: NRF560-
Declaration Number: HE_00268_01.16
Manufacturer Specification: Explosion protection, EMC

Manufacturer Declaration

English
SYSTEM
Product Code: NRF560-
Declaration Number: EC_00213_01.16

EU Declaration

English
SYSTEM
Product Code: NRF560-
Declaration Number: EC_00537_01.17

EU Declaration

German , English , fr
SYSTEM
Product Code: NRF560-, NRF590-, NRF81-
Region/Country: Russia (Declaration of Conformity), Russia (TR CU)
Approval Agency: EAC
Approval Number: RU D-DE.MO10.B.05291

Miscellaneous

Russian
SYSTEM
Product Code: NRF560-, NRF590-
Region/Country: Russia (TR CU)
Approval Agency: EAC
Approval Number: TC BY_112 11.01. TP004 003 140

Miscellaneous

Russian
SYSTEM
Product Code: NRF560-
Region/Country: China
Approval Agency: NEPSI

Explosion Protection

English
System&Gauging
Product Code: NRF560-
Region/Country: USA
Approval Agency: FM
Category: I1ABCDT4
Protection: II, III1EFGT4NEMA4X

Explosion Protection

English
SYSTEM
Product Code: NRF560-
Region/Country: India
Approval Agency: CC(O)E

Explosion Protection

English
System&Gauging
Product Code: NRF560-
Approval Agency: TIIS
Protection: Ex d IIB T4

Explosion Protection

Japanese
System&Gauging
Product Code: NRF560-
Approval Agency: TIIS
Protection: Ex d IIB T4

Explosion Protection

Japanese
System&Gauging
Product Code: NRF560-
Approval Agency: ZelmEx

Explosion Protection

English
System&Gauging
Product Code: NRF560-
Approval Agency: FM

Explosion Protection

English
SYSTEM
Product Code: NRF560-, NRF590-
Region/Country: Russia
Approval Agency: EAC

Explosion Protection

Russian
System&Gauging
Product Code: NRF560-
Region/Country: USA, Canada
Approval Agency: CSA
Category: I, A, B, C AND D; II, E, F AND G; III; 4

Explosion Protection

English
System&Gauging
Product Code: NRF560-
Approval Agency: TIIS
Protection: Ex d IIB T4

Explosion Protection

Japanese
System&Gauging
Product Code: NRF560-
Approval Agency: ZelmEx
Protection: Ex d IIC T4 Gb

Explosion Protection

English
System&Gauging
Product Code: NRF560-
Approval Agency: ZelmEx
Protection: II 2G Ex d IIC T4

Explosion Protection

English
System&Gauging
Product Code: NRF560-
Approval Agency: ZelmEx

Explosion Protection

English
SYSTEM
Product Code: NRF560-, NRF590-
Region/Country: Russia (TR CU)
Approval Agency: EAC
Protection: Ex d, Ex d e, Ex d [ia Ga]

Explosion Protection

Russian
System&Gauging
Product Code: NRF560-
Region/Country: Europe
Approval Agency: BVS
Category: EX
Protection: EEx d IIC T4 resp. EEx de IIC T4, EEx d IIC T4 resp. EEx de IIC

Explosion Protection

German , English
Micropilot S, Sakura, System&Gauging
Product Code: NMT535-, NMT532-, NMT536-, NRF560-, NRF561-, NRM570-, FMR530-, FMR531-, FMR532-, FMR533-, NMS531-, NMS536-, NMS535-, NMS534-, NMS532-
Region/Country: Indonesia
Approval Agency: MIGAS
Approval Number: MIGAS

Metrology

English
SYSTEM, Tankvision
Product Code: NMS5-, NMS7-, NMT532-, NMT539-, NRF560-, NXA820-, NXA821-, NXA822-
Region/Country: Bulgaria
Approval Agency: BIM (Bulgarian Institude of Metrology)
Approval Number: 12.04.4968

Metrology

Bulgarian
System&Gauging
Product Code: NRF560-
Region/Country: Europe
Approval Agency: NMI
Approval Number: NMI_OIML_R85_1998-NL-00.03

Metrology

English , Japanese , Dutch
Sakura, System&Gauging
Product Code: NRF560-
Approval Agency: PTB
Approval Number: 4.461 97.06

Metrology

German
System&Gauging
Product Code: NRF561-, NRF560-
Region/Country: Europe
Approval Agency: PTB
Approval Number: PTB 4.461 97.06

Metrology

German , English , Japanese
Sakura, System&Gauging
Product Code: NRF560-
Approval Agency: OIML
Approval Number: R85/2008-NL1-10.01

Metrology

English
Sakura, SYSTEM
Product Code: NMS530-, NRF560-
Region/Country: International, Japan
Approval Agency: NMI
Approval Number: NMI_T7307_REV6

Metrology

English
System&Gauging
Product Code: NRF560-
Region/Country: Europe
Approval Agency: NMI
Approval Number: NMI T2989

Metrology

English , Japanese , Dutch

Show more
Show less

Accessories / Spare parts

???Show as Pdf???

Filter

Order code

Specification

11
- Nr 11 Order code 017803-0030

  O-ring, display cover, HNBR

  Size: D113.90mm, d3.53mm. Material: HNBR. Part: terminal/elec. compartment. Part: NMS/NRF display. Part: NRF/NRR/NAB terminal. Usage:NMS5/NMS7, NRF560, NRR261, NAB560.

  Show details Show less
16
- Nr 16 Order code 56004435

  Set NRF screw part

  5x locking clamp, 5x screw. Usage: NRF560.

  Show details Show less
21
- Nr 21 Order code 017800-0111

  Cover, display module, Aluminium

  Display window cover. Color: E+H gray. Material: aluminium casting. Usage: NMS5/NMS7, NRF560.

  Show details Show less
- Nr 21 Order code 017801-0133

  Cover, terminal box, Alu, NRF

  Terminal box cover. Color: E+H gray. Material: aluminium casting. Usage: NRF560, NRR261.

  Show details Show less
31
- Nr 31 Order code 70103940

  POW-6, HV, non Ex i

  Power module AC85-264V. Non EExia. Usage: NMS5/NMS7, NRF560.

  Show details Show less
- Nr 31 Order code 70103941

  POW-6, LV, non Ex i

  Power, DC20-60V,AC20-55V for non EExia. Usage: NMS5/NMS7, NRF560.

  Show details Show less
32
- Nr 32 Order code 017801-0001

  Comm. board FCB1 v1.92, 2 line disp.

  Usage: NRF560.

  Show details Show less
- Nr 32 Order code 70109104

  Comm. board FCB-1 v1.94 graphic disp.

  Usage: NRF560.

  Show details Show less
33
- Nr 33 Order code 017801-0105

  Fuse 250VAC T2A50, 10 pcs.

  Usage: NRF560.

  Show details Show less
- Nr 33 Order code 017801-0107

  Fuse cover, 10 pcs.

  Usage: NRF560.

  Show details Show less
34
- Nr 34 Order code 017801-0030

  Terminal board (Exd)

  Usage: NRF560.

  Show details Show less
35
- Nr 35 Order code 017801-0020

  Filter board 85...260VAC

  Usage: NRF560.

  Show details Show less
36
- Nr 36 Order code 71070911

  Chassis+EMC filter cover, NRF560

  Chassis, 2x screw, 2x display screw. EMC filter cover, stud, screw,washew. Usage: NRF560.

  Show details Show less
41
- Nr 41 Order code 70103938

  Display module 4line, 3key optical

  4-line graphic type. NMS5/NMS7: later or equal softwareV4.27. NRF560: later or equal software V1.94. Usage: NMS5/NMS7, NRF560.

  Show details Show less
70
- Nr 70 Order code 017801-0111

  Assembly bracket 90deg, SS400, NRF560

  4x nut, 4x washer.

  Show details Show less

Show more
Show less

Predecessor
- DRM9700

Monitoring and controllingPromonitor NRF560
