Bunker Metering Computer SBC600

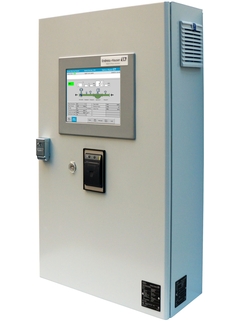

Bunker Metering Computer SBC600 providing accuracy and efficiency in bunkering © Endress+Hauser

Bunker Metering Computer SBC600

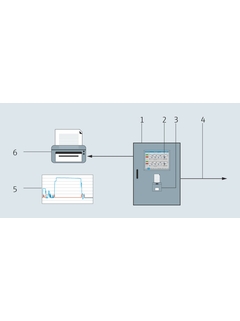

System design: Bunker Metering Computer SBC600 © Endress+Hauser

System design: Bunker Metering Computer
1 Control unit, operating terminal
2 - 3 Integrated 12” operating panel, touch screen, printer
4 Modbus TCP
5 Metering profile
6 External printer (optional)

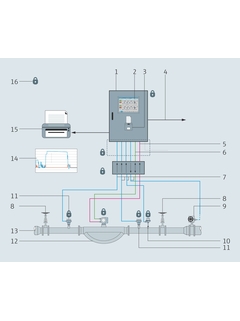

System design: Bunker Metering System © Endress+Hauser

System design: Bunker Metering System
1 - 6 Bunker Metering Computer SBC600
7 4 to 20 mA
8 Isolation valve
9 Control valve
10 Temperature
11 Pressure
12 Flow

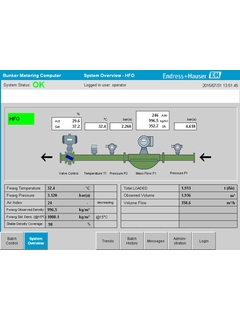

System overview Bunker Metering Computer: Integrated human-machine interface (HMI) © Endress+Hauser

System overview Bunker Metering Computer: Integrated human-machine interface (HMI)

Providing accuracy and efficiency in bunkering

The Bunker Metering Computer SBC600 collects, visualizes and stores bunkering data from all involved devices. Out of that data the Bunker Metering Computer will create batch tickets and metering profiles. The measuring system immediately reports irregularities during bunkering, making it possible to intervene quickly.

The Bunker Metering Computer SBC600 is an integral part of the complete Bunker Metering Solution delivered by Endress+Hauser.

  • Simple products

  • Easy to select, install and operate

Technical excellence

Simplicity

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity

  • Specialized products

  • Designed for demanding applications

Technical excellence

Simplicity

Variable

FLEX selections Technical excellence Simplicity
  • F
  • L
  • E
  • X

Fundamental selection

Meet your basic measurement needs

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Lean selection

Handle your core processes easily

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Extended selection

Optimize your processes with innovative technologies

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Xpert selection

Master your most challenging applications

Technical excellence
Simplicity

Variable

Quick selection

Choose from our suggested options
Sales price
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

or

Individual configuration

Continue your selection from all possible options
  • Benefits

    • Continuous bi-directional mass flow measurement using Coriolis flowmeters from Endress+Hauser.

    • Patent dual phase flow measurement for maximum on accuracy even under severe conditions like tank stripping and maximum on application safety and measurement...

  • Field of application

    The intuitive operator interface ensures optimal control over the entire fueling process and safe operation due to immediate visualization of error messages. The Bunker Metering Computer SBC600 guarantees maximum operating convenience. This means less...
