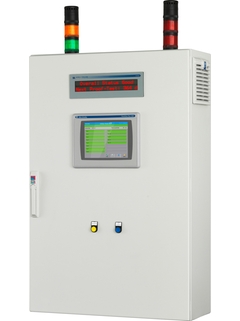

Overfill Prevention System SOP600 Cabinet

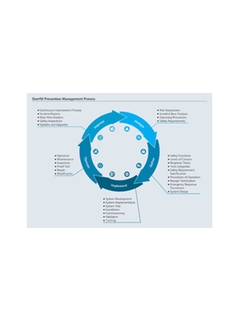

Overfill Prevention Management Process

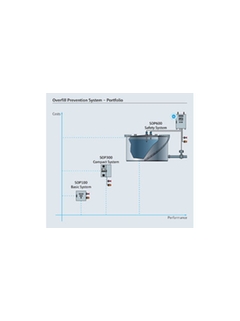

Overfill Prevention System Portfolio

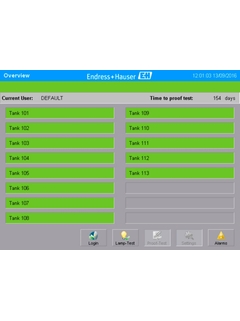

Overfill Prevention System SOP600 Overview Screen

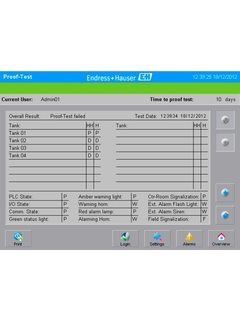

Overfill Prevention System SOP600 Proof Test Screen

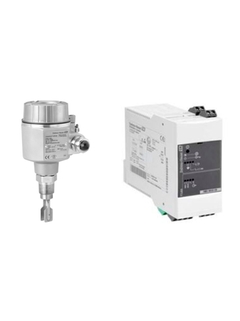

Liquiphant FTL8x and Nivotester FTL825 for SOP600 Overfill Prevention System
Field of application
The Overfill Prevention System SOP 600 complies with API2350 and WHG and is type-certified up to SIL3 according to IEC 61511. It works as automatic or manual system, can detect signals for overflow, pump protection and leakage in the base of the tank and issue alarms. If limit values are violated or leaks detected, the system activates signaling elements and shows messages on a display. The system is designed for up to 16 tanks and has an automated proof-test sequence. Reports can be exported.
The Overfill Prevention System SOP600 has been designed as a safety function to monitor High-High Levels in tanks (1 to 16). The function is only guaranteed with appropriate Endress+Hauser point level switches (Liquiphant FTL5x, 7x or 8x – depending on the safety level). The Overfill Prevention System SOP600 must be installed in a safe environment (not in danger zones or Ex zones). It is advisable to install the Overfill Prevention System SOP600 in a dry, air-conditioned room.
Benefits
Solution with fully independent SIL2/SIL3 certification for maximum trust and reliability. Certification is performed by independent safety inspectors with operations worldwide.
Safe investment as the solution is modular, scalable and extensible.
Integrated automated proof testing shortens the time for commissioning and maintenance.
Detailed warnings and tank overfill alarms help users to make quick decisions and take immediate action.
Seamless integration into monitoring systems for remote monitoring via standard interfaces such as EtherNet/IP or Modbus TCP.
Traceability and transparency with automatic event and user intervention log.
Reduced engineering and commissioning time and lower maintenance costs.
-
-
further parts
SOP600 Safety CPU
Order code71348096 -
-
-
further parts
SOP600 CompactLogix Ethernet/IP
Order code71348100 -
-
-
further parts
SOP600 POINT IO Ethernet/IP
Order code71348101 -
-
-
further parts
SOP600 POINT IO Safety Digital Input
Order code71348103 -
-
-
further parts
SOP600 POINT IO Safety Digital Output
Order code71348104 -
-
-
further parts
SOP600 Guardmaster Safety Relay SI
Order code71348105 -
-
-
further parts
SOP600 PanelView Plus 6 CE
Order code71348106 -
-
-
further parts
SOP600 InView Message Display
Order code71348107 -
-
-
further parts
SOP600 Aux. Safety Relay
Order code71348108 -
-
-
further parts
Alarm strobe (SIL)
Order code71348777 -
-
-
further parts
Alarm siren (SIL)
Order code71348778 -
