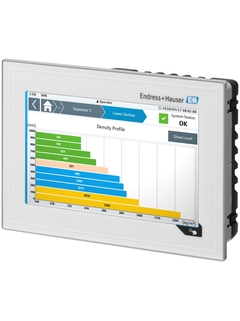

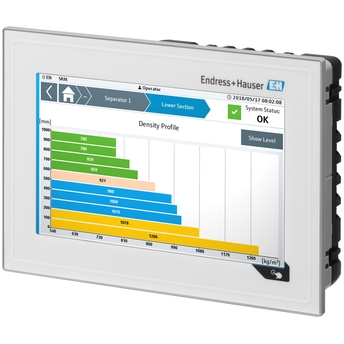

Profile Vision Compact SPV350
Interface and density profile measurement in separation vessels
Profile Vision Compact gives users a detailed insight into their separation processes. It is the perfect solution for full monitoring of interfaces and emulsion layers of different density. With this system, continuous density profiles and interface levels can be visualized easily and clearly. The results can be implemented quickly into a DCS for further process optimization and application control.
This product is not available in this market.
Precise process information thanks to continuous interface and density profile measurement over the entire measuring range
Reliable monitoring of up to 5 separation vessels with multiple sections
Flexible adaptation of media characteristic values to...
Field of application
Profile Vision Compact calculate and monitore interface and emulsion layers with different densities in a separation tank. Typical applications for Profile Vision Compact are any type of vessel where two or more media are separated due to gravity like...
Documents / Manuals / Software
Accessories / Spare parts
Order code 71413801
7" touch display
Order code 71413802
Gateway (SiteManager Ethernet & 3G)
Order code 71414438
Controller assembly (Standard)
Order code 71414439
Remote IO assembly (12x 4...20mA input)
Order code 71414458
PROFIBUS DP Master interface module
Order code 71414460
4-20mA HART input module; 2 inputs
