Prosonic Flow Clamp On 90U

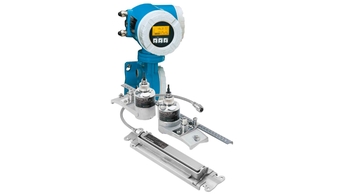

Product picture of: Prosonic Flow Clamp On 90U

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

Features and specifications

Back

Details

  • Measuring principle

    Ultrasonic flow

  • Product headline

    Flow volume measurement from outside for standard applications with small pipe sizes.

  • Sensor features

    Validation
    Quick Set-Up
    2 Totalizers
    Sonic speed output

  • Nominal diameter range

    DN 15...100
    1/2"...4"

  • Max. measurement error

    +/-2.0 %

  • Measuring range

    0...424 m3/h

  • Max. process pressure

    No limit

  • Medium temperature range

    -20...+80°C / -4...+176°F

  • Degree of protection

    IP67
    NEMA 4x

  • Display/Operation

    Two line backlit
    Push buttons

  • Outputs

    4...20mA
    Pulse/Frequency/Status

  • Inputs

    Status

  • Digital communication

    HART
    PROFIBUS PA

  • Hazardous area approvals

    FM
    CSA
