Prosonic Flow Clamp On 92TA1

Product picture of: Prosonic Flow Clamp On 92TA1

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

Features and specifications

Back

Details

  • Measuring principle

    Ultrasonic flow

  • Product headline

    Portable volume flow measurement of liquidsfrom outside with "Clamp On" sensors.

  • Sensor features

    Memory for storing 20 measuring sites
    Data logger for 40 000 values
    PC software for data read-out

  • Nominal diameter range

    U-Sensor:
    - DN 15...100
    - 1/2"...4"
    W-Sensor:
    - DN 50...4000
    - 2"...160"
    P-Sensor:
    - DN 50...300
    - 2"...12"

  • Max. measurement error

    +/-2.0 %

  • Measuring range

    U-Sensor: 0...424 m3/h
    W-Sensor: 0...678'550 m3/h
    P-Sensor: 0...678'550 m3/h

  • Max. process pressure

    No limit

  • Medium temperature range

    DN15...4000
    -20...+80°C
    (-4...+176°F)
    DN50...300
    -0...+170°C
    (32...+338°F)

  • Degree of protection

    IP 50

  • Display/Operation

    Large graphic display.
    Push button keyboard.

  • Outputs

    4...20mA

  • Inputs

    4...20mA

  • Digital communication

    PC-Serial (RS 232)

Documents / Manuals / Software

Accessories / Spare parts

Nr
Order code
Specification

  • Successor

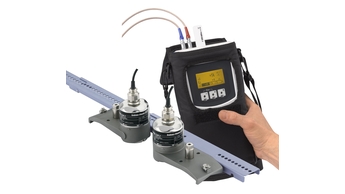

    • Picture of ultrasonic flowmeter Proline Prosonic Flow 93T for monitoring and test measurements

      Prosonic Flow Clamp On 93TA1

      The economical flowmeter for easy data transfer via USB stick without additional software. Temporary and precise measurement for a wide range of pipe materials and liquids.

      Loading price
      Prices temporarily unavailable
      from CHF 803.-
