Name: Dipfit W CYA611
Brand: Endress+Hauser
Availability: InStock

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

Immersion assembly.
Sensor: CUS31/41/65, COS31/41/51D/61/71,
CPF81/82.
Application: flow channel, tanks.
bassin.
Material: PVC; Length: 1630 mm

Predecessor

Immersion assembly COA110

Successor

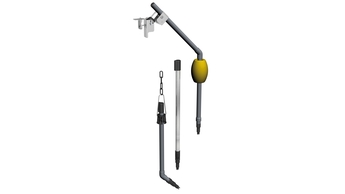

Flexdip CYA112

Modular assembly for water, wastewater and utilities
Read more

Loading price

Prices temporarily unavailable

Price after login

Price on request

activating price

price: provide information

Simple products
Easy to select, install and operate

Technical excellence

Simplicity

What is FLEX?

Standard products
Reliable, robust and low-maintenance

Technical excellence

Simplicity

What is FLEX?

High-end products
Highly functional and convenient

Technical excellence

Simplicity

What is FLEX?

Specialized products
Designed for demanding applications

Technical excellence

Simplicity

Variable

What is FLEX?

FLEX selections	Technical excellence	Simplicity
F L E X Fundamental selection Meet your basic measurement needs	Technical excellence	Simplicity
F L E X Lean selection Handle your core processes easily	Technical excellence	Simplicity
F L E X Extended selection Optimize your processes with innovative technologies	Technical excellence	Simplicity
F L E X Xpert selection Master your most challenging applications	Technical excellence	Simplicity Variable

Learn more about the FLEX selections

Application

Water, wastewater
Characteristic

- Simple assembly- Simple assembly for pH/ORP-sensor CPF81/82 in open tanks or channels.
Design

- Simple assembly for sensors with process connection G1" or NPT 3/4".- Optional external spray cleaning.
Dimension

Immersion depth : approx. 1430mm (56 inch)
Pipe diameter : 40mm (1.57 inch)
Process temperature

max. 60°C
140°F
Process pressure

Ambient pressure
Connection

Simple assembly for G1" or NPT 3/4" thread.

Application

Water, waste water, Process water, River water
Characteristic

Immersion assembly for open tanks or channels.
Design

- Immersion assembly for sensors with process connection G1" or NPT 3/4"
- Optional external spray cleaning.
Material

PVC-U
Dimension

Immersion depth : approx. 1430mm
Pipe diameter : 40mm
Process temperature

max. 60°C
Process pressure

Ambient pressure
Connection

Immersion assembly for G1" or NPT 3/4" thread.

Application

Water, waste water, process water, river water
Installation

Simple assembly
Characteristic

Simple assembly for pH/ORP sensor CPF81/82 in open tanks or channels.
Design

- Simple assembly for sensors with process connection G1" or NPT 3/4"
Optional external spray cleaning.
Material

PVC-U
Dimension

Immersion depth: approx. 1430 mm (56 inch)
Pipe diameter: 40mm (1.57 inch)
Process temperature

max. 60°C
140°F
Process pressure

Ambient pressure
Connection

Simple assembly for G1" or NPT 3/4" thread.

Application

Water, waste water
Installation

Simple assembly
Characteristic

Simple assembly for pH/ORP-sensor CPF81/82 in open tanks or channels.
Design

- Simple assembly for sensors with process connection G1" or NPT 3/4"
- Optional external spray cleaning
Dimension

Immersion depth : approx. 1430mm
Pipe diameter : 40mm
Process temperature

max. 60°C
Process pressure

Ambient pressure
Connection

Simple assembly for G1" or NPT 3/4" thread.

Application

Water, waste water
Installation

Simple assembly
Characteristic

Simple assembly for turbidity sensor CUS31/41 in open tanks or channels.
Design

- Simple assembly for sensors with process connection G1" or NPT 3/4".- Optional external spray cleaning.
Material

PVC-U
Dimension

Immersion depth : approx. 1430mm (56 inch)
Pipe diameter : 40mm (1.57 inch)
Process temperature

max. 60°C
140°F
Process pressure

Ambient pressure
Connection

Simple assembly for G1" or NPT 3/4" thread.

Application

Water, wastewater
Characteristic

Simple assembly for conductivity cell in open tanks or channels.
Design

- Simple assembly for sensors with process connection G1" or NPT 3/4".
Material

Immersion tube: PVC-U
Protection cap: PA
Wall attachment: PE
Worm drive hose clip: stainless steel 1.4401
Dimension

Immersion depth: approx. 1430 mm (approx. 55.77 inch)
Pipe diameter: 40 mm
(1.56 inch)
Process temperature

max. 60°C
max.140°F
Process pressure

Ambient pressure
Connection

Simple assembly for G1" or NPT 3/4" thread.

Filter

3 documents

Technical Information (TI)

Technical Information DIPFIT W

Technical Information (TI)

English version - 05/2000

New version available in English

Assembly

Select other languages, versions and see details Hide selection and details

	EN
01/05/2000

Language:	English
Version:	01/05/2000
File size:	157.2 KB
File name:	ti166cen.pdf

Share
- Copy Link
- Send Mail
Download

Operating Instruction (BA)

Operating Instructions Dipfit W CYA611

Operating Instruction (BA)

English version - 09/2006

New version available in English

PVC Immersion Assembly for Oxygen
and Turbidity Sensors and pH/Redox
Electrode CPF81/82

Select other languages, versions and see details Hide selection and details

	EN
01/09/2006
01/11/2004
01/05/2000
01/09/1997

Language:	English
Version:	01/09/2006
File size:	591.3 KB
File name:	BA166CEN.pdf

Share
- Copy Link
- Send Mail
Download

Special Documentation (SD)

Mounting instruction for pendoulous suspension of assemblies

Special Documentation (SD)

English version - 11/1997

New version available in English

Special Documentation
Pendulumverse/Pendulum Frame
for pendulous suspension of assemblies
CPA111,CLA111,CPA510, CYA611

Select other languages, versions and see details Hide selection and details

	EN
01/11/1997

Language:	English
Version:	01/11/1997
File size:	129.6 KB
File name:	SD038CA2.pdf

Share
- Copy Link
- Send Mail
Download

Filter

60 spare parts & accessories

Protective cap PA6 for pipes 40mm/ 1,57"

further parts

Drawing number

Order code

10

50016707
pipe DM 40X 3 PVC L=1550MM

further parts

Drawing number

Order code

40

51508115
Sleeve G1" for CYA611

further parts

Drawing number

Order code

50

50085609
Sleeve G 3/4" for CYA611 PVC

further parts

Drawing number

Order code

51

51500332
Sleeve 3/4"NPT for CYA611 PVC

further parts

Drawing number

Order code

52

50085608
Sleeve 1/2"NPT F.CPA601/611

further parts

Drawing number

Order code

53

51506412
Kit CYA611 flange DN50 complete

further parts

Order code

51502538
hose liner

Drawing number

Order code

80

50010750
Spray cleaning kit for CYA 611

Drawing number

Order code

120

50086336
spray cleaning CYA112 600mm

Drawing number

Order code

120

71158245
