Prosonic FMU862

Product picture of: Prosonic FMU862

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

Features and specifications

Back

Details

  • Measuring principle

    Ultrasonic

  • Characteristic / Application

    Separated version with Field housing or control room instrumentation, up to 5 relays for pump control, limit switch inputs, 2 channel version,

  • Specialities

    Protection Class IP 66 / NEMA 4x

  • Supply / Communication

    4 wire AC / DC

  • Ambient temperature

    -20 °C ... 60 °C
    (-20 °F ... 140°F)

  • Communication

    4 ... 20 mA HART
    Profibus DP
    RS 485

  • Certificates / Approvals

    CSA GP

  • Options

    Display
    Illuminated display

  • Components

    Sensors FDU 8x

  • Successor

    FMU90

  • Application limits

    See FDU8x sensors

  • Measuring principle

    Ultrasonic

  • Product headline

    Fieldhousing transmitter

  • Degree of protection

    IP68

  • Display/Operation

    LC-Display,LED for relays
    6 buttons

  • Outputs

    4...20mA per channel
    3(optional 5)Relays, Relay function and switchpoint adjustable

  • Inputs

    230V 50Hz optional 24V,48V 50/60Hz,24V DC

  • Digital communication

    Rackbus RS485
    Profibus DP
    HART

  • Measuring principle

    Ultrasonic

  • Characteristic / Application

    Seperated version with Field housing or control room instrumentation, up to 5 relays, limit switch inputs, 2 channel version,

  • Supply / Communication

    4 wire AC / DC

  • Ambient temperature

    -20 °C ... 60 °C
    (-4 °F ... 140 °F)

  • Communication

    4 ... 20 mA HART
    Profibus DP
    RS 485

  • Certificates / Approvals

    CSA GP

  • Options

    Display
    Illuminated display

  • Components

    Sensors FDU8x

  • Successor

    FMU90

  • Application limits

    Protection Class IP 66 / NEMA 4x

Documents / Manuals / Software

Accessories / Spare parts

Nr
Order code
Specification

  • Successor

    • Prosonic FMU90 - Ultrasonic measurement
      • F
      • L
      • E
      • X

      Prosonic S FMU90

      Transmitter in housing for field or top hat rail mounting for up to 2 ultrasonic sensors FDU90/91/92/93/95

      Loading price
      Prices temporarily unavailable
      from CHF 803.-
    • Prosonic FMU95 - Ultrasonic measurement
      • F
      • L
      • E
      • X

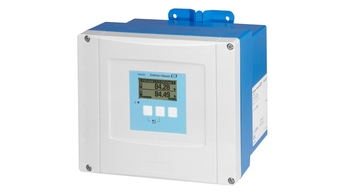

      Prosonic S FMU95
