Soliphant II FTM32

Product picture of: Soliphant II FTM32

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

Features and specifications

Back

Details

  • Measuring principle

    Vibration Solids

  • Characteristic / Application

    Level limit switch for powder and bulk solids
    Fork sensor
    Universal
    No calibration required
    Not effected by build up
    Robust
    Switch value visible from outside
    Rope extension

  • Supply / Communication

    AC 2-wire
    DC-PNP
    230V AC / 19...200V DC 1 Relay
    230V AC / 19...200V DC 2 Relay

  • Ambient temperature

    -40°C...70°C

  • Process temperature

    -40°C...80°C

  • Process pressure absolute / max. overpressure limit

    Vacuum...16bar

  • Min. density of medium

    20g/l (8g/l on request)

  • Main wetted parts

    304 / 316Ti (rope PUR, Silicon)

  • Max. tensile strength

    2500N

  • Process connection

    Thread
    1 1/2" DIN2999
    1 1/2" NPT
    EN Flange DN 50...100
    ASME Flange 2"...4"
    Jis Flange 50A...100A

  • Sensor length

    750mm...20000mm

  • Communication

    AC 2-wire
    DC-PNP
    SPDT relay
    DPDT relay

  • Certificates / Approvals

    ATEX
    FM
    CSA

  • Successor

    FTM52

  • Application limits

    Grain size: max 10 mm

Documents / Manuals / Software

Accessories / Spare parts

Nr
Order code
Specification

  • Predecessor

  • Successor

    • Soliphant FTM52 - Vibronic point level detection
      • F
      • L
      • E
      • X

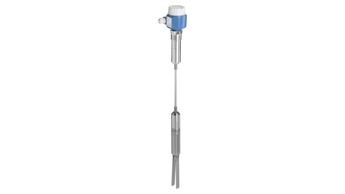

      Soliphant M FTM52

      Soliphant FTM52 is a robust point level switch with rope extension for fine-grained bulk solids, also for hazardous areas. Sensor with build-up and corrosion detection.
