Proservo NMS7

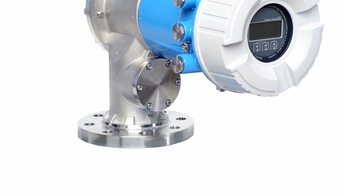

Product picture of: Proservo NMS7

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

Features and specifications

Back

Details

  • Measuring principle

    Servo / Float Tank Gauging

  • Characteristic / Application

    High precision measurement for liquid level, interface, density for hygienic applications.

  • Supply / Communication

    85-264VAC
    20-25VAC/20-62VDC

  • Accuracy

    +/-0.7 mm (+/-0.03")

  • Ambient temperature

    Standard:

    -20 °C ... 60 °C

    (-4 °F ... 140 °F)

    Optional:

    -40 °C ... 60 °C

    (-40°F ... 140 °F)

  • Process temperature

    -200 °C ... 200 °C

    (-328 °F ... 328 °F)

  • Process pressure absolute / max. overpressure limit

    5.88 bar g

    (85.28 psi)

  • Main wetted parts

    SUS316

  • Process connection

    DN80 ... DN150

    3" ... 6"

  • Max. measurement distance

    Standard: maximum 36 m (53.33 ft)

  • Communication

    4 ... 20 mA HART

    Modbus

    V1

    WM550

    BPM

    Mark-Space

    Contact relay x4

  • Certificates / Approvals

    TIIS

  • Safety approvals

    SIL2

  • Application limits

    Stilling well or guide wires for turbulent application
    Recommend PTFE displacer for high viscosity application
    Interface measurement requires min. difference of 0.100 g/ml between layers

Documents / Manuals / Software

  • Proservo NMS7 Technical Information

    High Accuracy Performance Intelligent Tank Gauge for Food and Alcoholic
    and Non-alcoholic beverages

    Technical Information (TI)
  • Tank side monitor For tank side monitoring and controlling of Proservo NMS 5 intelligent tank gauge

    Remote monitoring and control for Proservo tank gauge
    Indication via two line illuminated display
    Operation via 3 optical keys (touch control) and Endress+Hauser user
    friendly
    Programming matrix
    Protection class IP 67 housing
    Explosion proof forhazardous area mounting

    Technical Information (TI)
  • Proservo NMS 5/7 series

    Intelligent tank gauge with high accuracy performance
    Liquid level, I/F, Density & Density Profile

    Technical Information (TI)
  • Proservo NMS7 Operating Instructions

    Proservo NMS7 of intelligent tank gauge is designed for high-accuracy
    liquid level
    measurement in storage and process applications.
    NMS7 performs the tank inventory management, loss control, total cost
    saving, and
    safe operation.
    NMS7 is designed for the purpose of single or multi-task installations,
    converting a
    wide range of measurement functions.

    Operating Instruction (BA)
  • Proservo NMS5/7 series- Operating Instructions

    The proservo NMS series of intelligent tank gauges are designed for high
    accuracy measurement in storage and process applications.They fulfill
    the exact demands of tank inventory management, loss control, total
    saving and safe operation.

    Operating Instruction (BA)
  • Promonitor NRF560 Operating Instructions

    Tank side monitor for integration and communication with Proservo and
    Prothermo

    Operating Instruction (BA)
  • Proservo NMS 53x Operating Instructions

    High accuracy servo level gauge based on the principle of displacement
    measurement

    Operating Instruction (BA)
  • Proservo NMS5-, NMS7-

    Functional Safety data sheet / Datenblatt zur Funktionalen Sicherheit

    Special Documentation (SD)
  • Tank Gauging

    Система коммерческого и оперативного учета продуктов
    в резервуарных парках.

    Competence Brochure (CP)
    07/15
    Russian
  • Competence Brochure: Proservo calibration test rig

    Vertical accuracy test facilty for
    servo tank gauging instruments (NMS5 / NMS7)

    Competence Brochure (CP)
    04/17
    Japanese
  • Competence Brochure: Proservo calibration test rig

    Vertical accuracy test facilty for
    servo tank gauging instruments (NMS5 / NMS7)

    Competence Brochure (CP)
    04/17
    English
  • Competence Brochure: Proservo calibration test rig

    Vertical accuracy test facilty for
    servo tank gauging instruments (NMS5 / NMS7)

    Competence Brochure (CP)
    03/19
    Japanese
  • Competence Brochure: Proservo calibration test rig

    Vertical accuracy test facilty for
    servo tank gauging instruments (NMS5 / NMS7)

    Competence Brochure (CP)
    03/19
    English
  • DTM Single, Proservo_NMSx_HART_FW_4_27_zz_Dev_Rev_3, 26.10.2020 (Tank Gauging, Proservo, 0x00B6)

    HART,

    DeviceCare Version: 1.07.00

    Field Xpert - SMT70 Version: 1.05.00

    FieldCare Version: 2.15.00

    Device Type Manager (DTM)
    1.4.188.39
    Language neutral
  • NMS7 - picture

    Tank Gguge

    06/12
    Language neutral
  • Sakura, System&Gauging

    Product Code: NMS5-, NMS7-
    Declaration Number: KEMA 05ATEX2071

    Manufacturer Declaration
    English
  • Sakura, System&Gauging

    Product Code: NMS5-, NMS7-
    Declaration Number: KEMA 05ATEX2071

    Manufacturer Declaration
    English
  • Sakura, System&Gauging

    Product Code: NMS5-, NMS7-
    Declaration Number: KEMA 05ATEX2071

    Manufacturer Declaration
    English
  • SYSTEM

    Product Code: NMS5-, NMS531-, NMS532-, NMS534-, NMS535-, NMS536-, NMS7-, NMT532-, NMT539-
    Region/Country: India
    Approval Agency: CC(O)E
    Protection: Ex d, Ex ia

    Explosion Protection
    English
  • Sakura, System&Gauging

    Product Code: NMS5-, NMS7-
    Approval Agency: KEMA
    Protection: Ex d IIB T6...T3 Ga/Gb, Ex d IIC T6...T3 Ga/Gb, Ex d [ia] IIB T6...T3 Ga/Gb

    Explosion Protection
    English
  • SYSTEM

    Product Code: NMS5-, NMS7-
    Region/Country: Russia (TR CU)
    Approval Agency: EAC
    Protection: Ex d, Ex d [ia]

    Explosion Protection
    Russian
  • Sakura, System&Gauging

    Product Code: NMS5-, NMS7-
    Approval Agency: TIIS
    Protection: Ex d IIB T4

    Explosion Protection
    Japanese
  • Sakura, SYSTEM

    Product Code: NMS5-, NMS7-
    Approval Agency: KEMA
    Protection: Ex d IIB T6...T3 Ga/Gb, Ex d IIC T6...T3 Ga/Gb, Ex d [ia] IIB T6...T3 Ga/Gb

    Explosion Protection
    English
  • Sakura, SYSTEM

    Product Code: NMS5-, NMS7-
    Approval Agency: KEMA

    Explosion Protection
    English
  • Sakura, SYSTEM

    Product Code: NMS5-, NMS7-
    Approval Agency: KEMA

    Explosion Protection
    English
  • Sakura, SYSTEM

    Product Code: NMS5-, NMS7-
    Approval Agency: KEMA

    Explosion Protection
    English
  • Sakura, System&Gauging

    Product Code: NMS5-, NMS7-
    Approval Agency: TIIS
    Protection: Ex d IIB T4

    Explosion Protection
    Japanese
  • Sakura, System&Gauging

    Product Code: NMS5-, NMS7-
    Approval Agency: TIIS
    Protection: Ex d IIB T4

    Explosion Protection
    Japanese
  • SYSTEM, Tankvision

    Product Code: NMS5-, NMS7-, NMT532-, NMT539-, NRF560-, NXA820-, NXA821-, NXA822-
    Region/Country: Bulgaria
    Approval Agency: BIM (Bulgarian Institude of Metrology)
    Approval Number: 12.04.4968

    Metrology
    Bulgarian
  • Micropilot S, SYSTEM, Tankvision, TERMINALVISION

    Product Code: FMR532-, FMR540-, NMS5-, NMS7-, NMT539-, NRF590-, NXA20-, NXA820-, NXA85-
    Region/Country: Russia (GOST)
    Approval Agency: Rosstandart
    Approval Number: DE.C.29.004.A_66368

    Metrology
    Russian
  • SYSTEM

    Product Code: NMS5-, NMS7-
    Region/Country: Belarus
    Approval Agency: BEL
    Approval Number: 10064

    Metrology
    Russian
  • Sakura, SYSTEM

    Product Code: NMS5-, NMS7-, NMS80-, NMS81-, NMS83-
    Region/Country: Uzbekistan
    Approval Agency: UZS
    Approval Number: 02.7119

    Metrology
    Russian
  • SYSTEM

    Product Code: NMS5-, NMS7-
    Region/Country: International
    Approval Agency: TÜV

    Safety Integrity Level (SIL)
    English
  • SYSTEM

    Product Code: NMS7-, NMS83-

    Food Safety
    Japanese
  • SYSTEM

    Product Code: NMS7-, NMS83-

    Food Safety
    Japanese

Accessories / Spare parts

Nr
Order code
Specification
  • 37
    • Nr 37 Order code 56004441

      Operation input/contact out, carrier

      I/O-3 with chassis, stud, screw, nut. Usage: NMS5.

  • 52
    • Nr 52 Order code 71103518

      Wire drum, 10/16m PFA>316L, 0.4, FKM

      Material: 316. 16m PTFE wire d=0.4mm. O-ring silicone. Usage: NMS7.

    • Nr 52 Order code 71103519

      Wire drum + wire 0.2mm, 10/16m

      Material: 316. 16m wire d=0.2mm. O-ring silicone. Usage: NMS7.

    • Nr 52 Order code 71114399

      Wire drum bracket, SS polished

      With PTFE bushing, x2, SS screw x2.

    • Nr 52 Order code 71134074

      Wire drum, wire 0.2mm 22m, flanged

      Retainer plate. Wire 0.2mm 22m 316. O-ring: silicone. Usage: NMS7.

  • 11
    • Nr 11 Order code 017803-0066

      O-ring, cover drum housing, SS, FKM

      Size: D158mm, d3.5mm. Usage: NMS5/NMS7.

    • Nr 11 Order code 017803-0035

      O-ring, cover drum housing SS, silicone

      Size: D158mm, d3.5mm. Usage: NMS5/NMS7.

    • Nr 11 Order code 70109105

      O-ring, cover, drum housing. SS, NBR

      Size: D158mm, d3.5mm. Material: NBR. Part: drum housing cover, stainl. steel. Usage: NMS5/NMS7.

    • Nr 11 Order code 017803-0033

      O-ring, calibration window, NBR

      Size: D60mm, d3mm. Usage: NMS5/NMS7.

    • Nr 11 Order code 017803-0041

      O-ring, calibration window, silicone

      Size: D60mm, d3mm. Material: Silicon rubber. Part: calibration window cover, NMS5. Usage: NMS5/NMS7.

    • Nr 11 Order code 017803-0036

      O-ring, calibration window, FKM

      Size: D60mm, d3mm. Material: FKM. Part: calibration window cover, NMS5. Usage: NMS5/NMS7.

    • Nr 11 Order code 017803-0030

      O-ring, display cover, HNBR

      Size: D113.90mm, d3.53mm. Material: HNBR. Part: terminal/elec. compartment. Part: NMS/NRF display. Part: NRF/NRR/NAB terminal. Usage:NMS5/NMS7, NRF560, NRR261, NAB560.

    • Nr 11 Order code 017803-0040

      O-ring, terminal cover, NBR

      Size: D123.5mm, d3.5mm. Material: NBR. Part: terminal box. Usage: NMS5/NMS7.

  • 21
    • Nr 21 Order code 017800-0111

      Cover, display module, Aluminium

      Display window cover. Color: E+H gray. Material: aluminium casting. Usage: NMS5/NMS7, NRF560.

    • Nr 21 Order code 017800-0112

      Cover, terminal box, Aluminum, NMS

      NMS terminal box cover. Color: E+H gray. Material: aluminium casting. Usage: NMS5/NMS7.

    • Order code XPN0005-

      Displacer Proservo

      Inventory Management Gauge, Repair + Spare Part. Usage: Proservo NMS80/81/83, NMS5/7.

  • 31
    • Nr 31 Order code 70103940

      POW-6, HV, non Ex i

      Power module AC85-264V. Non EExia. Usage: NMS5/NMS7, NRF560.

    • Nr 31 Order code 70103941

      POW-6, LV, non Ex i

      Power, DC20-60V,AC20-55V for non EExia. Usage: NMS5/NMS7, NRF560.

  • 32
    • Nr 32 Order code 70103937

      TCB-6, CPU module

      ROM IC has to be ordered separately. Usage: NMS5/NMS7.

  • 33
    • Nr 33 Order code 017800-0005

      COM-1, Communication module, V1

      Usage: NMS5/NMS7.

    • Nr 33 Order code 52013661

      Upgrade kit V1

      Module with wiring harness and stud. Consists of: 3x stud, screw, washer. Usage: NMS5, NMS7.

    • Nr 33 Order code 71086763

      Modbus module RS485, COM-5

      Usage: NMS5/NMS7.

    • Nr 33 Order code 70106270

      Upgrade kit Modbus RS485

      Module with wiring harness and stud. 3x stud, screw, washer. Usage: NMS5/NMS7.

    • Nr 33 Order code 56004484

      COM-6 HART, passive remote commu. module

      HART communication module upgrade. Suitable cable harness 52013650. Size: 114x97mm, software on memory chip. Usage: NMS5/NMS7.

    • Nr 33 Order code 52013651

      Upgrade kit HART passive

      Module with wiring harness and stud. Consists of: 3x stud, screw, washer. Usage: NMS5, NMS7.

    • Nr 33 Order code 56004485

      COM-6 HART, active remote commu. module

      HART communication module upgrade. Suitable cable harness 70106037. Size: 114x97mm, software on memory chip. Usage: NMS5/NMS7.

    • Nr 33 Order code 70106039

      Upgrade kit HART active output

      Module with wiring harness and stud, 3x stud, screw, washer. Usage: NMS5/NMS7.

    • Nr 33 Order code 56004534

      Communication module WM550, arrestor

      Usage: NMS5/NMS7.

    • Nr 33 Order code 52013662

      Upgrade kit WM550

      Module with wiring harness and stud. Consists of: 3x stud, screw, washer. Usage: NMS5, NMS7.

    • Nr 33 Order code 56004409

      Communication module Mark Space

      Usage: NMS5/NMS7.

    • Nr 33 Order code 52013658

      Upgrade kit Mark Space

      Module with wiring harness and stud. Consists of: 3x stud, screw, washer. Usage: NMS5, NMS7.

    • Nr 33 Order code 56004355

      Communication module ENRAF BPM, COM-3

      Usage: NMS5/NMS7.

    • Nr 33 Order code 52013649

      Upgrade kit Enraf BPM

      Module with wiring harness and stud. Consists of: 3x stud, screw, washer. Usage: NMS5, NMS7.

  • 34
    • Nr 34 Order code 017800-0007

      Alarm output, 4x contact, I/O 3

      4x Contact output, 4x Contact Input. Usage: NMS5/NMS7.

    • Nr 34 Order code 70109108

      Alarm output, 2x contact, I/O 3, TUV OSP

      2x Contact output, overspill protection TUV, 2x Contact input. Usage: NMS5/NMS7.

  • 35
    • Nr 35 Order code 017800-0017

      Output 4-20mA, I/O 5

      2 channel 4-20mA current output. Usage: NMS5/NMS7.

    • Nr 35 Order code 52013656

      Upgrade kit I/O-5

      Module with wiring harness and stud. Consists of: 2x stud, screw, washer, nut. Usage: NMS5, NMS7.

  • 37
    • Nr 37 Order code 56004442

      Oper. I./C.O., spot temperature

      I/O-3,T-AMP spot temp, with chassis. Usage: NMS5/NMS7.

    • Nr 37 Order code 70106035

      Upgrade kit oper. I./C.O., Ex d temp.

      Operation input and contact output with Ex d spot temperature. T-Amp and I/O-3 module assembly with aluminium chassis. Include stud, screw, spring washer, wiring harness. Usage: NMS5/NMS7.

    • Nr 37 Order code 70106032

      Upgrade kit oper. input/contact out

      I/O-3 with 52013652 cable for CPU. 52013653 cable for terminal, chs., set. Usage: NMS5/NMS7.

    • Nr 37 Order code 56004491

      Spot temp. with Chassis

      T-AMP spot temp, with chassis. Usage: NMS5/NMS7.

    • Nr 37 Order code 56004490

      Spot temp. input T-AMP Upgrade KIT

      T-AMP,with,70106033 cable, connector. Cable 70106034, connector (terminal). Chassis, spacer, washer, screw set. Usage: NMS5/NMS7.

  • 40
  • 41
    • Nr 41 Order code 52013660

      Wiring harness,Ter.-COM-1/RS485/BPM mod.

      Wiring harness between terminal and module. Terminal 6, 7, 2c, 10P black connector, red connector w. printed circuit board. Usage: NMS5, NMS7.

    • Nr 41 Order code 52013650

      Wiring harness, Term.-HART passive mod.

      Wiring harness between terminal and module. Terminal 6, 7, 2c, 10P black connector, red connector with PCB. Usage: NMS5, NMS7.

    • Nr 41 Order code 70106037

      Wiring harness, Term.-HART active mod.

      Wiring harness between terminal and module. Terminal 6,7, 2c, 10P black connector, red connector with printed circuit board. Usage: NMS5/NMS7.

    • Nr 41 Order code 52013657

      Wiring harness, Terminal-Mark Space mod.

      Wiring harness between terminal and module. Terminal 20, 21, 22, 23, 4c, 10P black connector, 4P brown connector. Usage: NMS5, NMS7.

    • Nr 41 Order code 52013653

      Wiring harness, Terminal-I/O-3 module

      Terminal 8-18, 8c (output), 3c (input), 2x 10P black connector, 13P brown connector. Usage: NMS5, NMS7. Wiring harness between terminal and module.

    • Nr 41 Order code 52013652

      Wiring harness I/O-3-TCB

      Wiring harness between I/O-3 and TCB. 9-wire, 9-Pin brown connector. Usage: NMS5, NMS7.

    • Nr 41 Order code 52013655

      Wiring harness, Terminal-I/O-5 module.

      Wiring harness between terminal and 4-20mA output module. Terminal 20-23, 4c, 10P black connector, 4P brown connector. Usage: NMS5, NMS7.

    • Nr 41 Order code 70106033

      CPU, T-AMP Ex d module cable

      Cable with connector for TCB. Usage: NMS5/NMS7.

    • Nr 41 Order code 70106034

      Wiring harness,Terminal-T-AMP Ex d mod.

      Wiring harness between terminal and module. Terminal 24, 25, 26, 3c, 5P black connector, 3P brown connector. Usage: NMS5/NMS7.

  • 42
    • Nr 42 Order code 56004508

      Terminal, noise filter, Exd

      EExd type, without Exia sepalater wall. Usage: NMS5/NMS7.

  • 43
    • Nr 43 Order code 017800-0015

      PCB CPU Carrier set complete, spacer

      PCB chassis with screw. Usage: NMS5/NMS7.

  • 44
    • Nr 44 Order code 70103938

      Display module 4line, 3key optical

      4-line graphic type. NMS5/NMS7: later or equal softwareV4.27. NRF560: later or equal software V1.94. Usage: NMS5/NMS7, NRF560.

  • 51
    • Nr 51 Order code 017800-0043

      Detector unit NMS, TCC-3

      Usage: software V. 4.24 or before 4.24.

    • Nr 51 Order code 70103944

      Detector unit NMS, TCC-3, V1

      Usage: software V.4.27 later or now, NMS5/NMS7.

  • 52
    • Nr 52 Order code 56004527

      Wire drum bracket, SS

      2x PTFE bushing, 2x SS screw. Usage: NMS5/NMS7.

    • Nr 52 Order code 56004526

      Wire drum bracket SS, Teflon coated

      2x PTFE bushing, 2x SS screw. Usage: NMS5/NMS7.

    • Nr 52 Order code 017800-0221

      Bearing, wire drum bracket, PTFE, NMS

      Usage: NMS5/NMS7.

  • 53
    • Nr 53 Order code 56004424

      Measuring wire, 0.2mm, SS, 30m

      316 0.2 wire,30m,316 ring. Usage: TGM5.

    • Nr 53 Order code 56004909

      Measuring wire, 0.2mm, SS, 16M

      316 0.2 wire, 16m, 316 ring. Usage: NMS7, TGM5.

    • Nr 53 Order code 56004256

      5x measuring wire, 16m, d=0.4mm, PTFE

      5x wire d=0.4mm, 5x ring. Material: PTFE. Usage: NMS5/NMS7.

    • Nr 53 Order code 56004912

      Measuring wire, 16m, PFA>316L, 0.4 mm

      PFA coated 0.4 wire, 16m, PTFE O-ring. Usage: NMS5, TGM5.

    • Nr 53 Order code 71273744

      Wire ring, 316L

      Wire ring made of 316L to connect measuring wire with displacer. Usage: Proservo NMS80/81.

    • Nr 53 Order code 71273746

      Wire ring, PTFE

      Wire ring made of PTFE to connect measuring wire with displacer. Usage: NMS80/81/83, NMS5/NMS7, TGM5.

  • 75

  • Successor

    • Proservo NMS83 - Tank gauging instrument
      • F
      • L
      • E
      • X

      Proservo NMS83

      Intelligent servo tank gauge, designed for high accuracy liquid level measurement in custody transfer and inventory control applications. For hygienic applications.

      Loading price
      Prices temporarily unavailable
      from CHF 803.-

    • Simple products

    • Easy to select, install and operate

    Technical excellence

    Simplicity

    • Standard products

    • Reliable, robust and low-maintenance

    Technical excellence

    Simplicity

    • High-end products

    • Highly functional and convenient

    Technical excellence

    Simplicity

    • Specialized products

    • Designed for demanding applications

    Technical excellence

    Simplicity

    Variable

    FLEX selections Technical excellence Simplicity
    • F
    • L
    • E
    • X

    Fundamental selection

    Meet your basic measurement needs

    		Technical excellence
    		Simplicity
    • F
    • L
    • E
    • X

    Lean selection

    Handle your core processes easily

    		Technical excellence
    		Simplicity
    • F
    • L
    • E
    • X

    Extended selection

    Optimize your processes with innovative technologies

    		Technical excellence
    		Simplicity
    • F
    • L
    • E
    • X

    Xpert selection

    Master your most challenging applications

    		Technical excellence
    		Simplicity

    Variable
Compare products
We use cookies to store information on your device which helps us to customize and improve your interactions with us. More on cookies can be found in the privacy policy.
