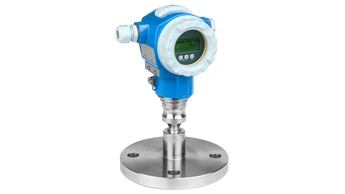

Cerabar S PMC631

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

Features and specifications

Back

Details

Measuring principle

Absolute and gauge pressure
Characteristic

Digital pressure transmitter with diaphragm seal for hygienic applications
Safety by function monitoring, modular transmitter design
Supply voltage

4...20mA HART:
11,5...45V DC
Ex ia: 11,5...30V DC
Ex d[ia]: 13...30V DC
PROFIBUS PA /
FOUNDATION Fieldbus:
9...32V DC
Ex ia: 9...24V DC
Reference Accuracy

0.2%
Long term stability

0,1% of URL/year
Process temperature

-40°C...350°C
Ambient temperature

-40°C...85°C
Measuring cell

400mbar...40bar
Max. overpressure limit

60bar
Process connection

Hygienic connections
Clamp ISO2852
(Tri-Clamp compatible)
Communication

4..20mA HART
PROFIBUS PA
FOUNDATION Fieldbus
Certificates / Approvals

ATEX
FM
CSA
SIL
EN10204-3.1
Successor

For hygienic applications refer to Deltapilot S and Cerabar M. Clamp, DIN11851, DRD, ect within PMP75

Show more
Show less

Measuring principle

Absolute and gauge pressure
Characteristic / Application

Digital pressure transmitter with diaphragm seal for hygienic applications
Safety by function monitoring, modular transmitter design
Supply / Communication

4...20mA HART:
11,5...45V DC
Ex ia: 11,5...30V DC
Ex d[ia]: 13...30V DC
PROFIBUS PA /
FOUNDATION Fieldbus:
9...32V DC
Ex ia: 9...24V DC
Accuracy

0.2%
Long term stability

0,1% of URL/year
Ambient temperature

-40°C...85°C
Process temperature

-40°C...350°C
Process pressure absolute / max. overpressure limit

60bar
Pressure measuring range

400mbar...40bar
Main wetted parts

Ceraphire ceramic
Alloy C
316L
Tantal
PTFE-Foil
Process connection

Tri-Clamp
Hygienic connections
Max. measurement distance

400m H2O
Communication

4 ... 20 mA HART
PROFIBUS PA
FOUNDATION Fieldbus
Certificates / Approvals

ATEX
FM
CSA
SIL
EN10204-3.1
Options

digital display
SS- or Aluminumhousing
Successor

For hygienic applications refer to Deltapilot S and Cerbar M. Clamp, DIN 11851,DRD,ect. within PMP75
Application limits

Changing density

Show more
Show less

Documents / Manuals / Software

Download type

Filter

Technical Information Cerabar S PMC 631, PMP 635.
Cerabar S with diaphragmseal
overload resistant with function monitoring. Communication using PROFIBUS-PA, HART,
INTENSOR
protocols.

Technical Information (TI)
Cerabar S FOUNDATION Fieldbus Operating Instructions, Software version 0.3
Cerabar S PMP731, PMC731, PMC631, PMP635, Pressure transmitter

Operating Instruction (BA)
Cerabar S Operating Instructions PROFIBUS PA
Cerabar S PMC631, PMC731, PMP635, PMP731, Pressure transmitter

Operating Instruction (BA)
Cerabar S Operating Instructions HART, Software version 7.1
Cerabar S PMC631, PMC731, PMP635, PMP731, Pressure transmitter

Operating Instruction (BA)
Mounting bracket instructions Cerabar S.
Mounting bracket.

Short Instruction (KA)

11/95

German , English , Spanish , French , Italian , Dutch
Cable kit instructions Cerabar S.
Cable Kit. Installation cable with pressure equalisation tube.

Short Instruction (KA)

10/98

German , English , Spanish , French
Safety Instructions Cerabar S PMC631, PMC635, PMC731, PMP635, PMP731
FOUNDATION Fieldbus
II 1/2 G, II 2 G EEx ia IIC T6...T4
PTB 98 ATEX 2178 (ATEX)

Ex Safety Instructions (XA)
Cerabar S PMC631, PMC731, PMP635, PMP731
Approval No.: EG 01 012-b

ATEX II 3 D

4...20 mA HART, PROFIBUS PA, FOUNDATION Fieldbus

Ex Safety Instructions (XA)
Cerabar S PMC631, PMC731, PMP635, PMP731
Approval No.: EG 01 012

ATEX II 3 G Protection: EEx nA II T6

4...20 mA HART, PROFIBUS PA, FOUNDATION Fieldbus

Ex Safety Instructions (XA)
Safety Instructions Cerabar S PMC631, PMC635, PMC731, PMP635, PMP731
PROFIBUS PA
II 1/2 G, II 2 G EEx ia IIC T6...T4
PTB 98 ATEX 2178 (ATEX)

Ex Safety Instructions (XA)
Cerabar S PMC631, PMC635, PMP731, PMP635, PMP731
Approval No.: KEMA 97 ATEX 4500

ATEX II 1/2 G, II 2 G Protection: EEx ia IIC T6...T4

4...20 mA HART

Ex Safety Instructions (XA)
Cerabar S PMC631, PMC635, PMC731
Approval No.: KEMA 97 ATEX 4466

ATEX II 2 G Protection: EEx d [ia] IIC T6

4...20 mA HART

Ex Safety Instructions (XA)
Cerabar S PMC631, PMC635, PMC731, PMP635, PMP731
PTB Ex-97.D.2099

PROFIBUS PA, FOUNDATION Fieldbus

Certificate (ZE)
Cerabar S PMC631-I, PMC635-I, PMC731-I
KEMA Ex-94.D.8802

4...20 mA HART

Certificate (ZE)
Cerabar S PMC631, PMC635, PMC731, PMP635, PMP731
PTB Ex-97.D.2099

PROFIBUS PA, FOUNDATION Fieldbus

Certificate (ZE)
Cerabar S PMC631, PMC635, PMC731, PMP635, PMP731
CSA

Drawing No.: 960338-2030 B

Drawing Type: Control Drawing

4...20 mA HART

Certificate FM/CSA (ZD)
Cerabar S, Deltabar S PMC631, PMC635, PMC731, PMP635, PMP731, PMD230, PMD235, FMD230, FMD630, FMD633
FM

Drawing No.: 960377-1011 C

Drawing Type: Control Drawing

PROFIBUS PA

Certificate FM/CSA (ZD)
Cerabar S, Deltabar S PMC631, PMC635, PMC731, PMP635, PMP731, PMD230, PMD235, FMD230, FMD630, FMD633
FM

Drawing No.: 960364-1075 B

Drawing Type: Control Drawing

FOUNDATION Fieldbus

Certificate FM/CSA (ZD)
Cerabar S, Deltabar S PMC631, PMC635, PMC731, PMP635, PMP731, PMD230, PMD235, FMD230, FMD630, FMD633
CSA

Drawing No.: 960377-2011 C

Drawing Type: Control Drawing

PROFIBUS PA

Certificate FM/CSA (ZD)
Cerabar S, Deltabar S PMC631, PMC635, PMC731, PMP635, PMP731, PMD230, PMD235, FMD230, FMD630, FMD633
CSA

Drawing No.: 960364-2075 B

Drawing Type: Control Drawing

FOUNDATION Fieldbus

Certificate FM/CSA (ZD)
Interoperability Statement: Cerabar S, FOUNDATION fieldbus
Endress+Hauser field device has been tested with Rockwell Automation
Integrated Architecture-based host system Allen-Bradley ControlLogix.
Cerabar S, FOUNDATION fieldbus Pressure Transmitter, Device Revision: 2,
DD Revision: 3, Device ID: 0x1007, Software Revision: 1.71

Special Documentation (SD)
Cerabar S PMC 731/631, PMP 731/635 Functional safety manual.
Pressure Transmitter
cerabar S PMC 731/631
cerabar S PMP 731/635
with 4...20 mA output signal
Functional safety manual.

Special Documentation (SD)
Cerabar S, Cerabar M, Deltabar S PMC631, PMP635, PMP46, PMP48, FMD630, FMD633
Erklärung zur Druckgeräterichtlinie

Declaration to Pressure Equipment Directive

Déclaration relative à la Directive Equipements sous Pression

Special Documentation (SD)
Interoperability Statement: Cerabar S, HART
Endress+Hauser field device has been tested with Rockwell Automation
Integrated Architecture-based host system Allen-Bradley ControlLogix.
Cerabar S, HART Pressure Transmitter, Device Revision: 20, Device ID:
0x18, Software Revision: 2.00

Special Documentation (SD)
Cerabar S, Cerabar M, Deltabar S PMC631, PMP46, FMD633
Erklärung zur Druckgeräterichtlinie

Declaration to Pressure Equipment Directive

Déclaration relative à la Directive Equipements sous Pression

Special Documentation (SD)
Cerabar S PMP731/635, PMC731/631
Functional Safety data sheet / Datenblatt zur Funktionalen Sicherheit

Special Documentation (SD)
Pressure measurement with dry running vacuum pumps
Common vacuum pumps require fuel such as oil, water or steam which, in the end, gives rise to costs due to their use or disposal.
Thus the chemical and pharmaceutical industries often use dry-running vacuum pumps. The dry-running Sterling vacuum pump "Sihidry"
was presented at last year's Achema by the SIHI-Halberg sales association. Since then the first practical results are now
available.

Special Promotion (SP)

English
Tough and reliable
With a choice of ceramic or polysilicon capacitive sensors, Cerabar S pressure transmitters from Endress+Hauser, Greenwood, Indiana,
handle a wide range of pressures and environments. Ceramic diaphragms withstand extremely corrosive and abrasive conditions from
full vacuum up to 600 psi, while the touch polysilicon sensors measure up to 6000 psi.

Special Promotion (SP)

English
GSD Single, GSD_EH_PA_PR_Cerabar_0x1501_V02_00_PALIB, 14.04.2014 (Pressur e, Cerabar S, 0x1501)
PROFIBUS PA,
PROFIBUS System Version: Any

General Station Description (GSD)

2.00.00

Language neutral
GSD Single, GSD_EH_PA_PR_Cerabar_0x1501_V01_00_PALIB, 14.04.2014 (Pressur e, Cerabar S, 0x1501)
PROFIBUS PA,
PROFIBUS System Version: Any

General Station Description (GSD)

1.00.00

Language neutral
EDD Single, PDM_HART_PR_CerabarS_0x0007_0x05_0x01, 06.11.2018 (Pressure, Cerabar S, 0x0007)
HART,

PDM Version: 6.0 SP5

Electronic Data Description (EDD)

1.00.00

Language neutral
EDD Single, PDM_HART_PR_CerabarS_0x0007_0x07_0x01, 06.11.2018 (Pressure, Cerabar S, 0x0007)
HART,

PDM Version: 6.0 SP5

Electronic Data Description (EDD)

1.00.00

Language neutral
EDD Single, EH_FF_PR_CerabarS_0x1007a_0x02_0x03_FFLIB_ITK4_60, 09.11.2016 (Pressure, Cerabar S, 0x1
FOUNDATION Fieldbus H1,
FOUNDATION fieldbus System Version: ITK 4.60

Electronic Data Description (EDD)

1.00.00

Language neutral
EDD Single, EH_FF_PR_CerabarS_0x1007a_0x02_0x01_FFLIB_ITK4_01, 09.11.2016 (Pressure, Cerabar S, 0x1
FOUNDATION Fieldbus H1,
FOUNDATION fieldbus System Version: ITK 4.01

Electronic Data Description (EDD)

1.00.00

Language neutral
EDD Single, PDM_PA_PR_CerabarS_0x1501_0x01_0x01, 04.01.2019 (Pressure, Cerabar S, 0x1501)
PROFIBUS PA,

PDM Version: 6.0 SP5

Electronic Data Description (EDD)

1.00.00

Language neutral
EDD Single, PDM_PA_PR_CerabarS_0x1501_0x01_0x02, 04.01.2019 (Pressure, Cerabar S, 0x1501)
PROFIBUS PA,

PDM Version: 6.0 SP5, 8.1

Electronic Data Description (EDD)

1.00.00

Language neutral
DTM Single, CerabarS_PMxx3x_PA_V2_0___V2_2, 20.10.2020 (Pressure, Cerabar S, 0x1501)
PROFIBUS PA,

DeviceCare Version: 1.07.00

Field Xpert - SMT70 Version: 1.05.00

FieldCare Version: 2.15.00

Device Type Manager (DTM)

1.5.153.348

Language neutral
DTM Single, CerabarS_PMxx3x_PA_V1_0, 20.10.2020 (Pressure, Cerabar S, 0x1501)
PROFIBUS PA,

DeviceCare Version: 1.07.00

Field Xpert - SMT70 Version: 1.05.00

FieldCare Version: 2.15.00

Device Type Manager (DTM)

1.5.153.348

Language neutral
DTM Single, CerabarS_PMxx3x_PA_V1_1, 20.10.2020 (Pressure, Cerabar S, 0x1501)
PROFIBUS PA,

DeviceCare Version: 1.07.00

Field Xpert - SMT70 Version: 1.05.00

FieldCare Version: 2.15.00

Device Type Manager (DTM)

1.5.153.348

Language neutral
DTM Single, CerabarS_PMxx3x_V1_x, 23.10.2020 (Pressure, Cerabar S, 0x0007)
HART,

DeviceCare Version: 1.07.00

Field Xpert - SMT70 Version: 1.05.00

FieldCare Version: 2.15.00

Device Type Manager (DTM)

1.4.188.39

Language neutral
DTM Single, CerabarS_PMxx3x_V3_x, 23.10.2020 (Pressure, Cerabar S, 0x0007)
HART,

DeviceCare Version: 1.07.00

Field Xpert - SMT70 Version: 1.05.00

FieldCare Version: 2.15.00

Device Type Manager (DTM)

1.4.188.39

Language neutral
DTM Single, CerabarS_PMxx3x_V7_1, 23.10.2020 (Pressure, Cerabar S, 0x0007)
HART,

DeviceCare Version: 1.07.00

Field Xpert - SMT70 Version: 1.05.00

FieldCare Version: 2.15.00

Device Type Manager (DTM)

1.4.188.39

Language neutral
DTM Single, CerabarS_PMxx3x_V2_x, 23.10.2020 (Pressure, Cerabar S, 0x0007)
HART,

DeviceCare Version: 1.07.00

Field Xpert - SMT70 Version: 1.05.00

FieldCare Version: 2.15.00

Device Type Manager (DTM)

1.4.188.39

Language neutral
DTM Single, CerabarS_PMxx3x_V5_0, 23.10.2020 (Pressure, Cerabar S, 0x0007)
HART,

DeviceCare Version: 1.07.00

Field Xpert - SMT70 Version: 1.05.00

FieldCare Version: 2.15.00

Device Type Manager (DTM)

1.4.188.39

Language neutral
Faceplate Library, PRM_FF_Package_Pressure_1_05_00, 29.05.2018 (Pressure)
FOUNDATION Fieldbus H1,

Plant Resource Manager Version: R3.02

Faceplate

1.05.00

Language neutral
Product Family: Cerabar S
Product Code: PMC631-, PMP635-, PMC731-, PMP731-
Region/Country: International
Approval Agency: Fieldbus Foundation
Software Version: DEVICE REV. 02, DD-ITK 4.01

Fieldbus Conformance

English

Show more
Show less

Accessories / Spare parts

???Show as Pdf???

Filter

Order code

Specification

14
- Nr 14 Order code 013990-0000

  Blind plug, NPT1/2 h16.5 LD-PE

  Sealing plug NPT1/2.

  Show details Show less
- Nr 14 Order code 015797-2000

  Blind plug, M20 h12/6, LD-PE

  Sealing plug M20.

  Show details Show less
- Nr 14 Order code 016137-0012

  Blind plug, G1/2A h12/6 HD-PE

  Sealing plug G1/2.

  Show details Show less
16
- Nr 16 Order code 919584-0000

  Adapter M26 > Pg13.5, AlMgSiP

  Usage: housing aluminium.

  Show details Show less
- Nr 16 Order code 919584-0001

  Adapter M26 > M20, AlMgSiPb

  Usage: housing aluminium.

  Show details Show less
- Nr 16 Order code 919584-0002

  Adapter M26 > NPT1/2, AlMgSiPb

  Usage: housing aluminium.

  Show details Show less
- Nr 16 Order code 919584-0003

  Adapter M26 > G1/2, AlMgSiPb

  Usage: housing aluminium.

  Show details Show less
- Nr 16 Order code 919584-0012

  Adapter M26 > NPT1/2, 304

  Usage: housing stainless steel, Cerabar S, Deltabar S.

  Show details Show less
21
- Nr 21 Order code 013982-0000

  O-ring 61,6 x 2,62 NBR 70 +PTFE

  Usage: cover T4.

  Show details Show less
- Order code 919806-0000

  Mount.set, wall-/pipe-2", VA, lipht sep

  Usage: wall/pipe mounting. Material: 304.

  Show details Show less
- Order code

  Phase out spares

  Show details Show less
- Order code

  12/2010

  Show details Show less

Show more
Show less

Successor

F

L

E

X
Cerabar S PMP75

Digital pressure transmitter with diaphragm seal is typically used in the process industry to measure pressure, level, volume or mass in liquids
More information

Loading price

Prices temporarily unavailable

Price after login

from CHF 803.-
F

L

E

X
Cerabar S PMP75

Pressure, piezoresistive. Diaphragm seal. Application: pressure/level. Membrane: metal, welded. Process connection: minimum oil volume. :: Minimized temperature effect. :: High reliability through process monitoring. :: Enhanced mechanical integrity. :: Modular.
More information

Loading price

Prices temporarily unavailable

Price after login

from CHF 803.-

Simple products
Easy to select, install and operate

Technical excellence

Simplicity

What is FLEX?

Standard products
Reliable, robust and low-maintenance

Technical excellence

Simplicity

What is FLEX?

High-end products
Highly functional and convenient

Technical excellence

Simplicity

What is FLEX?

Specialized products
Designed for demanding applications

Technical excellence

Simplicity

Variable

What is FLEX?

FLEX selections	Technical excellence	Simplicity
F L E X Fundamental selection Meet your basic measurement needs	Technical excellence	Simplicity
F L E X Lean selection Handle your core processes easily	Technical excellence	Simplicity
F L E X Extended selection Optimize your processes with innovative technologies	Technical excellence	Simplicity
F L E X Xpert selection Master your most challenging applications	Technical excellence	Simplicity Variable

Learn more about the FLEX selections

Cerabar S PMC631

Features and specifications

Details

Measuring principle

Characteristic

Supply voltage

Reference Accuracy

Long term stability

Process temperature

Ambient temperature

Measuring cell

Max. overpressure limit

Process connection

Communication

Certificates / Approvals

Successor

Measuring principle

Characteristic / Application

Supply / Communication

Accuracy

Long term stability

Ambient temperature

Process temperature

Process pressure absolute / max. overpressure limit

Pressure measuring range

Main wetted parts

Process connection

Max. measurement distance

Communication

Certificates / Approvals

Options

Successor

Application limits

Documents / Manuals / Software

Accessories / Spare parts

Successor

Cerabar S PMP75

Cerabar S PMP75
