Process indicator RIA250

Product picture of: Process indicator RIA250

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

Features and specifications

Back

Details

  • Measuring principle

    Display

  • Function

    Display
    Power
    Switch
    Seperate
    Convert

  • Certification

    UL rec. Comp
    CSA GP

  • Input

    1 x analog (U, I, TC, RTD)

  • Output

    1 x analog (U, I)
    1 x transmitter power supply

  • Relay output

    2 x changeover contacts

  • Auxiliary power supply / Loop power supply

    90...250 V AC
    20...28 V AC
    18...36 V DC

  • Dimensions (wxhxd)

    96 x 48 x 150 mm
    (3,78" x 1,89" x 5,91")

  • Software

    Linearisation

  • Operation

    3 keys
    interface RS232 + ReadWin 2000

  • Display

    LED 13 (0,51") mm
    Red or green, 5-digit
    Bargraph

Documents / Manuals / Software

  • Technical information Process display RIA250

    Multifunctional 1 channel display with universal input, loop power
    supply, limit monitor and analogue output

    Technical Information (TI)
  • Operating Manuals ReadWin 2000 (GB)

    Operating Manuals ReadWin 2000

    Operating Instruction (BA)
  • Operating manual RIA250

    Operating Manual
    RIA250 >= Software V1.30

    Operating Instruction (BA)
  • process displays

    Product Code: RIA250-
    Region/Country: USA, Canada
    Approval Agency: CSA
    Approval Number: CSA1642298

    Miscellaneous
    English
  • Liquiphant M, Liquiphant S, Nivotester

    Product Code: SIN110-, SIF111-, SIF101-, RN221-, RMA421-, RIA250-, FXN422-, FXN421-, FTL71-, FTL70-, FTL51H-, FTL51C-, FTL51-, FTL50H-, FTL50-, FTL375P-, FTL375N-, FTL372-, FTL370-, FTL325P-, FTL325N-, FTL320-, FTL170Z-, FTL120Z-
    Region/Country: Germany
    Approval Agency: DIBt
    Approval Number: Z-65.11-230

    Overfill Prevention
    German
  • Liquiphant M, Liquiphant S, Nivotester

    Product Code: SIN110-, SIF111-, SIF101-, RN221-, RMA422-, RMA421-, RIA450-, RIA250-, FXN422-, FXN421-, FTL71-, FTL70-, FTL51H-, FTL51C-, FTL51-, FTL50H-, FTL50-, FTL375P-, FTL375N-, FTL372-, FTL370-, FTL325P-, FTL325N-, FTL320-, FTL170Z-, FTL120Z-
    Region/Country: Germany
    Approval Agency: DIBt
    Approval Number: Z-65.40-446

    Overfill Prevention
    German

Accessories / Spare parts

Nr
Order code
Specification

  • Predecessor

  • Successor

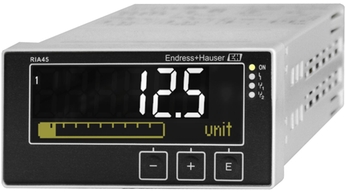

    • Product picture process panel meter RIA45
      • F
      • L
      • E
      • X

      Panel Meter with Control Unit RIA45

      Multicolored process indicator with transmitter function, mathematics and linearization for panel mounting. Connected sensors can be powered with the integrated loop power supply
