TGM5

Product picture of: TGM5

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

Documents / Manuals / Software

  • サーボレベルゲージTGM5　-　技術仕様書

    タンクトップ取付けサーボ式多機能液面計
    石油、化学、発電、環境アプリケーション用高精度連続レベル、
    界面レベル、密度計測

    Technical Information (TI)
  • TGM5 HHT2 操作＆設定　-　取扱説明書

    HHT2 はサーボレベルゲージTGM5 の操作、並びに各種機能の設定用
    ターミナルとして使用されます。

    Operating Instruction (BA)
  • TGM5 モジュール設定＆調整　-　取扱説明書

    TGM5 には各種オプションモジュールが用意されており、お客様の必要
    に応じてモジュールを実装することにより、様々な要求仕様を経済的に
    構築することができます。

    Operating Instruction (BA)
  • サーボレベルゲージTMG5　-　取扱説明書

    TGM5 は高精度な液面計測機能を要求とする保税タンクや特殊液体の
    製造、管理に必要な液面、界面、密度計測など、多機能計測を目的に
    使用されます

    Operating Instruction (BA)
  • Tank Gauging

    Система коммерческого и оперативного учета продуктов
    в резервуарных парках.

    Competence Brochure (CP)
    07/15
    Russian
  • TGM5 - Picture

    Tank Gauge

    06/12
    Language neutral
  • Sakura, System&Gauging

    Product Code: TGM5-
    Region/Country: Japan
    Approval Agency: TIIS

    Explosion Protection
    Japanese

Accessories / Spare parts

Nr
Order code
Specification
  • 11
    • Nr 11 Order code 017880-5025

      O-ring, Large terminal box, AT5 body,CR

      Size: D120mm, d3.5mm. Material: CR. Part: terminal box, large. Usage: AT1/500, B3-11, DRM9700, DU/R, MPC2, TGM5, TMD1.

    • Nr 11 Order code 017880-5026

      O-ring, terminal box, small, CR

      Size: D100mm, d3mm. Material: CR (Chloroprene Rubber). Part: terminal box, small. Usage: AT1/AT500, DRM9700, DU, NRR261/NRR263, NMT539 Converter, TGM5.

    • Nr 11 Order code 017853-5020

      O-ring, drum housing, PTFE

      Size: D180mm, d5.7mm. Material: PTFE. Part: drum housing cover, TGM5. Usage: TGM5.

    • Nr 11 Order code 017853-5019

      O-ring, El-compartment, CR

      Size: D165mm, d4mm. Material: CR (Chloroprene Rubber). Part: main body cover, TMD1,TGM5, DU, DUR. Usage: TMD1, TGM5, DU, DUR.

  • 21
    • Nr 21 Order code 56004893

      TOS link, Optic Fiber, gland cover

      Usage: TGM5.

    • Nr 21 Order code 56004897

      Calibration window,blind,low,mid pr.,Alu

      Alumium, with bolt, M6x20, 6x washer. O-ring, G85, NBR. Usage: TGM5.

    • Nr 21 Order code 56004900

      Calibration window, low, mid press., Alu

      Aluminium with bolt, M6x20, 6x washer. O-ring, G40, NBR. Usage: TGM5.

    • Nr 21 Order code 56004898

      Calibration window, blind, sanitary, SS

      SS304, with bolt, M5x16, 6x washer. O-ring, G85, NBR. Usage: TGM5.

    • Nr 21 Order code 56004901

      Calibration window, sanitary, SS

      SS304 with bolt, M5x16, 6x washer. 6x washer. O-ring, G40, silicone. Usage: TGM5.

    • Nr 21 Order code 56004899

      Calibration window, blind, high p., SS

      SS304, with bolt, M6x20, 8x washer. O-ring, G85, NBR. Usage: TGM5.

    • Nr 21 Order code 56004902

      Calibration window, high p., SS

      SS304 with bolt, M6x20, 8x washer. O-ring, G40, NBR. Usage: TGM5.

    • Nr 21 Order code 71134094

      Cover, electrical housing TGM5

      Usage: TGM5.

  • 30
  • 31
    • Nr 31 Order code 71125581

      Main CPU-A, software version 1.12

      Software Version 1.12. 2-line LCD display. Usage: TGM5000.

    • Nr 31 Order code 71071656

      Main CPU-A / FFI, Software V1.12, TGM5

      Software version 1.12. 2 line character LCD Display. Usage: TGM5000.

    • Nr 31 Order code 56004890

      M-Cont-A

      Servo motor control CPU. Usage: TGM5.

    • Nr 31 Order code 56004891

      Exp-A

      V1 communication, DI, DO. Usage: TGM5, TMD1.

    • Nr 31 Order code 56004892

      Thermo-A

      Temperature input, for RCV&spot. Usage: TGM5, TMD1.

    • Nr 31 Order code 70105997

      I/F DRMM-A, TGM5000/TMD1

      DRM9700 communication control. Usage: TGM5, TMD1.

    • Nr 31 Order code 017853-1709

      BDC output 3

      Usage: TMD1.

    • Nr 31 Order code 017853-1710

      BDC output 4

      Usage: TMD1. Usage: terminal block, Monorack II.

    • Nr 31 Order code 017853-6307

      ADC-2, input 4-20mA

      Usage: TMD1.

    • Nr 31 Order code 017853-6308

      DAC-1, 4-20mA output

    • Nr 31 Order code 56004439

      ODC-1,Ffi communication driver

  • 32
    • Nr 32 Order code 71120185

      1 x Capacitor (EMC filter), TGM5000

      Capacitor, Okaya Type XYE-104472B, Cx=0.1uF, Cy=4700PF, 2000V, IEC/EN 60384-14:2005, Usage: TGM5.

  • 33
  • 51
    • Nr 51 Order code 70100108

      Detector unit TGM5000, 100VAC

      Power, motor, motor drive,L-A/D,m-board. Usage: TGM5.

    • Nr 51 Order code 70100109

      Detector unit TGM5000, 110VAC

      Power, motor, motor drive,L-A/D,m-board. Usage: TGM5.

    • Nr 51 Order code 70100110

      Detector unit TGM5000, 200VAC

      Power, motor, motor drive,L-A/D,m-board. Usage: TGM5.

  • 52
    • Nr 52 Order code 70100111

      Detector unit TGM5000, 220VAC

      Power, motor, motor drive,L-A/D,m-board. Usage: TGM5.

    • Nr 52 Order code 017800-0221

      Bearing, wire drum bracket, PTFE, NMS

      Usage: NMS5/NMS7.

    • Nr 52 Order code 56004894

      Drum shaft bracket, low. p. Aluminium

      2x PTFE bushing, 2x SS screw. Usage: TGM5.

    • Nr 52 Order code 56004895

      Drum shaft bracket, sanitary, SS

      2x PTFE bushing, 2x SS screw. Usage: TGM5.

    • Nr 52 Order code 56004896

      Drum shaft bracket, high press. SS

      2x PTFE bushing, 2x SS screw. Usage: TGM5.

  • 53
    • Nr 53 Order code 56004903

      Wire drum, 10m, 0.2, SS, wire

      316L, SS 0.2 wire, 10m, O-ring. Usage: TGM5.

    • Nr 53 Order code 56004904

      Wire drum, 16m,0.2, SS, wire

      316L, SS 0.2 wire, 16m, O-ring. Usage: TGM5.

    • Nr 53 Order code 56004905

      Wire drum, 30m, 0.2, SS, wire

      316L, SS 0.2 wire, 30m, O-ring. Usage: TGM5.

    • Nr 53 Order code 56004906

      Wire drum, 50m,0.15, SS, wire

      316L, SS 0.15 wire, 50m, O-ring. Usage: TGM5.

    • Nr 53 Order code 56004907

      Wire drum, 10m, 0.4, PTFE coated, wire

      316L,PTFE coat 0.4 wire,10m,PTFE O-ring. Usage: TGM5.

    • Nr 53 Order code 56004908

      Wire drum, 16m, PFA>316L, 0.4, wire

      316L,PTFE coat 0.4 wire,16m,PTFE O-ring. Usage: TGM5.

  • 54
    • Nr 54 Order code 56004909

      Measuring wire, 0.2mm, SS, 16M

      316 0.2 wire, 16m, 316 ring. Usage: NMS7, TGM5.

    • Nr 54 Order code 56004424

      Measuring wire, 0.2mm, SS, 30m

      316 0.2 wire,30m,316 ring. Usage: TGM5.

    • Nr 54 Order code 56004910

      Measuring wire, 0.15mm, SS, 50m

      SUS316 0.15 wire, 50m, SUS316L ring. Usage: NMS5(47m), TGM5(50m).

    • Nr 54 Order code 56004912

      Measuring wire, 16m, PFA>316L, 0.4 mm

      PFA coated 0.4 wire, 16m, PTFE O-ring. Usage: NMS5, TGM5.

    • Nr 54 Order code 56004255

      5x measuring wire, 16m, d=0.2mm, Alloy C

      5x wire d=0.2mm, 5x ring. Material: Alloy C. Usage: NMS5.

    • Nr 54 Order code 56004914

      Measuring wire, 0.2mm, AlloyC, 16m

      AlloyC 0.2 wire, 16m, AlloyC ring. Usage: NMS5, TGM5.

    • Nr 54 Order code 71134073

      Measuring wire 0.2mm, AlloyC, 30m

      AlloyC 0.2mm wire 30m, ring. Usage: TGM5.

    • Nr 54 Order code 017800-0241

      10x wire ring, 316

      10x wire ring made of 316 to connect measuring wire with displacer. Usage: NMS5/NMS7, TGM5.

  • 55
    • Nr 55 Order code 56004915

      Displacer, 70mm, 316, TGM

      Displacer 70mm: 316. Incl. 1m fixing wire d=0.5mm. Usage: TGM5.

    • Nr 55 Order code 71134066

      Displacer, 70mm, guide rings, 316, TGM

      Displacer 70mm with guide rings: 316. Incl. 1m fixing wire d=0.5mm. Usage: TGM5.

    • Nr 55 Order code 56004916

      Displacer, 50mm, cylindrical, 316, TGM

      Displacer 50mm: 316. Cylindrical shape. Incl. 1m fixing wire d=0.5mm. Usage: TGM5.

    • Nr 55 Order code 56004917

      Displacer, 50mm, spherical, 316, TGM

      Displacer 50mm: 316. Spherical shape Incl. 1m fixing wire d=0.5mm. Usage: TGM5.

    • Nr 55 Order code 56004918

      Displacer, 30mm, 316

      Displacer 30mm: 316. Incl. 1m fixing wire d=0.5mm. Usage: TGM5.

    • Nr 55 Order code 56004919

      Displacer, 70mm, PTFE>316, TGM

      Displacer 70mm: PTFE>316. Incl. 1m fixing tube PTFE>316. Usage: TGM5.

    • Nr 55 Order code 56004920

      Displacer, 50mm, PTFE, TGM

      Displacer 50mm: PTFE. Incl. 1m fixing tube PTFE>316. Usage: TGM5.

    • Nr 55 Order code 71134095

      Wire hook, SUS304, L=100

      Material: SUS304. Bolt, nut, washer. Usage: NMS5, TGM5.

    • Nr 55 Order code 71134096

      Wire hook, SS400, L=100

      Material: SS400. Bolt, nut, washer. Usage: NMS5, TGM5.

  • Successor

    • Proservo NMS5 - Servo tank gauging instrument
      • F
      • L
      • E
      • X

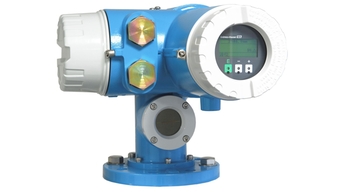

      Proservo NMS5

      The intelligent servo tank gauge Proservo NMS5 is designed for high accuracy liquid level measurement in custody transfer and inventory control applications.
