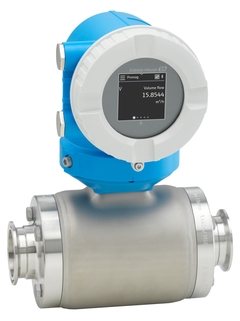

Picture of electromagnetic flowmeter Proline Promag H 10 for basic hygienic applications

Proline Promag H 10
electromagnetic flowmeter

Flowmeter for basic hygienic applications with easy-to-use operation concept

5HBB

Compare

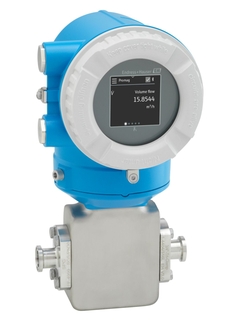

Picture of electromagnetic flowmeter Proline Promag H 10 for small line sizes — Proline Promag H 10 in small line sizes for basic hygienic applications

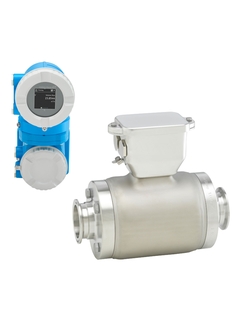

Proline Promag H 10 with Tri-Clamp connections and remote transmitter for hygienic applications — Proline Promag H 10 with remote transmitter for basic hygienic applications

Proline Promag H 10 for basic hygienic applications

Specs at a glance

Max. measurement error

Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s)
Measuring range

0.06 dm³/min to 600 m³/h (0.015 to 2650 gal/min)
Medium temperature range

–20 to +150 °C (–4 to +302 °F)
Max. process pressure

PN 40, Class 150, 20K
Wetted materials

Liner: PFA
Electrodes: 1.4435 (316L); Alloy C22
Process Connections: stainless steel, 1.4404 (F316L); PVDF; PVC adhesive sleeve
Seals: aseptic molded seal (EPDM, FKM, silicone)

See all specifications

Field of application

Promag H is the preferred sensor for hygienic applications in the food and beverage and life sciences industries. With its straightforward hard- and software design, Promag H 10 simplifies every step in its life cycle from engineering to servicing at usual Endress+Hauser quality. Heartbeat Technology ensures measurement reliability and enables extension of recalibration cycles.

The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity.
For applications with sanitary requirements.

Device properties

Liner made of PFA
Sensor housing made of stainless steel (3-A, EHEDG)
Wetted materials CIP-/SIP-cleanable
System integration with HART, Modbus RS485
Flexible operation with app and optional display

Benefits

Flexible installation concept – numerous hygienic process connections
Energy-saving flow measurement – no pressure loss due to cross section constriction
Maintenance-free – no moving parts
Optimum usability – operation with mobile devices and SmartBlue app or display with touch screen
Simple, time-saving commissioning – guided parameterization in advance and in the field
Integrated verification – Heartbeat Technology
