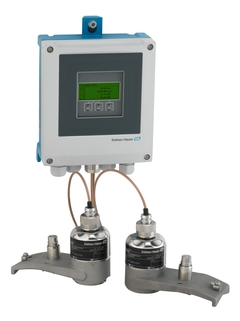

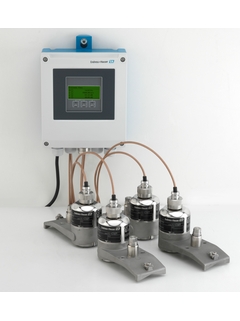

Picture of ultrasonic flowmeter Proline Prosonic Flow W 400 (9W4B)

Proline Prosonic Flow W 400 ultrasonic flowmeter

Clamp-on flowmeter for the water and wastewater industry and for utilities: flexible, easy to install and safe

9W4B
Please Wait (spinning wheel)
Loading price
Prices temporarily unavailable
Price on request
from CHF ??.-

Specs at a glance

  • Max. measurement error

    Volume flow:
    ±3% o.r. for DN15
    ±2% o.r. for DN25 to 200
    ±2% o.r. above DN200

  • Measuring range

    0 to 15 m/s (0 to 50 ft/s)

  • Medium temperature range

    –40 to +130 °C (–40 to +266 °F)

  • Max. process pressure

    N/A

Field of application

Prosonic Flow W 400 is the meter of choice for safe, cost-efficient and low-maintenance measurement of conductive and non-conductive liquids. The clamp-on mounting system and integrated web server allow for easy installation and operation. Thanks to the FlowDC option, the specified accuracy can be maintained despite disturbed flow profiles. Heartbeat Technology provides continuous transparency in your process with its diagnostic, verification and monitoring functions.

  • The measuring principle is non-invasive and independent of pressure, density and conductivity

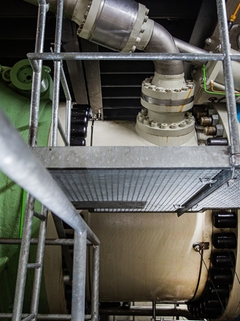

  • Bidirectional flow measurement for water and wastewater as well as process water and hydropower plants


Device properties:

  • Mounting without process interruption

  • Wide nominal diameter range: DN 15 to 4000 (½ to 160")

  • Medium temperature up to +130 °C (+266 °F)

  • Transmitter housing made of durable polycarbonate or aluminium

  • Remote version for wall mounting

  • Integrated data logger: measured values monitoring

Benefits

  • Short inlet run thanks to FlowDC

  • Low capital investment – cost-effectiveness increases with pipe diameter (up to DN 4000/160")

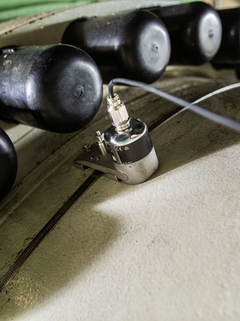

  • Long-term stable signal – maintenance-free permanent mounting from outside with coupling pads

  • Reliable measurement on various pipe materials – sensor for GRP and plastic pipes available

  • Safe operation – no need to open the device due to display with touch control, background lighting

  • Full remote access – web server

  • Integrated diagnostics, verification and monitoring – Heartbeat Technology

Videos

  • Heartbeat Technology
    Heartbeat Technology

    You would like to increase your plant availability and reduce costs? Heartbeat Technology guarantees cost-efficient and safe plant operation without process interruptions.
