Specs at a glance
-
Process temperature
-40 °C ... 150 °C
(-40 °F ... 302 °F) -
Process pressure / max. overpressure limit
Vacuum ... 30 bar
(Vacuum ... 435 psi) -
Min. conductivity of medium
20 µS/cm
Field of application

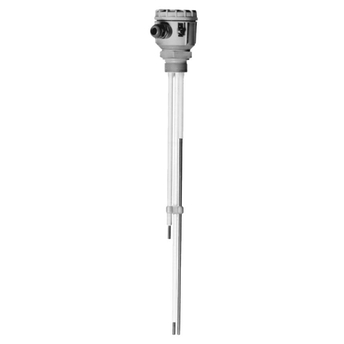

The triple rod probe 11363Z is a high resistant probe for applications requiring accurate point level detection or overfill prevention in plastic vessels or vessels made of non-conducting material. Three different limit points can be detected with one probe in vessels with electrically conducting walls.
Two-point point level detection in plastic vessels and vessels made of non-conducting material. For applications in explosion-hazardous areas or as overfill prevention for water-polluting liquids.
Process connections: Threads and flanges
Measuring range: 100 to 4,000mm (5.9 to 157")
Temperature: -40 to +150°C (-40 to +302°F)
Pressure: -1 to +30bar (-15 to +435psi)
Components: Transmitter FTW325
International explosion protection certificates, overfill prevention WHG
Benefits
Reliable and safe measurement
Safe measurement even for applications in explosion-hazardous area
Variable process connections for various applications
Lean selection
-
Standard products
- Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
Standard products
- Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
Specialized products
- Designed for demanding applications
Technical excellence
Simplicity
Variable
| FLEX selections | Technical excellence | Simplicity |
|---|---|---|
Fundamental selection Meet your basic measurement needs |
Technical excellence
|
Simplicity
|
Lean selection Handle your core processes easily |
Technical excellence
|
Simplicity
|
Extended selection Optimize your processes with innovative technologies |
Technical excellence
|
Simplicity
|
Xpert selection Master your most challenging applications |
Technical excellence
|
Simplicity
Variable |
Loading alternative products
Predecessor
-
-
Technical Information (TI)
Three-rod probes 11363, 11363 ZTechnical Information
High resistant probes, for corrosive liquids, for use in plastic vessels
EN 09/08/201801/06/200330/04/1997Language:
English
Version:
09/08/2018
File size:
473.8 KB
File name:
TI00122FEN_1318.pdf
-
-
-
Ex Safety Instruction (XA)
Conductive Limit Detection 11362Z, 11363Z, 11375Z, 11961Z
II 1/2 G Ex ia IIC T6 Ga/Gb
EN 07/06/202129/08/201601/08/2002Language:
English
Version:
07/06/2021
File size:
405.3 KB
File name:
XA00197FEN_1421.pdf
-
-
-
Ex Safety Instruction (XA)
Safety Instructions Conductive Limit Detection 11362Z, 11363Z
Ex ia IIC T6-T4 GYJ13.1132X (NEPSI)
EN 17/07/2013Language:
English
Version:
17/07/2013
File size:
254.2 KB
File name:
XA01094FB2_0113.pdf
-
-
-
EU Declaration
Product family: Doppelstabsonde, Dreistabsonde, Einstabsonde
Product root: 11362Z-, 11363Z-, 11375Z-, 11961Z- Declaration number: EU_01077_01.22
EN 31/08/2022Language:
English
Version:
31/08/2022
File size:
997.8 KB
File name:
EU_01077_01.22.pdf
-
-
-
EU Declaration
Product family: Doppelstabsonde, Dreistabsonde, Einstabsonde
Product root: 11362Z-, 11363Z-, 11375Z-, 11961Z- Declaration number: TÜV02ATEX1951X
EN 14/01/2021Language:
English
Version:
14/01/2021
File size:
2.4 MB
File name:
EG_02 050-f.pdf
-
-
-
UK Conformity Assessed
Product family: Doppelstabsonde, Dreistabsonde, Einstabsonde
Product root: 11362Z-, 11363Z-, 11375Z-, 11961Z- Declaration number: UK_00271_01.21
Language:
English
Version:
11/05/2021
File size:
267 KB
File name:
UK_00271_01.21.pdf
-
-
-
UK Conformity Assessed
Product family: Doppelstabsonde, Dreistabsonde, Einstabsonde
Product root: 11362Z-, 11363Z-, 11375Z-, 11961Z- Declaration number: UK_00434_01.21
EN 12/10/2021Language:
English
Version:
12/10/2021
File size:
302.1 KB
File name:
UK_00434_01.21.pdf
-
-
-
Miscellaneous
Product family: Levelflex, Liquicap M, Liquicap T, Liquiphant, Liquiphant FAILSAFE, LIQUIPHANT M, Liquiphant S, Liquiphant T, LIQ UIPOINT T, MICROPILOT, MICROPILOT S, Nivotester, Nivotester FailSafe, Pumpenschutz, SYSTEM
Product root: FMI21-, FMI51-, FMI52-, FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMR10-, FMR20-, FMR50-, FMR51-, FMR5 2-, FMR53-, FMR530-, FMR532-, FMR533-, FMR54-, FMR540-, FMR60-, FMR62-, FTC325-, FTI51-, FTI52-, FTL260-, FTL31-, FTL325N-, FTL325P-, FTL33-, FTL375P-, FTL50-, FTL50H-, FTL51-, FTL51C-, FTL51H-, FTL70-, FTL71-, FTL80-, FTL81-, FTL825-, FTL85-, FTW3 1-, FTW32-, FTW325-, FTW360-, NMR81-, NMR84- Region: Eurasian Economic Union, Russia (Declaration of Conformity) Approval agency: EAC {ZMMM_APPROVAL_NUMB ER}: RU D-DE.MO10.B.05528
Language:
Russian
Version:
17/05/2022
File size:
227.7 KB
File name:
EAEC N RU D-DE.PA03.B.53378_22.pdf
-
-
-
Miscellaneous
Product family: Doppelstabsonde, Dreistabsonde, Einstabsonde, Levelflex, LIQUICAP M, LIQUICAP T, Liquiphant, Liquiphant FailSafe, Liquiphant M, LIQUIPHANT S, LIQUIPHANT T, Liquipoint, Liquipoint T, Micropilot, MICROPILOT S, NIVOTESTER, NIVOTESTER FAILSA FE, PUMPENSCHUTZ, System & Gauging
Product root: 11362Z-, 11363Z-, 11371-, 11375Z-, 11961Z-, FMI21-, FMI51-, FMI52-, FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMR10-, FMR20-, FMR50-, FMR51-, FMR52-, FMR53-, FMR530-, FMR532-, FMR533-, FMR54-, FMR540-, FMR60-, FMR62-, FTC325-, FTI51-, FTI52-, FTL260-, FTL31-, FTL325N-, FTL325P-, FTL33-, FTL375P-, FTL50-, FTL50H-, FTL51-, FTL51C-, FTL51H-, FTL70-, F TL71-, FTL80-, FTL81-, FTL825-, FTL85-, FTW23-, FTW31-, FTW32-, FTW325-, FTW33-, FTW360-, NMR81-, NMR84- Region: Eurasian Economic Union, 470 Approval agency: EAC Approval number: RU D-DE.MO10.B.05531
Language:
Russian
Version:
17/05/2022
File size:
229.6 KB
File name:
EAEC N RU D-DE.PA03.B.55307_22.pdf
-
-
-
Explosion Protection
Product family: Doppelstabsonde, Dreistabsonde, Einstabsonde
Product root: 11362Z-, 11363Z-, 11375Z-, 11961Z-, S11362Z-, S11363Z-, S11375Z-, S11961Z- Region: Europe (ATEX) Approval agency: TÜV Category: II 1/2 G, II 1 G Protection: Ex ia IIC T6 Ga, Ex ia IIC T6 Ga/Gb
EN 18/01/2021Language:
English
Version:
18/01/2021
File size:
880.4 KB
File name:
TUV 02 ATEX 1951X_issue01.pdf
-
