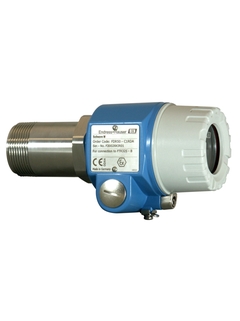

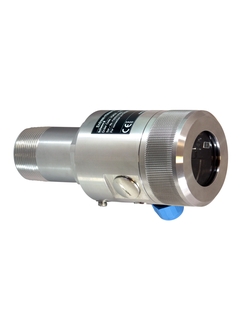

Soliwave FDR50

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

Successor

F

L

E

X

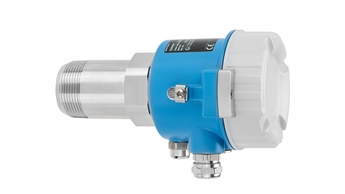

Soliwave FDR57

In cases where contact methods are limited, Soliwave can be a solution. FDR57 indicates point levels and bulk flow, solves positioning and counting tasks and provides non-contact measurement.
Read more

Loading price

Prices temporarily unavailable

Price after login

Price on request

from CHF ??.-

Simple products
Easy to select, install and operate

Technical excellence

Simplicity

What is FLEX?

Standard products
Reliable, robust and low-maintenance

Technical excellence

Simplicity

What is FLEX?

High-end products
Highly functional and convenient

Technical excellence

Simplicity

What is FLEX?

Specialized products
Designed for demanding applications

Technical excellence

Simplicity

Variable

What is FLEX?

FLEX selections	Technical excellence	Simplicity
F L E X Fundamental selection Meet your basic measurement needs	Technical excellence	Simplicity
F L E X Lean selection Handle your core processes easily	Technical excellence	Simplicity
F L E X Extended selection Optimize your processes with innovative technologies	Technical excellence	Simplicity
F L E X Xpert selection Master your most challenging applications	Technical excellence	Simplicity Variable

Learn more about the FLEX selections

Characteristic / Application

Microwave receiver
Ambient temperature

-20 °C ... 70 °C
(-4 °F ... 158 °F)
Process temperature

Waves emitted from outside (non-contact): any
Waves emitted within installation (contact):
-20°C...70°C
(-4°F...158°F)
Process pressure / max. overpressure limit

Waves emitted from outside (contactless): any
Waves emitted within installation (contact):
0.8 bar abs ... 4,8 bar abs (12 psi ... 70 psi)
Min. density of medium

Solid weight: >10 g/l
Main wetted parts

Within installation: Aluminium, PTFE
Or: non-contact
Process connection

1-1/2" G + NPT
With wave emission from outside / mounting from outside, metal container must not be made of metal
Process connection hygienic

With waves emitted from outside (non-contact)
Communication

Transmitter: Relays, DPDT
Certificates / Approvals

ATEX, IEC Ex
Options

Flange
Components

Emiter: FQR50
Transmitter: FTR325
Successor

Soliwave FDR57
Application limits

With waves emitted from outside (non-contact)
Solid weight: <10g/l
