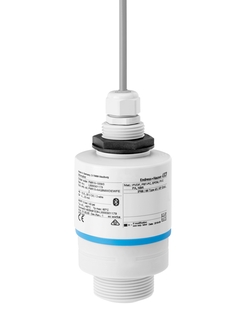

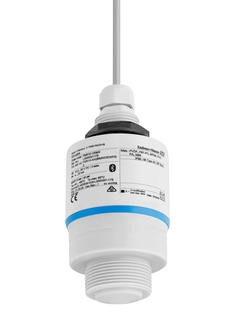

Radar measurement Time-of-Flight Micropilot FMR10

Level measurement in liquids for water & wastewater and utilities in all industries

FMR10

Compare

5-year warranty

Engineered for Confidence

Our Fundamental Selection instruments feature an extended 5-year warranty – a clear testament of our trust in their long-term reliability and performance.

Should a warranty case occur, you can count on a fast replacement process and minimal administrative effort – giving you peace of mind when it matters most and helping you keep your operations running smoothly.

Warranty terms apply

The extended warranty is subject to specific conditions. For full details, please refer to the locally applicable General Terms and Conditions (GTC), which can be found on the respective country page of our website.

Specs at a glance

Accuracy

+/- 5 mm (0,2")
Process temperature

-40…+60°C
(-40…+140°F)
Process pressure / max. overpressure limit

-1…3 bar (-14,50…43 psi)
Max. measurement distance

Standard: 8 m (26.2 ft)
With flooding protection tube: 12 m (39.4 ft)
Main wetted parts

PVDF, PBT

See all specifications

Field of application

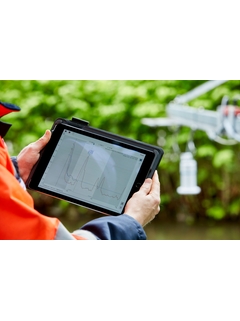

Micropilot FMR10 offers continuous non-contact level measurement and is a perfect application fit for the water & wastewater industry and utilities across all industries. FMR10 belongs to the first radars with Bluetooth® commissioning, operation and maintenance app. Signal curves can be shown via app on every Bluetooth®-enabled smartphone or tablet (iOS, Android). With the compact design, thanks to unique chip, the device is ideal for limited space applications.

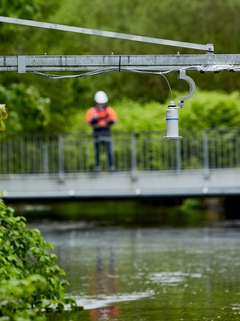

Radar for continuous level measurement in liquids. For use in storage tanks, open basins, pump/lift stations or sewer management.

Process connections: Threads
Process temperature: -40 to +60°C (-40 to +140°F)
Process pressure: -1 to +3bar (-14.5 to +43psi)
Maximum measuring range: up to 12m (39ft) with mounted flooding tube protection
Accuracy: ±5mm (0.2")
Measuring frequency: 26GHz

Benefits

Non-contact radar with Bluetooth® commissioning, operation and maintenance app
Most compact radar due to unique radar chip design offering perfect fit in limited space applications
Best price-performance-ratio radar
Perfect application fit for water & wastewater and utilities in all industries (IP66, IP68 / NEMA4x /6P)
Full PVDF body to resist outdoor conditions, sealed wiring and fully potted electronics eliminates water ingress and allows operation under harsh environmental conditions
Easy setup with three main parameters suits for most applications
Simple, safe and secure wireless remote access via Bluetooth®

Videos

Fundamental selection

Simple products
Easy to select, install and operate

Technical excellence

Simplicity

What is FLEX?

Simple products
Easy to select, install and operate

Technical excellence

Simplicity

What is FLEX?

Standard products
Reliable, robust and low-maintenance

Technical excellence

Simplicity

What is FLEX?

High-end products
Highly functional and convenient

Technical excellence

Simplicity

What is FLEX?

Specialized products
Designed for demanding applications

Technical excellence

Simplicity

Variable

What is FLEX?

FLEX selections	Technical excellence	Simplicity
F L E X Fundamental selection Meet your basic measurement needs	Technical excellence	Simplicity
F L E X Lean selection Handle your core processes easily	Technical excellence	Simplicity
F L E X Extended selection Optimize your processes with innovative technologies	Technical excellence	Simplicity
F L E X Xpert selection Master your most challenging applications	Technical excellence	Simplicity Variable

Learn more about the FLEX selections

Loading alternative products

Success stories

High plant availability in hydrogen production

Messer produces hydrogen in a steam reformer. The facility has a large number of protection and safety devices where pressure values play an important role.
Read the full story
Simple and efficient level measurements in sewer systems

Simple and efficient level measurements in sewer systems with the product familiy Micropilot FMR10B, FMR20B and FMR30B
Read the full story
Simple and efficient level measurements in open channels

Simple and efficient level measurements in open channels with the product familiy Micropilot FMR10B, FMR20B and FMR30B
Read the full story
Optimized logistics concept for tank systems

We implemented a highly effective logistics concept at chemicals distributors Brenntag Schweizerhall AG's Basel site.
Read the full story
Extend SIL proof test intervals with new Liquiphant FTL51

Discover how our customer CABB was able to extend SIL proof test intervals with the new Liquiphant FTL51
Read the full story
