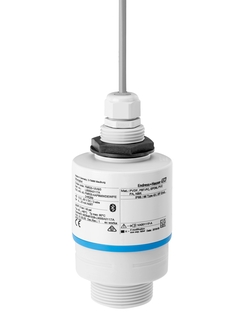

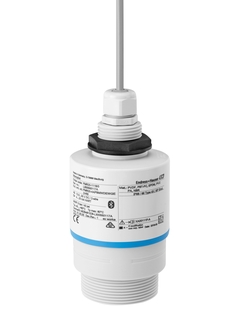

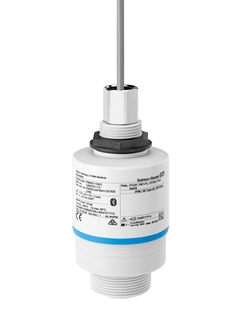

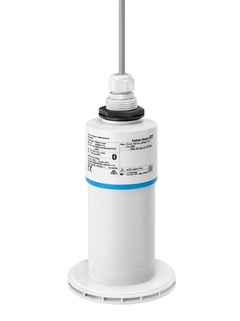

Micropilot FMR20

Micropilot FMR20

Micropilot FMR20

Micropilot FMR20

Commissioning of Micropilot FMR20

Micropilot FMR20

Micropilot FMR20

Micropilot FMR20

Micropilot FMR20

Micropilot FMR20

Micropilot FMR20

Level measurement in liquids for water & wastewater and utilities in all industries

Micropilot FMR20 offers continuous non-contact level and flow (via linearization table) measurement and is a perfect application fit for the water & wastewater industry and utilities across all industries. Commissioning is possible via HART or wireless via app using Bluetooth® or with remote display. Signal curves can be shown via app on every Bluetooth®-enabled smartphone/tablet (iOS, Android). With the compact design, thanks to unique chip, the device is ideal for limited space applications.

Add to Cart
Configure
Select & Size
Pricing after login and configuration

Compare

Additional components

RIA15
Loop-powered indicator for 4 to 20 mA or HART signals

For the indication of the 4 to 20 mA signal or the HART® values in the field or in the panel!
More information
Compare

Benefits

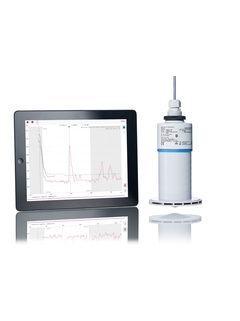

Non-contact radar with commissioning via HART or wireless via Bluetooth® app or with remote display

Most compact radar due to unique radar chip design offering perfect fit in limited space applications

Best price-performance-ratio radar

Perfect...

Show more
Non-contact radar with commissioning via HART or wireless via Bluetooth® app or with remote display

Most compact radar due to unique radar chip design offering perfect fit in limited space applications

Best price-performance-ratio radar

Perfect application fit for water & wastewater and utilities in all industries (IP66, 68 / NEMA4x, 6P)
Full PVDF body to resist outdoor conditions, sealed wiring and fully potted electronics eliminates water ingress and allows operation under harsh environmental conditions

Easy setup with three main parameters suits for most applications

Simple, safe and secure wireless remote access via Bluetooth® – even in hazardous areas or places difficult to reach

Show less

Field of application
Radar for continuous level measurement and flow measurement (with open channels or weirs, via linearization table) in liquids. For use in storage tanks, open basins, pump/lift stations or sewer management.

Process connections: Threads, flange versions

...

Show more
Radar for continuous level measurement and flow measurement (with open channels or weirs, via linearization table) in liquids. For use in storage tanks, open basins, pump/lift stations or sewer management.

Process connections: Threads, flange versions

Process temperature: -40 to +80°C (-40 to +176°F)

Process pressure: -1 to +3bar (-14.5 to +43psi)

Maximum measuring ranges 10m (33ft), 20m (66ft)

Accuracy: ±2mm (0.08")

Measuring frequency: 26GHz

International explosion protection certificates

Show less

Features and specifications

Back

Details

Measuring principle

Level radar
Characteristic / Application

- Water & Wastewater (e.g. basins / channels / rivers / dams / lift stations / storm water basins / pump control)

- Utility applications in all industries

- Storage tanks
Specialities

Bluetooth® commissioning,

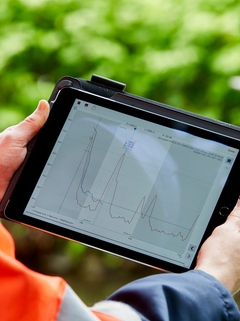

Operation and maintenance SmartBlue App
Supply / Communication

2-wire (HART, 4…20 mA, Modbus),

Bluetooth® wireless technology and App (optional)
Frequency

K-band (~26 GHz)
Accuracy

+/- 2 mm (0,08")
Process temperature

-40…+80°C (-40…+176°F)
Process pressure absolute / max. overpressure limit

-1…3 bar (-14,5…43 psi)
Main wetted parts

PVDF, PBT
Process connection

Thread:

G1", NPT1"; G1 1/2", NPT1 1/2", G2", NPT2",

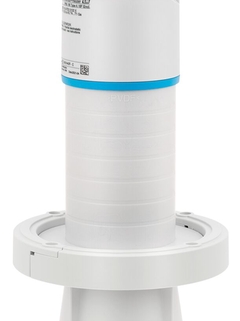

Flange:

UNI DN80….DN150 (3"…6")
Max. measurement distance

10m (DN40);

20m (= >DN80)
Communication

4...20mA HART

Modbus

Bluetooth® wireless technology
Certificates / Approvals

ATEX, CSA C/US, IEC Ex, NEPSI, EAC
Options

Remote operation via SmartBlue App using Bluetooth®,

Remote HART indicator RIA15 in order structure,

Flooding protection tube,

Different mounting possibilities
Application limits

FMR5x;

Ammoniacal gas phase:

FMR54 in stilling well;

Strong build-up formation:

FMR54 with air purge;
Only PTFE resistant:

FMR52;

Custody transfer measurement:

FMR5xx or NMR8x

Show more
Show less

Documents / Manuals / Software

Download type

Filter

Micropilot FMR20 Technical Information
Free space radar

Technical Information (TI)
Micropilot FMR20 Modbus RS485 Technical Information
Free space radar

Technical Information (TI)
Micropilot FMR20 HART Operating Instructions
Free space radar

Operating Instruction (BA)
Micropilot FMR20 MODBUS RS485 Operating Instructions
Free space radar

Operating Instruction (BA)
Micropilot FMR20 HART Brief Operating Instructions
Free space radar

Short Instruction (KA)

06/16

English
Micropilot FMR20 Modbus RS485 Brief Operating Instructions
Free space radar

Short Instruction (KA)

01/19

English
Slip on flange - Installation Instruction
Micropilot

Mounting Instruction (EA)
Installation Instruction Slip on flange
Micropilot

Mounting Instruction (EA)
Safety Instructions Micropilot FMR20
4-20 mA HART ATEX: II 1 G Ex ia IIC T4 Ga, II 1/2 G Ex ia IIC T4 Ga/Gb IECEx: Ex ia IIC T4 Ga, Ex ia IIC T4 Ga/Gb SEV 16 ATEX 0122 X; IECEx SEV 16.0004 X

Ex Safety Instructions (XA)
Micropilot FMR20 Ex ia IIC T4 Ga Ex ia IIC T4 Ga/Gb Safety Instructions
Microwave Level Measurement

Ex Safety Instructions (XA)
Micropilot FMR20 Ex ia IIC T4 Ga Ex ia IIC T4 Ga/Gb Safety Instructions
Microwave Level Measurement

Ex Safety Instructions (XA)
Micropilot FMR20 EAC: 0Ex ia IIC T4 Ga X Ga/Gb Ex ia IIC T4 X Safety Instructions
Run Time Measurement (TDR)

Ex Safety Instructions (XA)
Micropilot FMR20 Control Drawing IS Safety Instructions
Microwave Level Measurement

Ex Safety Instructions (XA)
Guide de sélection de mesure de niveau radar à émission libre
Liquides, solides en vrac, stockage, process et mesure transactionnelle

Publications (PU)

01/19

fr
Radar erreicht neue Dimensionen
Micropilot FMR10/FMR20 – innovativ und effizient

Innovations (IN)

08/16

German
Radar se dostává do nových dimenzí
Micropilot FMR10/FMR20 – inovativní a výkonný

Innovations (IN)

06/16

Czech
Radar stapt in een nieuwe dimensie
Micropilot FMR10/FMR20 – innovatief en efficiënt

Innovations (IN)

06/16

Dutch
Le radar entre dans une nouvelle dimension
Micropilot FMR10/FMR20 innovant et efficace

Innovations (IN)

06/16

fr
Radar steps into new dimensions
Micropilot FMR10/ FMR20- innovative and efficient

Innovations (IN)

06/16

English
Radar steps into new dimensions
American version: Micropilot FMR10/ FMR20- innovative and efficient

Innovations (IN)

06/16

English
La tecnologia radar entra in una nuova dimensione.
Micropilot FMR10/FMR20 – innovativi ed efficienti.

Innovations (IN)

06/16

Italian
Micropilot FMR20
Füllstand-Messwertaufnehmer und Umformer ausgeführt als Kompaktgerät zur kontinuierlichen Füllstandmessung in Lagertanks, offenen Bassins, Pumpenschächten und Kanalsystemen. Unabhängig von wechselnden Medien, Temperaturänderungen, Gaspolstern und Dämpfen in Behältern.

Tender Text

07/16

German
DTM Single, Micropilot_FMR20_HART_FW_1_00_zz_Dev_Rev_01, 15.03.2019 (Level, Micropilot, 0x112C)
HART, DeviceCare Version: 1.05.00 Field Xpert - SMT70 Version: 1.02.00 FieldCare Version: 2.13.00

Device Type Manager (DTM)

1.9.0.358

Language neutral
Pressebild PressEHM09
Endress+Hauser SE+Co. KG, Micropilot FMR20


12/16

Language neutral
Micropilot FMR10/FMR20 Added Value
Movie IT 1920x1080 mp4

Animation

09/16

Italian
Micropilot FMR10/FMR20 Added Value
Movie DE 1920x1080 mp4

Animation

08/16

German
Micropilot FMR10/FMR20 Added Value
Movie ES 1920x1080 mp4

Animation

08/16

Spanish
Micropilot FMR10/FMR20 Added Value
Movie EN 1920x1080 mp4

Animation

06/16

English
113GHz Campaign Micropilot 26GHz radar
Animation 1920x1080 mp4 FR

Video

08/17

fr
Micropilot FMR10/FMR20 Commissioning
Animation TR mp4 1920x1080

Video

08/17

Turkish
113GHz Campaign complete movie
Animation 1920x1080 mp4 FR

Video

08/17

fr
Micropilot FMR10/FMR20 Commissioning
Animation DE mp4 1920x1080

Video

08/16

German
Micropilot FMR10/FMR20 Commissioning
Animation ES mp4 1920x1080

Video

07/16

Spanish
113GHz Campaign Micropilot 26GHz radar
Animation 1920x1080 mp4 ES

Video

06/17

Spanish
Micropilot FMR10/FMR20 Commissioning
Animation EN mp4 1920x1080

Video

06/16

English
113GHz Campaign complete movie
Animation 1920x1080 mp4 DE

Video

04/17

German
113GHz Campaign Micropilot 26GHz radar
Animation 1920x1080 mp4 DE

Video

04/17

German
113GHz Campaign Micropilot 26GHz radar
Animation 1920x1080 mp4 EN

Video

03/17

English
113GHz Campaign complete movie
Animation 1920x1080 mp4 EN

Video

03/17

English
Micropilot
Product Code: FMR20- Declaration Number: HE_00836_01.17 Manufacturer Specification: RoHS

Manufacturer Declaration

Chinese
Micropilot
Product Code: FMR20- Declaration Number: HE_00593_01.17 Manufacturer Specification: RoHS

Manufacturer Declaration

Chinese
Micropilot
Product Code: FMR20- Declaration Number: EC_00399_04.16

EU Declaration

German , English , fr
Micropilot
Product Code: FMR20- Declaration Number: EC_00400_04.16

EU Declaration

German , English , fr
SYSTEM, Pumpenschutz, Nivotester FailSafe, Nivotester, Micropilot S, Micropilot, Liquipoint T, Liquipoint, Liquiphant T, Liquiphant S, Liquiphant M, Liquiphant FailSafe, Liquiphant, Liquicap T, Liquicap M, Levelflex, Floating Switch, Einstabsonde, Dreistabsonde, Doppelstabsonde
Product Code: FTL70-, FTL51H-, FTL51C-, FTL51-, FTL50H-, FTL50-, FTL375P-, FTL33-, FTL325P-, FTL325N-, FTL31-, FTL260-, FTI52-, FTI51-, FTL71-, FTL80-, FTL81-, FTL825-, FTL85-, FTS20-, FTW23-, FTW31-, FTW32-, FTW325-, FTW33-, FTW360-, NMR81-, NMR84-, 11362Z-, 11363Z-, 11371-, 11375Z-, 11961Z-, FMI21-, FMI51-, FMI52-, FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMR10-, FMR20-, FMR50-, FMR51-, FMR52-, FMR53-, FMR530-, FMR532-, FMR533-, FMR54-, FMR540-, FMR60-, FMR62-, FTC325- Region/Country: Russia (Declaration of Conformity) Approval Number: RU D-DE.MO10.B.05531

Miscellaneous

Russian
SYSTEM, Pumpenschutz, Nivotester FailSafe, Nivotester, Micropilot S, Micropilot, Liquipoint T, Liquiphant T, Liquiphant S, Liquiphant M, Liquiphant FailSafe, Liquiphant, Liquicap T, Liquicap M, Levelflex, Floating Switch
Product Code: FTL260-, FTL31-, FTL325N-, FTL325P-, FTL33-, FTL375P-, FTL50-, FTL50H-, FTL51-, FTL51C-, FTL51H-, FTL70-, FTL71-, FTL80-, FTL81-, FTL825-, FTL85-, FTS20-, FTW31-, FTW32-, FTW325-, FTW360-, NMR81-, NMR84-, FTI52-, FMI21-, FMI51-, FMI52-, FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMR10-, FMR20-, FMR50-, FMR51-, FMR52-, FMR53-, FMR530-, FMR532-, FMR533-, FMR54-, FMR540-, FMR60-, FMR62-, FTC325-, FTI51- Region/Country: Russia (Declaration of Conformity) Approval Number: RU D-DE.MO10.B.05528

Miscellaneous

Russian
Micropilot, Micropilot M, Micropilot S, SYSTEM
Product Code: NMR84-, NMR81-, FMR540-, FMR54-, FMR533-, FMR532-, FMR530-, FMR53-, FMR52-, FMR51-, FMR50-, FMR231-, FMR230-, FMR20-, FMR10- Region/Country: Russia (TR CU) Approval Agency: EAC Approval Number: TС RU D-DE.MU62.B.02537

Miscellaneous

Russian
Levelflex, Micropilot, Micropilot M, Micropilot S, SYSTEM
Product Code: NMR84-, NMR81-, FMR540-, FMR54-, FMR533-, FMR532-, FMR530-, FMR53-, FMR52-, FMR51-, FMR50-, FMR231-, FMR230-, FMR20-, FMR10-, FMP55-, FMP54-, FMP53-, FMP52-, FMP51-, FMP50- Region/Country: Russia (TR CU) Approval Agency: EAC Approval Number: TC № RU D-DE.AL32.B.07215

Miscellaneous

Russian
Micropilot
Product Code: FMR20- Region/Country: Brazil Approval Agency: INMETRO Protection: Ex ia IIC T4 Ga, Ex ia IIC T4 Ga/Gb

Explosion Protection

Portuguese
Micropilot
Product Code: FMR20- Region/Country: China Approval Agency: NEPSI Protection: Ex ia IIC T4 Ga, Ex ia IIC T4 Ga/Gb

Explosion Protection

Chinese
Micropilot
Product Code: FMR20- Region/Country: International (IECEx) Approval Agency: SEV Protection: Ex ia IIC T4 Ga, Ex ia IIC T4 Ga/Gb

Explosion Protection

English
Micropilot
Product Code: FMR20- Region/Country: International (IECEx) Approval Agency: SEV Protection: Ex ia IIC T4 Ga, Ex ia IIC T4 Ga/Gb

Explosion Protection

English
Micropilot
Product Code: FMR20- Region/Country: Russia (TR CU) Approval Agency: EAC Protection: Ex ia

Explosion Protection

Russian
Micropilot
Product Code: FMR20- Region/Country: Europe (ATEX) Approval Agency: SEV Category: II 1/2 G, II 1 G Protection: Ex ia IIC T4 Ga, Ex ia IIC T4 Ga/Gb

Explosion Protection

English
Micropilot
Product Code: FMR20- Region/Country: Canada, USA

Explosion Protection

English
Micropilot
Product Code: FMR20-, FMR10- Region/Country: USA Approval Agency: FCC

Radio Equipment

English
Micropilot
Product Code: FMR10-, FMR20- Region/Country: USA Approval Agency: FCC

Radio Equipment

Japanese
Micropilot
Product Code: FMR20-, FMR10- Region/Country: USA Approval Agency: FCC

Radio Equipment

English
Micropilot
Product Code: FMR20-, FMR10- Region/Country: USA Approval Agency: FCC

Radio Equipment

English
Micropilot
Product Code: FMR10-, FMR20- Region/Country: USA Approval Agency: FCC

Radio Equipment

English
Micropilot
Product Code: FMR20-, FMR10- Region/Country: USA Approval Agency: FCC

Radio Equipment

English
Micropilot
Product Code: FMR10-, FMR20- Region/Country: USA Approval Agency: FCC

Radio Equipment

English
Micropilot S, Liquiphant S, Levelflex, Micropilot, Liquiphant M, Minicap, Nivector, Prosonic M, Prosonic S, Prosonic T, Pumpenschutz, Solicap M, Solicap S, Soliphant M, Soliphant T, SYSTEM, Liquipoint T, Liquipoint, Liquiphant FailSafe, Liquiphant, Liquicap T, Liquicap M, Einstabsonde, Dreistabsonde, Doppelstabsonde
Product Code: FTL51-, FMP54-, FMP52-, FMR52-, FMR54-, FMP57-, FMP55-, FMP51-, FMR51-, FMR57-, FMP53-, FMR56-, FMP56-, FMR53-, FMR50-, FMP50-, FMU41-, FMU42-, FTL51H-, FTL50H-, FMU43-, FMU44-, FTL51C-, FTL70-, FMU40-, FMI52-, FTL50-, FTL71-, FTM51-, FTI52-, FMR532-, FTL81-, FMI51-, FMR533-, FTI51-, FTL85-, FTM52-, FTL33-, FTL31-, FTI77-, FTI56-, FTI55-, FTC968Z-, FTC262-, FTC260-, FTL80-, FTM20-, FTM21-, FTM50-, FTW23-, FTW31-, FTW32-, FTW33-, FTW360-, NMR84-, NMR81-, 11263-, 11362Z-, 11363Z-, 11375Z-, 11961Z-, FDU90-, FDU91-, FDU91F-, FDU92-, FDU95-, FDU96-, FDU93-, FMI21-, FMU30-, FMR540-, FMR530-, FMR10-, FMR20- Approval Agency: TÜV

Pressure Equipment

German , English
Micropilot, Micropilot S, SYSTEM
Product Code: NMR84-, NMR81-, FMR67-, FMR62-, FMR60-, FMR57-, FMR56-, FMR540-, FMR54-, FMR533-, FMR532-, FMR530-, FMR53-, FMR52-, FMR51-, FMR50-, FMR20-, FMR10- Region/Country: Belarus Approval Agency: BEL Approval Number: 10554

Metrology

Russian
Micropilot
Product Code: FMR10-, FMR20- Region/Country: Russia Approval Agency: Rosstandart Approval Number: DE.C.29.004.A_65402

Metrology

Russian
Micropilot
Product Code: FMR10-, FMR20- Region/Country: China Approval Number: PAC 2017-L111

Metrology

Chinese
Micropilot
Product Code: FMR10-, FMR20- Region/Country: Canada, USA

Ordinary Location Product Safety

English

Show more
Show less

Accessories / Spare parts

Search

Filter

Nr

Order code

Specification

- Order code

  Unit is not repairable.

  Show details Show less
- Order code 52000598

  Hexagon nut (SW70) G2, bk, PC

  Usage: sensor 2", FMR10, FMR20, FMU30, FMU40/FMU41.

  Show details Show less
- Order code 71162777

  UNI slip on flange 3"/DN80/80, PP

  Max 4bar abs/58psia, suitable for: NPS 3" Cl.150 / DN80 PN16 / 10K 80. Usage: FMR20, FMR50/FMR56, 80mm/3" horn, 3" 150lbs/DN80 PN16/10K 80.

  Show details Show less
- Order code 71162778

  UNI slip on flange 4"/DN100/100, PP

  Max 4bar abs/58psia, suitable for: NPS 4" Cl.150 / DN100 PN16 / 10K 100. Usage: FMR20, FMR50/56, 80mm/3" horn, 4" 150lbs/DN100 PN16/10K 100.

  Show details Show less
- Order code 71162780

  UNI slip on flange 6"/DN150/150, PP

  Max 4bar abs/58psia, suitable for: NPS 6" Cl.150 / DN150 PN16 / 10K 150. Usage: FMR50/56, 80mm/3" horn. 6" 150lbs/DN150 PN16/10K 150. Usage: FMR20.

  Show details Show less
- Order code 71325087

  HART communication resistor Ex / non Ex

  Usage: FMG50, FMR20, FMX21 with RIA15.

  Show details Show less
- Order code 52014146

  Mounting nut G1-1/2

  Hexagon, SW60. Usage: Liquipoint T, Liquicap T, Prosonic M FMU40, Prosonic T FMU30, FMR10, FMR20.

  Show details Show less
- Order code 71325090

  Flood.protect.tube DN40/G1 1/2" FMR10/20

  Material: metallized PBT-PC. Suitable for 40mm/1-1/2" antenna with G1-1/2 front side connection. Usage: FMR10, FMR20.

  Show details Show less
- Order code 71327051

  Flooding protection tube DN80/3"FMR20

  Material: metallized PBT-PC. Suitable for 80mm/3" antenna. Usage: FMR20.

  Show details Show less
- Order code 71325079

  Mounting bracket adjustable, 316L

  Usage: FDU90, FMR10, FMR20.

  Show details Show less
- Order code 52025686

  Weather protect. cover FDU90/91,FMR10/20

  Material: PVDF. Usage: FDU90/FDU91, FMR10, FMR20.

  Show details Show less

Show more
Show less

Success stories

News
Radar steps into new dimensions

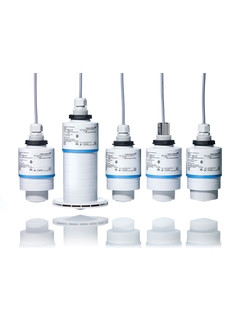

Micropilot FMR10/FMR20 - innovative and efficient. Non-contact radar level measurement for the water & wastewater industry and for utilities in all industries.
More information

News
Unstable measurement in your ammonia separator?

Our Levelflex FMP is the reliable level measurement sensor for hazardous liquids such as ammonia. Find out more about how to achieve a safe and efficient chemical process at the same.
Unstable measurement in your ammonia separator?

News
How can you effectively keep fractionation under control?

Guided wave radar compared to mechanical gauges is one solution for your level measurement to keep your olefin fractionation effectively under control and prevent unplanned shutdowns.
More information
Upcoming events
09.09.2019 - 13.09.2019

Certified Training for PROFIBUS DP/PA Engineer

With the help of actual hands-on tasks you will learn how PROFIBUS fieldbus technology works in detail. At the end of the course you will be able to design and commission a PROFIBUS fieldbus network.

Upcoming events
22.10.2019 - 25.10.2019

Certified Training for PROFIBUS PA Engineer

With the help of actual hands-on tasks you will learn how PROFIBUS fieldbus technology works in detail.
