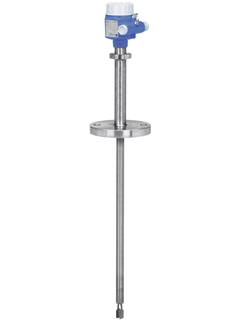

Liquiphant FTL71
Point level switch with extension tube for liquids in high-temperature applications
Liquiphant FTL71 is a point level switch with extension tube for use in hazardous areas with all international certificates. FTL71 is especially designed for applications with high process temperatures up to 280°C and can be used up to SIL2, in homogeneous redundancy up to SIL3. An integrated second line of defense offers the highest degree of safety. Reliable measurement values, not affected by: changing media properties, flow, turbulences, gas bubbles, foam, vibrations or build-up.
- F
- L
- E
- X
-
Standard products
- Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
Specialized products
- Designed for demanding applications
Technical excellence
Simplicity
Variable
FLEX selections | Technical excellence | Simplicity |
---|---|---|
Fundamental selection Meet your basic measurement needs |
Technical excellence
|
Simplicity
|
Lean selection Handle your core processes easily |
Technical excellence
|
Simplicity
|
Extended selection Optimize your processes with innovative technologies |
Technical excellence
|
Simplicity
|
Xpert selection Master your most challenging applications |
Technical excellence
|
Simplicity
Variable |
-
Specs at a glance
-
Process temperature
-60 °C...+280 °C
(-76 °F...+540 °F)
(300°C / 572°F, 50h cumulated) -
Process pressure absolute / max. overpressure limit
Vacuum...100 bar
(Vacuum...1450 bar) -
Min. density of medium
0.5g/cm³ (0.4g/cm³ optional)
-
Quick selection
Individual configuration
-
Benefits
Use in safety systems requiring functional safety to SIL2 in accordance with
IEC 61508/IEC 61511-1With welded gas-tight feed-through maximum safety in the event of damaged sensor
Wide variety of electronics, e.g. NAMUR, relay, thyristor, PFM signal...
-
Field of application
Point level switch for all liquids.
Process connections: Threads and flanges
Temperature: -60 to +280°C (-76 to +540°F)
Pressure: -1 to +100bar (-14.5 to +1,450psi)
Sensor material: 316L, Alloy (PFA and Enamel on request)
