Digital free bromine sensor
Memosens CCS55D

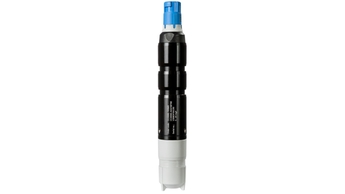

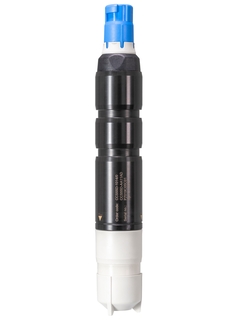

Memosens CCS55D: Digital free bromine sensor

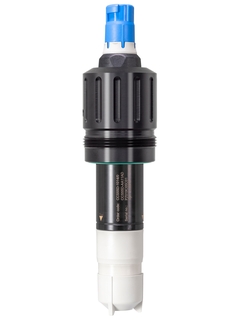

Memosens CCS55D free bromine sensor with adapter for installation in CCA151 flow assembly

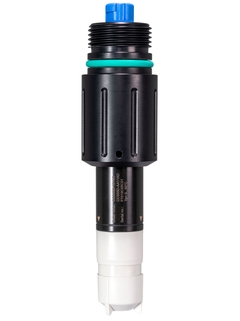

Memosens CCS55D free bromine sensor with adapter for installation in CCA250 flow assembly

Memosens CCS55D free bromine sensor with adapter for installation in CYA112 immersion assembly

Memosens converts the measured value to a digital signal and transfers it to the transmitter without a contacting connection. This video shows how Memosens optimizes process control and maintenance.

Memosens sensor for seawater and process water

Memosens CCS55D is a low-maintenance sensor for free bromine. It provides high-precision, stable measurement in seawater for desalination plants, process or cooling water, swimming pools and fish farming industry. The free bromine sensor ensures safe disinfection with bromine even at low water volumes. It features fast response times guaranteeing efficient process control. Thanks to Memosens digital technology, CCS55D combines maximum process and data integrity with simple operation.

Sizing
Pricing after login and configuration

Compare

Quick selection

Choose from our suggested options

<%label%>
-- selected coding

-- selected label
<%label%>
Looking for more options? Please use the individual configurator to continue
<%feature%>
-- selected coding

-- selected label
<%feature%>
<%coding%>

<%label%>

Looking for more options? Please use the individual configuratorto continue
Process Connection
<%coding%>

<%label%>

<%coding%>

<%label%>

<%message%>

Optional add-ons

Please use the individual configurator to continue

Individual configuration

Continue your selection from all possible options

Configure

Benefits
The right sensor version for every application: From trace measurement up to free bromine concentrations of 200 mg/l.

Fast response time (t₉₀ < 20 s) provides an accurate process view and enables prompt reaction to process changes as well as efficient...

Show more
The right sensor version for every application: From trace measurement up to free bromine concentrations of 200 mg/l.

Fast response time (t₉₀ < 20 s) provides an accurate process view and enables prompt reaction to process changes as well as efficient process control. No inactivation in bromine-free media ensures fast measurement after addition of bromine.

Increased process safety: precise and long-term stable measurement ensures consistent process monitoring and allows for individually adapted disinfectant dosing.

Safe disinfection in seawater applications since disinfection with chlorine forms bromine compounds when used in seawater. Chlorine monitoring would lead to measurement errors underestimating the disinfection effect.

More process up-time thanks to fast sensor exchange: pre-calibrate the sensor in your lab and then swap it into your process with plug & play.

Connection to the Liquiline multiparameter transmitter allows for easy combination with other relevant parameters of liquid analysis such as pH and ORP.

Show less

Field of application
The Memosens CCS55D free bromine sensor is suitable for a wide range of water qualities:
Seawater applications such as desalination plants - to ensure reliable disinfection and avoid overdosing
Food industry - to provide accurate control of water in fish...

Show more
The Memosens CCS55D free bromine sensor is suitable for a wide range of water qualities:
Seawater applications such as desalination plants - to ensure reliable disinfection and avoid overdosing
Food industry - to provide accurate control of water in fish farming
Process and cooling water - where bromine disinfectants are used due to their reduced corrosion effect
Pool water, therapeutic baths - where bromine is used due to the salinity of the water and as alternative to chlorine

Show less

Features and specifications

Back

Details

Measuring principle

Free bromine
Application

Seawater - to ensure reliable disinfection

Process water - wide range of application due to large measuring range

Pool water - efficient dosing thanks to precise measurement
Characteristic

Amperometric measurement of dissolved free bromine
Measurement range

Trace: 0 ... 5 mg/l HOBr

Standard: 0 ... 20 mg/l HOBr

High: 0 ... 200 mg/l HOBr
Measuring principle

Closed, membrane covered measuring cell

Reduction of free bromine at the working electrode
Design

Closed amperometric 2-electrode measuring cell with PET membrane
Material

Sensor shaft: PVC

Membrane: PET

Membrane cap: PVDF
Dimension

Diameter: 25 mm (0.98 in)

Length: 161 mm (6.34 in)
Process temperature

+0...55 °C (32 ... 130°F), non-freezing
Process pressure

Max. 1 bar (max. 14.5 psi)
Temperature sensor

10k NTC integrated (Memosens)
Connection

Inductive, digital connection head with Memosens technology

Show more
Show less
