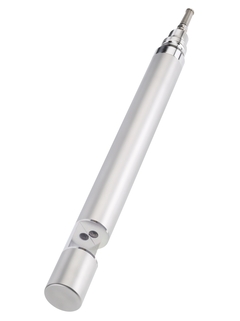

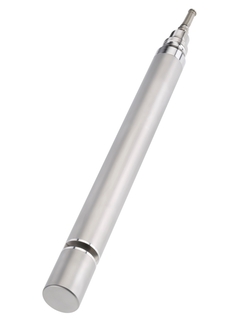

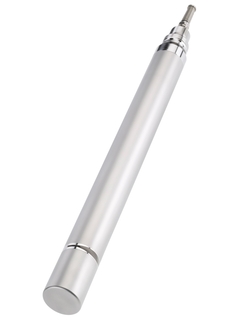

Digital nitrate or SAC sensor Viomax CAS51D

Digital nitrate or SAC sensor Viomax CAS51D ©Endress+Hauser
Digital nitrate or SAC sensor Viomax CAS51D ©Endress+Hauser
Digital nitrate or SAC sensor Viomax CAS51D ©Endress+Hauser
  • Digital nitrate or SAC sensor Viomax CAS51D
  • Digital nitrate or SAC sensor Viomax CAS51D
  • Digital nitrate or SAC sensor Viomax CAS51D

Memosens sensor for optical nitrate or SAC measurement in water, wastewater and utilities

Viomax CAS51D is a smart sensor that allows unattended operation in a wide range of process conditions. Just immerse it into your process and measure. The sensor's unique design is extremely robust and it is also low-maintenance thanks to its self-cleaning functionality. With Memosens digital technology, CAS51D combines maximum process and data integrity with simple operation. It enables lab calibration and simplifies predictive maintenance.

Extended selection
  • F
  • L
  • E
  • X

  • Simple products

  • Easy to select, install and operate

Technical excellence

Simplicity

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity

  • Specialized products

  • Designed for demanding applications

Technical excellence

Simplicity

Variable

FLEX selections Technical excellence Simplicity
  • F
  • L
  • E
  • X

Fundamental selection

Meet your basic measurement needs

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Lean selection

Handle your core processes easily

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Extended selection

Optimize your processes with innovative technologies

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Xpert selection

Master your most challenging applications

Technical excellence
Simplicity

Variable

  • Specs at a glance

    • Measurement range

      0.01 to 20 mg/l / 0.1 to 50 mg/l NO3-N
      0.04 to 80 mg/l / 0.4 to 200 mg/l NO3
      0.1 to 50 1/m / 0.5 to 250 1/m / 1.5 to 700 1/m SAC
      0.15 to 75 mg/l / 0.75 to 370 mg/l / 2.5 to 1000 mg/l COD (254nm)
      0.06 to 30 mg/l / 0.3 to 150 mg/l / 0.9 to 410 mg/l TOC (254nm)

    • Process temperature

      5 to 50°C (41 to 120 °F)

Loading alternative products

Quick selection

Choose from our suggested options
Sales price
    -- selected coding
    -- selected label
    99.999,00
    <%label%>
    -- selected coding
    -- selected label
    99.999,00
    <%feature%>
  • Process Connection
      <%label%>
      99.999,00
      <%label%>
      99.999,00

  • <%message%>

CAS51D
Show details Hide details
Show details
Back to Quick Selection
  • <%feature%>
    <%coding%>
    <%label%>
pc
Loading price
Prices temporarily unavailable
from CHF 803.-
  • Optional add-ons
Please use the individual configurator to continue
or

Individual configuration

Continue your selection from all possible options

Additional components

  • Benefits

    • Cost-effective: Easy, chemical-free handling is safe, environmentally friendly and saves on operational expenditure.

    • Extremely fast response time: Measured value processing in the sensor provides reliable real-time process information.

    • Fast and easy...

  • Field of application

    Viomax CAS51D measures nitrate or SAC in drinking water, process water and wastewater applications as well as the utilities sector:

    • Organic load or nitrate in inlet and outlet

    • Determination of CODeq or TOCeq

    • Monitoring, control and optimization of...

Features and specifications

Back

Details

  • Measuring principle

    UV photometric

  • Characteristic

    Insitu (immersion in process), extractive with sample and flow cell
    Optical photometric sensor for nitrate and SAC

  • Size

    388 / 394 mm x 40 mm, depends on version

  • Design

    40 mm sensor, stainless steel 316L

  • Process temperature

    5 to 50°C (41 to 120 °F)

  • Ambient temperature

    -20 to 60 °C (-4 to 140 °F)

  • Specials

    G1, NPT3/4
    IP68 (1m/3,3ft) water column with 1N KCl during 60d ays

  • Application

    Drinking water, biological waste wate process, WWTP effluent
    Monitoring of surface water

  • Measurement range

    0.01 to 20 mg/l / 0.1 to 50 mg/l NO3-N
    0.04 to 80 mg/l / 0.4 to 200 mg/l NO3
    0.1 to 50 1/m / 0.5 to 250 1/m / 1.5 to 700 1/m SAC
    0.15 to 75 mg/l / 0.75 to 370 mg/l / 2.5 to 1000 mg/l COD (254nm)
    0.06 to 30 mg/l / 0.3 to 150 mg/l / 0.9 to 410 mg/l TOC (254nm)
