Digital ozone sensor
Memosens CCS58D

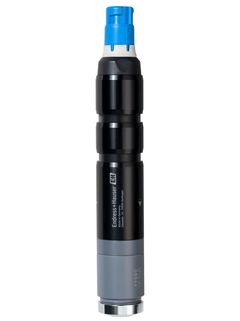

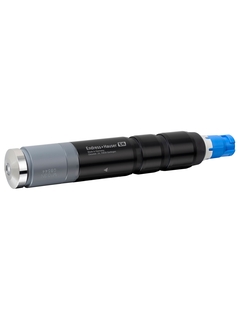

Memosens CCS58D: Digital ozone sensor ©Endress+Hauser

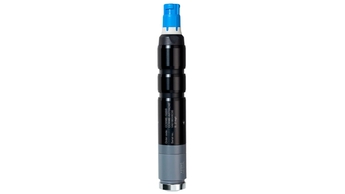

Memosens CCS58D digital ozone sensor for drinking water, wastewater and process water ©Endress+Hauser

Memosens converts the measured value to a digital signal and transfers it to the transmitter without a contacting connection. This video shows how Memosens optimizes process control and maintenance.

Memosens sensor for drinking water, wastewater and process water in all industries

Memosens CCS58D is a low-maintenance sensor for ozone. It provides high-precision measurement with an almost exclusive specificity for ozone, ensuring reliable disinfection monitoring. The robust sensor membrane with its high surfactant resistance makes the sensor suitable for diverse applications, e.g. bottle cleaning. Thanks to Memosens digital technology, CCS58D combines maximum process and data integrity with simple operation and provides the perfect basis for predictive maintenance.

  • Simple products

  • Easy to select, install and operate

Technical excellence

Simplicity

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity

  • Specialized products

  • Designed for demanding applications

Technical excellence

Simplicity

Variable

FLEX selections Technical excellence Simplicity
  • F
  • L
  • E
  • X

Fundamental selection

Meet your basic measurement needs

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Lean selection

Handle your core processes easily

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Extended selection

Optimize your processes with innovative technologies

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Xpert selection

Master your most challenging applications

Technical excellence
Simplicity

Variable

  • Specs at a glance

    • Measurement range

      0.1 to 2 mg/l

    • Process temperature

      +0 to 45 °C (32 to 110 °F), non freezing

    • Process pressure

      1 bar (14.5 psi), 2 bar (29 psi) absolute

    • Measuring method

      - closed 2 electrode system
      - conversion of ozone into a signal current in nA
      - signal current is proportional to the concentration of ozone
      - the measurement is not pH dependent

please wait Loading alternative products

Quick selection

Choose from our suggested options
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

or

Individual configuration

Continue your selection from all possible options
  • Benefits

    • Almost exclusive specificity for ozone ensures reliable measured values for safe disinfection processes.

    • Robust membrane technology guarantees high surfactant resistance and optimum suitability for cleaning processes such as bottle cleaning.

    • Integrated...

  • Field of application

    Memosens CCS58D is an ozone sensor for skid builders and end customers. It measures reliably in:

    • Drinking water - to ensure sufficient disinfection

    • Process water - to provide hygienic packaging and bottling

    • Wastewater - to guarantee safe discharge water

Features and specifications

Back

Details

  • Measuring principle

    Ozone

  • Application

    Drinking water - ensures adequate disinfection

    Process water - for hygienic packaging and filling

    Wastewater - to ensure safe discharge water

  • Characteristic

    Amperometric measurement of dissolved ozone

  • Measurement range

    0.1 to 2 mg/l

  • Measuring method

    - closed 2 electrode system

    - conversion of ozone into a signal current in nA

    - signal current is proportional to the concentration of ozone

    - the measurement is not pH dependent

  • Design

    - exchangeable, electrolyte-filled membrane cap

    - working and counter electrode

    - adaptable shaft for flexible installation in assemblies

  • Material

    Sensor shaft: PVC

    Membrane: Silicone

    Membrane cap: PVC

  • Dimension

    Diameter: 25 mm (0.98 in)

    Length: 161 mm (6.34 in)

  • Process temperature

    +0 to 45 °C (32 to 110 °F), non freezing

  • Process pressure

    1 bar (14.5 psi), 2 bar (29 psi) absolute

  • Temperature sensor

    10k NTC integrated (Memosens)

  • Connection

    Inductive, digital connection head with Memosens

Documents / Manuals / Software

Accessories / Spare parts

Nr
Order code
Specification
    • Order code 71372025

      Kit Adapter CCS5x + CCS5xD for CCA250

    • Order code 71372026

      Kit Adapter CCS5x + CCS5xD for CYA112

    • Order code 71372027

      Kit adapter CCS5x(D) for CYA27+CCA151

      Content: Clamp ring, thrust ring, + sealing

    • Order code 71372025

      Kit Adapter CCS5x + CCS5xD for CCA250

    • Order code 71372026

      Kit Adapter CCS5x + CCS5xD for CYA112

    • Order code 71372027

      Kit adapter CCS5x(D) for CYA27+CCA151

      Content: Clamp ring, thrust ring, + sealing

    • Order code 71257946

      photometer M+N PF-3, disinfection

      colorimetric measurement of free and total chlorine 0,05 - 6mg/l Disinfection, drinking and process water hand held photometer, IP67-graded, with cuvettes, DPD, according to ISO 7393 delivery in plastic case, test kit for free and total chlorine included hand-held photometer for calibration and verification of disinfection loops

    • Order code CCV05-

      Maintenance kits CCV05

      Memosens CCSxxD/fixed cable sensor CCSxx

    • Order code COY8-

      Zero-point gel COY8

      Zero point: Verification, calibration, adjustment at zero point of oxygen and disinfection sensors ::Amperometric and optical sensors ::12, 25 and 40mm diameter ::Application in the lab, in the field
