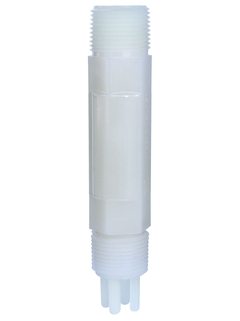

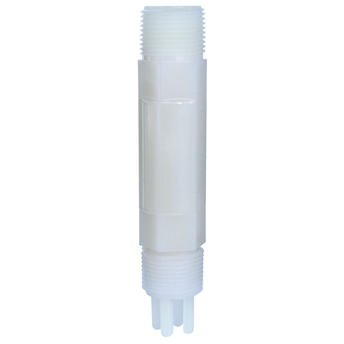

Process assembly
Ecofit CPA640
Universal assembly mainly for water and wastewater
The Ecofit CPA640 is a universal process assembly for fixed installation of any kind of 120 mm sensor (Pg 13.5) in water and process applications (utilities). Its threaded connections and various seal materials enable you to perfectly adapt it to all kinds of processes. Ecofit is the simple, but flexible solution wherever cost-saving is mandatory.
-
Standard products
- Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
Specialized products
- Designed for demanding applications
Technical excellence
Simplicity
Variable
| FLEX selections | Technical excellence | Simplicity |
|---|---|---|
Fundamental selection Meet your basic measurement needs |
Technical excellence
|
Simplicity
|
Lean selection Handle your core processes easily |
Technical excellence
|
Simplicity
|
Extended selection Optimize your processes with innovative technologies |
Technical excellence
|
Simplicity
|
Xpert selection Master your most challenging applications |
Technical excellence
|
Simplicity
Variable |
-
Benefits
Suitable for all standard sensors with Pg 13.5 and 120 mm (4.72") length
Quick installation and removal thanks to threaded connection
Various seal materials for perfect adaptation to all kinds of processes
Cost-efficient possibility of installing analog...
-
Field of application
Ecofit CPA640 is intended for installation in pipes in:
Wastewater treatment
Water treatment
Condensate treatment
Cooling water circuits
It is suitable to be used with pressures of up to 10 bar.
Documents / Manuals / Software
-
Ecofit CPA640
Technische Information
For the installation of 120 mm sensors for all areas of water management
and industryTechnical Information (TI) -
Ecofit CPA640
Betriebsanleitung / Operating Instructions
Universelle Kompaktarmatur
Operating Instruction (BA) -
Manufacturer Declaration
TSE/BSE free
Certificate (ZE) -
pH 測定セレクションガイド
産業プロセスにおける pH 測定
Competence Brochure (CP)08/15Japanese -
CP00010C pH measurement in industrial processes for US market
Selection and engineering guide for your industry and application
Competence Brochure (CP)04/15English -
Measurement and control aspect of pH using inductively coupled with
bidirectional Memosens technology in flue gas desulfurization process
White Paper CP971C pH measurement and control in a power utility is an
integral part of process. The scrubber efficiency is highlydependent on
the pH. Numerous opportunities were revealed for saving time, as well as
the cost and materials in power plants. In afossil fuel power plant,
the
chemical energy stored in coal, oil, natural gas, shale oil, oxygen and
air
is converted into thermal, mechanical and finally into electrical
energy. In
other words, water is heated to steam, which spins a steam turbine. The
steam turbine drives an electrical generator.Competence Brochure (CP)04/11English -
pH-Messung in Industrieprozessen
Auswahl- und Engineering-Hilfe für verschiedene Industriebranchen und
ApplikationenCompetence Brochure (CP)03/20German -
pH measurement in industrial processes
Selection and engineering guide for different industries and
applicationsCompetence Brochure (CP)02/20English -
CP01202C pH Sensors:Calibrate, clean, perform a calibration check
or...?
This white paper will address
Knowing when to do a pH sensor calibration versus a calibration
check
How to properly clean a pH sensor
How to perform a pH sensor calibration
A decision tree for step by step guidanceCompetence Brochure (CP)02/12English -
Ecofit CPA 640
Adapter für Anbringung der Elektrode CPS 11D an Armatur CYA 611
Tender Text12/12German -
EcoFit
Product Code: CPA640-
Declaration Number: HE_01376_01.20
Manufacturer Specification: Explosion protectionManufacturer DeclarationGerman , English
Accessories / Spare parts
-
-
Order code 50009961
O-RING VITON ID 10.82mm OD 14.38mm Wall
-
-
Predecessor
