The durable holder for tanks with aggressive media

Show all products: Liquid analysis

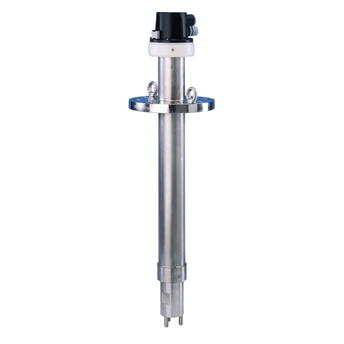

Dipfit CPA140 - Immersion assembly for pH/ORP sensors in aggressive media

Specs at a glance

Process temperature

Max. 150 °C (302 °F)
Process pressure

Max. 10 bar (145 psi)

See all specifications

Field of application

The Dipfit CPA140 immersion assembly is designed for all demanding applications where aggressive media are involved. With its flange connection, Dipfit is installed safely in the process and offers space for three sensors. Its bayonet lock offers you easy sensor installation even in sticky media or media containing solid particles, thus saving time for maintenance and recalibration.

Dipfit CPA140 is intended to be used in closed tanks in:

Chemical industry
Petrochemical industry
Life sciences
Power plants and waste incinerating plants
Extractive metallurgy and metal processing

It is suitable for use with pressures of up to 10 bar (stainless steel) or 6 bar (PVDF).

Benefits

Simple installation and removal of the electrode holder thanks to bayonet lock
Flexible connection to the process by means of various flanges (DIN, ANSI, JIS)
Less condensation due to a Goretex filter
Reduces installation effort by providing 3 mounting positions for 120 mm sensors plus a cleaning unit

Success stories

Monitoring Emulsion Polymerization Reactions

Process optimization via reaction endpoint detection and control of kinetics
Read the full story
Semi-batch polymerization

Monitoring and control of a semi-batch polymerization with Raman analyzer, powered by Kaiser Raman technology
Read the full story
Cooling water directly from the Baltic Sea

With the CUS52D, power plant operator KNG benefits from reduced maintenance costs due to reliable, stable measurement even under harsh conditions in salt water.
Read the full story
Process automation worth its weight in gold

Memosens pH sensors reduced the time spent on calibrations and field repairs by up to 90% at Agnico Eagle's gold mine in Kittilä, the largest primary gold producer in Europe.
Read the full story
Keeping the turbine running

Heizkraftwerk Zwickau Süd GmbH (HKWZS) has built a new biomass power plant to supply the city of Zwickau. The plant was equipped with state-of-the-art analytical solution SWAS.
Read the full story

Simple products
Easy to select, install and operate

Technical excellence

Simplicity

What is FLEX?

Standard products
Reliable, robust and low-maintenance

Technical excellence

Simplicity

What is FLEX?

High-end products
Highly functional and convenient

Technical excellence

Simplicity

What is FLEX?

Specialized products
Designed for demanding applications

Technical excellence

Simplicity

Variable

What is FLEX?

FLEX selections	Technical excellence	Simplicity
F L E X Fundamental selection Meet your basic measurement needs	Technical excellence	Simplicity
F L E X Lean selection Handle your core processes easily	Technical excellence	Simplicity
F L E X Extended selection Optimize your processes with innovative technologies	Technical excellence	Simplicity
F L E X Xpert selection Master your most challenging applications	Technical excellence	Simplicity Variable

Learn more about the FLEX selections

Measuring principle

Sensor ORP / Redox
Application

Chemical industry, power stations and incinerator plants, metal extraction and metal processing
Installation

Immersion assembly
Characteristic

Closed tank
Design

Bayonet technology, 3 electrode installation locations, 120 mm electrodes, integrated spray cleaning CPR31
Material

Immersion tube, sensor holder:
PVDF or stainless steel 1.4404
O-rings: EPDM, VITON, Chemraz or Fluoraz
Dimension

Immersion depth: 500 to 2500 mm (19.7 to 98.4 inch), special lengths on request
Process temperature

Max. 150 °C (302 °F)
Process pressure

Max. 10 bar (145 psi)
Connection

Pressurized flange DN80/PN16, ASME 3" lbs150, JIS 10K80A
Additional certifications

Material certification 3.1B EN 10204

Measuring principle

Potentiometric
Application

Chemical industry, power stations and incinerator plants, metal extraction and metal processing
Installation

Immersion assembly
Characteristic

Closed tank
Design

Bayonet technology, 3 electrode installation locations, 120 mm electrodes, integrated spray cleaning CPR31
Material

Immersion tube, sensor holder:
PVDF or stainless steel 1.4404
O-rings: EPDM, VITON, Chemraz or Fluoraz
Dimension

Immersion depth: 500 to 2500 mm (19.7 to 98.4 inch), special lengths on request
Process temperature

Max. 150 °C (302 °F)
Process pressure

Max. 10 bar (145 psi)
Connection

Pressurized flange DN80/PN16, ASME 3" lbs150, JIS 10K80A
Additional certifications

Material certification 3.1B EN 10204

Configure to download the CAD drawings of this product

Configure

Spare parts

Search spare parts by number in drawing

- Show drawing (PDF)

Filter

Sealing
Chemraz-O-Ring-Set for CPA140

Sealing

Drawing number

Order code

12

50089298
Sealing
EPDM-O-Ring-Set for CPA140

Sealing

Drawing number

Order code

12

50089296
Sealing
Fluoraz-O-Ring-Set for CPA140

Sealing

Drawing number

Order code

12

50089299
Sealing
Viton-O-Ring-Set for CPA140

Sealing

Drawing number

Order code

12

50089297
Cover
Kit CXA111/140 cover complete

Cover

Drawing number

Order code

1

51500400
Adapter housing/cable entry
Kit CXA140 cable glands

Adapter housing/cable entry

Drawing number

Order code

2

51501131
Adapter housing/cable entry
Kit CXA140 NPT-adapter

Adapter housing/cable entry

Drawing number

Order code

2

51501148
Filter
Kit CXA140 Goretex filter

Filter

Drawing number

Order code

3

51501150
Connection (process)
Kit CPA140-2xxBxxx flange DN80

Connection (process)

Drawing number

Order code

6

51501185
Connection (process)
Kit CPA140-2xxDxxx flange ANSI3 inch

Connection (process)

Drawing number

Order code

6

51501187
Connection (process)
Kit CPA140-2xxExxx flange JIS10K80A

Connection (process)

Drawing number

Order code

6

51501189
Connection (process)
Kit CPA140/240-2 holder Tantal/Viton

Connection (process)

Drawing number

Order code

7

51501168
Connection (process)
Kit CPA140/240-2 holder Tantal/Chemraz

Connection (process)

Drawing number

Order code

7

51501169
Connection (process)
Kit CPA140/240-2 holder Hateloy/Chemraz

Connection (process)

Drawing number

Order code

7

51501165
Connection (process)
Kit CPA140/240-2 holder Hasteloy/Fluoraz

Connection (process)

Drawing number

Order code

7

51501166
Connection (process)
Kit CPA140/240-2 holder Hasteloy/EPDM

Connection (process)

Drawing number

Order code

7

51501163
Connection (process)
Kit CPA140/240-2 holder Hasteloy/Viton

Connection (process)

Drawing number

Order code

7

51501164
Connection (process)
Kit CPA140/240-2 holder Tantal/EPDM

Connection (process)

Drawing number

Order code

7

51501167
Connection (process)
Kit CPA140/240-2 holder Tantal/Fluoraz

Connection (process)

Drawing number

Order code

7

51501170
further parts
Kit CPA140/240-2 holder w/o PAL/EPDM

further parts

Order code

71161431
further parts
Kit CPA140/240-2 holder w/o PAL/Viton

further parts

Order code

71161433
further parts
Kit CPA140/240-2 holder w/o PAL/Chemraz

further parts

Order code

71161434
further parts
Kit CPA140/240-2 holder w/o PAL/Fluoraz

further parts

Order code

71161435
Connection (electrical)
Kit CPA140/240-2 PM Tantal/Chemraz

Connection (electrical)

Drawing number

Order code

10

51501160
Connection (electrical)
Kit CPA140/240-2 PM Tantal/Viton

Connection (electrical)

Drawing number

Order code

10

51501159
Connection (electrical)
Kit CPA140/240-2 PM Tantal/Fluoraz

Connection (electrical)

Drawing number

Order code

10

51501161
Connection (electrical)
Kit CPA140/240-2 PM Hastelloy/Fluoraz

Connection (electrical)

Drawing number

Order code

10

51501157
Connection (electrical)
Kit CPA140/240-2 PM Hastelloy/Viton

Connection (electrical)

Drawing number

Order code

10

51501155
Connection (electrical)
Kit CPA140/240-2 PM Hastelloy/EPDM

Connection (electrical)

Drawing number

Order code

10

51501154
Connection (electrical)
Kit CPA140/240-2 PM Tantal/EPDM

Connection (electrical)

Drawing number

Order code

10

51501158
Connection (electrical)
Kit CPA140/240-2 PM Hastelloy/Chemraz

Connection (electrical)

Drawing number

Order code

10

51501156
Cover
Kit CPA140/240 dummy plug Fluoraz

Cover

Drawing number

Order code

11

51501153
Cover
Kit CPA140/240 dummy plug Chemraz

Cover

Drawing number

Order code

11

51501152
Cover
Kit CPA140/240 dummy plug Viton

Cover

Drawing number

Order code

11

51501151
Cover
Kit CXA140/240 dummy plug EPDM

Cover

Drawing number

Order code

11

51501149
Fixing
Kit CPA140-30 flange bushing

Fixing

Drawing number

Order code

4

51501183
Fixing
Kit CPA140-30 eye bolts

Fixing

Drawing number

Order code

5

51501184
Connection (process)
Kit CPA140-30 holder 1.4404/Chemraz

Connection (process)

Drawing number

Order code

8

51501173
Connection (process)
Kit CPA140-30 holder 1.4404/Viton

Connection (process)

Drawing number

Order code

8

51501172
Connection (process)
Kit CPA140-30 holder 1.4404/EPDM

Connection (process)

Drawing number

Order code

8

51501171
Connection (process)
Kit CPA140-30 holder 1.4404/Fluoraz

Connection (process)

Drawing number

Order code

8

51501174
Connection (electrical)
Kit CPA140/240-3 PM connection

Connection (electrical)

Drawing number

Order code

9

51501162
Sealing
Kit CxA O-ring 10.69x3.53 FKM (10x)

Sealing

Drawing number

Order code

12

71516970
Sealing
Kit CxA O-ring 10.69x3.53 EPDM (10x)

Sealing

Drawing number

Order code

12

71516973

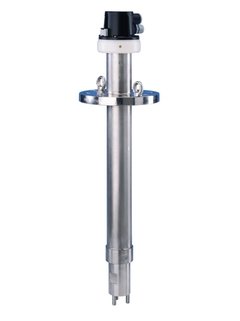

Immersion assemblyDipfit CPA140

Durable assembly for the chemical, petrochemical, life sciences and power industries

Specs at a glance

Process temperature

Process pressure

Field of application

Benefits

Success stories

Monitoring Emulsion Polymerization Reactions

Semi-batch polymerization

Cooling water directly from the Baltic Sea

Process automation worth its weight in gold

Keeping the turbine running

Measuring principle

Application

Installation

Characteristic

Design

Material

Dimension

Process temperature

Process pressure

Connection

Additional certifications

Measuring principle

Application

Installation

Characteristic

Design

Material

Dimension

Process temperature

Process pressure

Connection

Additional certifications

Chemraz-O-Ring-Set for CPA140

EPDM-O-Ring-Set for CPA140

Fluoraz-O-Ring-Set for CPA140

Viton-O-Ring-Set for CPA140

Kit CXA111/140 cover complete

Kit CXA140 cable glands

Kit CXA140 NPT-adapter

Kit CXA140 Goretex filter

Kit CPA140-2xxBxxx flange DN80

Kit CPA140-2xxDxxx flange ANSI3 inch

Kit CPA140-2xxExxx flange JIS10K80A

Kit CPA140/240-2 holder Tantal/Viton

Kit CPA140/240-2 holder Tantal/Chemraz

Kit CPA140/240-2 holder Hateloy/Chemraz

Kit CPA140/240-2 holder Hasteloy/Fluoraz

Kit CPA140/240-2 holder Hasteloy/EPDM

Kit CPA140/240-2 holder Hasteloy/Viton

Kit CPA140/240-2 holder Tantal/EPDM

Kit CPA140/240-2 holder Tantal/Fluoraz

Kit CPA140/240-2 holder w/o PAL/EPDM

Kit CPA140/240-2 holder w/o PAL/Viton

Kit CPA140/240-2 holder w/o PAL/Chemraz

Kit CPA140/240-2 holder w/o PAL/Fluoraz

Kit CPA140/240-2 PM Tantal/Chemraz

Kit CPA140/240-2 PM Tantal/Viton

Kit CPA140/240-2 PM Tantal/Fluoraz

Kit CPA140/240-2 PM Hastelloy/Fluoraz

Kit CPA140/240-2 PM Hastelloy/Viton

Kit CPA140/240-2 PM Hastelloy/EPDM

Kit CPA140/240-2 PM Tantal/EPDM

Kit CPA140/240-2 PM Hastelloy/Chemraz

Kit CPA140/240 dummy plug Fluoraz

Kit CPA140/240 dummy plug Chemraz

Kit CPA140/240 dummy plug Viton

Kit CXA140/240 dummy plug EPDM

Kit CPA140-30 flange bushing

Kit CPA140-30 eye bolts

Kit CPA140-30 holder 1.4404/Chemraz

Kit CPA140-30 holder 1.4404/Viton

Kit CPA140-30 holder 1.4404/EPDM

Kit CPA140-30 holder 1.4404/Fluoraz

Kit CPA140/240-3 PM connection

Kit CxA O-ring 10.69x3.53 FKM (10x)

Kit CxA O-ring 10.69x3.53 EPDM (10x)

Choose from our suggested options

Immersion assembly
Dipfit CPA140
