CPA450 basic assembly for the water & wastewater, chemical, pulp & paper and power industries.

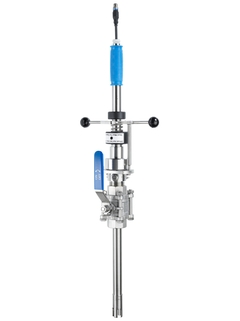

Manual retractable assembly Cleanfit CPA450

Basic assembly for the water & wastewater, chemical, pulp & paper and power industries

CPA450
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-

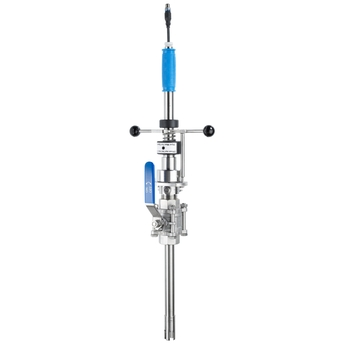

CPA450 basic assembly for the water & wastewater, chemical, pulp & paper and power industries. ©Endress+Hauser

Specs at a glance

  • Process temperature

    -15 to 130 °C (5 to 266 °F)

  • Process pressure

    Max. 12 bar at 100 °C (175 psi at 212 °F)

Field of application

The manual Cleanfit CPA450 is the first step into the world of retractable assemblies. It is designed for installation in thick-walled tanks or large pipes and copes with fibrous or coating media. CPA450 features a ball valve which seals off the process reliably, making sensor handling extremely easy. It is no longer necessary to interrupt the process or empty a tank for sensor service or replacement.

Cleanfit CPA450 is intended for installation in thick-walled tanks and large pipes in:

  • Chemical industry

  • Pulp and paper industry

  • Power plants

  • Wastewater treatment

  • Fibrous media or media that form coats

It is suitable for use with pressures of up to 12 bar.

Benefits

  • No process interruption for electrode cleaning and calibration – saves maintenance time and costs

  • High operating safety through reliable separation from process by ball valve made of stainless steel

  • Variable immersion depth up to 700 mm

  • Flexible adaptation to all applications by great variety of materials and process connections
