Turbidity assembly

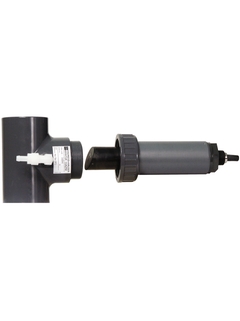

Flowfit CUA250

Turbidity assembly
Flowfit CUA250 ©Endress+Hauser

Flow assembly for water and wastewater applications

Flowfit CUA250 is a process and flow assembly for turbidity measurement. Continuous in-line measurement of turbidity in aqueous media is used for real-time measurement of non-soluble substances in water for purposes of monitoring, detection of operating states and control applications.

  • Benefits

    • Flow assembly featuring simple adaptation to standard piping

    • Sensor orientation can be adapted to individual requirements of application

    • Additional cleaning device employs spray cleaning to increase sensor maintenance intervals

    • Flange adapter for...

  • Field of application

    Flowfit CUA250 is a flow assembly for use with turbidity sensors Turbimax CUS31 and CUS41. Typical applications are:

    • Discharge monitoring in communal and industrial wastewater

    • Sedimentation monitoring in wastewater treatment (coagulation and...

Features and specifications

Back

Details

  • Measuring principle

    Single beam scattered light

  • Application

    Waste water, industrial water

  • Installation

    Flow through holder for pipe or bypass installations

  • Characteristic

    Flow through holder for the turbidity sensors CUS31/41, blackened inside to minimize light reflexions.

  • Design

    Flow through holder optional with spray head for a manual or automatic cleaning of the sensor head inside the holder with the cleaning device CUR3.

  • Material

    Holder body : PVC
    Sealing : EPDM

  • Dimension

    Diameter : 100mm
    (3.94inch)Height : 196mm
    ( 7.64inch)

  • Process temperature

    max. 50°C
    (max. 122°F)

  • Process pressure

    max. 6bar
    (max.87psi)

  • Connection

    Process connections :- Screw type : DN20/d25- Mounting in GF DN50/d63-pipe.
