product picture of the process gas analyzer MCS300P

MCS300P
process gas analyzer

Simultaneous process monitoring of up to 6 measuring components

IMCS3P
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information

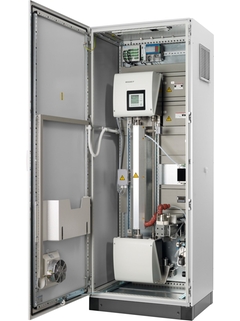

product picture of the process gas analyzer MCS300P
  • F
  • L
  • E
  • X
©Endress+Hauser

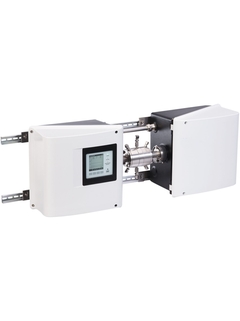

product picture of the process gas analyzer MCS300P
  • F
  • L
  • E
  • X
©Endress+Hauser

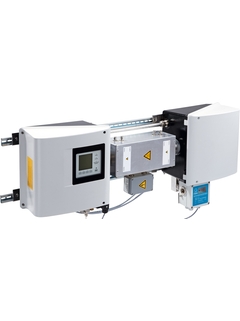

product picture of the process gas analyzer MCS300P EX version
  • F
  • L
  • E
  • X
©Endress+Hauser

Specs at a glance

  • Measuring range

    More than 60 measuring components available (depending on concentration and sample gas composition)
    Up to 6 components simultanously
    2 measuring ranges per component
    Automatic measuring range switching (adjaustable)
    2 limit values per component
    Measuring ranges depend on application and combination of measuring components

Field of application

The MCS300P is an extractive process photometer for measuring gaseous or liquid media. It measures IR- and VIS-active components with variable measuring ranges from very low (ppm) to high (vol%) concentrations. For monitoring toxic or flammable mixtures, it features special process cells with integrated protective devices, such as double seals and purge gas chambers on both sides.

  • Process monitoring in production of vinyl chloride or isocyanate

  • Process control in the chemical industry

  • Process monitoring in the production of plastics

  • Monitoring of exhaust gas purification plants


Device properties:

  • Simultaneous measurement of up to 6 components

  • Process cells up to 60 bar and 200 °C available

  • Automated sample point switching

  • Protective devices for measurement of toxic or flammable mixtures

  • Extended operation via PC and SOPAS ET software

  • Flexible I/O module system

Benefits

  • Automatic adjustment without expensive test gases

  • Integration into existing networks

  • Integration of external parameters like temperature or pressure

  • Suitable for explosive environments

  • Easy installation and maintenance thanks to transparent, compact design
