Absolute and
gauge pressure

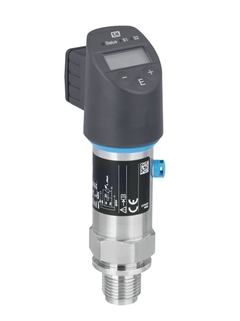

Ceraphant PTP31B
Cost-effective pressure switch with welded metal sensor for measurement in gases, steams or liquids
The Ceraphant PTP31B is a price-attractive pressure switch with piezoresistive sensor for safe measurement and monitoring of absolute and gauge pressure. The pressure switch with compact design is extremely stable and overload resistant for up to +400 bar. The IO-Link capability allows easy integration and parametrization of the device.
-
Benefits
Integrated switching electronics for decentral and economic process monitoring and control
Function check and information on-site thanks to LEDs and digital display
Overload-resistant sensor up to 400bar
Small flush mounted process connections
IO-Link...
-
Field of application
Pressure switch with metallic sensor diaphragm for monitoring absolute and gauge pressures in gases, vapors, liquids and dusts.
Process connections: Threads
Process temperature: -40 up to +100°C (-40 to +212°F)
Process pressure: 400mbar to +400bar (6...
Documents / Manuals / Software
-
Ceraphant PTC31B, PTP31B
Technical Information
Pressure switch for safe measurement and monitoring of absolute and
gauge pressureTechnical Information (TI) -
Weld-in adapter, process adapter and flanges
Level and pressure measurement
Technical Information (TI) -
Ceraphant PTC31B, PTP31B, PTP33B
IO-Link
Operating Instructions
Pressure switch for safe measurement and monitoring of absolute and
gauge pressureOperating Instruction (BA) -
Ceraphant PTC31B, PTP31B, PTP33B
Operating Instructions
Pressure switch for safe measurement and monitoring of absolute and
gauge pressureOperating Instruction (BA) -
Ceraphant PTC31B, PTP31B, PTP33B
IO-Link
Brief Operating Instructions
Pressure switch for safe measurement and monitoring of absolute and
gauge pressureShort Instruction (KA)12/18English -
Ceraphant PTC31B, PTP31B, PTP33B
Brief Operating Instructions
Pressure switch for safe measurement and monitoring of absolute and
gauge pressureShort Instruction (KA)05/18English -
Sealing kit
Installation Instruction
Cerabar
Mounting Instruction (EA) -
Valve plug
Valve plug
Special Documentation (SD) -
Mechanical accessories for pressure measuring devices
Pressure measurement
Special Documentation
Mechanical accessories for pressure measuring devices
Special Documentation (SD) -
Komplettpaket Druckmesstechnik
Ein Ansprechpartner - spart Zeit und reduziert Kosten
Competence Brochure (CP)05/15German -
Ceraphant PTP31B
Druckschalter mit vollverschweißtem Metallsensor zur sicheren
Überwachung von
Absolut- und Relativdruck in Gasen, Dämpfen, Flüssigkeiten und StäubenTender Text12/18German -
IODD Single, IODD_IOL_PR_Ceraphant_0x92FE_0x01_0x01, 22.01.2019 (Pressure, Ceraphant, 0x92FE)
IO-Link,
IO-Link Version: AnyIO Device Description (IODD)1.00.00Language neutral -
Pressebild PressEHM08
Endress+Hauser SE+Co. KG, Ceraphant PTP31B
Picture12/16Language neutral -
Ceraphant
Product Code: PTP31B-
Declaration Number: HE_00566_01.17
Manufacturer Specification: RoHSManufacturer DeclarationChinese -
Cerabar, Ceraphant
Product Code: PMC11-, PMC21-, PMP11-, PMP21-, PMP23-, PTC31B-, PTP31B-, PTP33B-
Declaration Number: HE_00360_01.16
Manufacturer Specification: RoHSManufacturer DeclarationGerman , English -
Ceraphant
Product Code: PTC31B-, PTP31B-, PTP33B-
Declaration Number: HE_00714_01.17
Manufacturer Specification: RoHSManufacturer DeclarationGerman , English -
Ceraphant
Product Code: PTP31B-
Declaration Number: FDA_00152_01.17FDA DeclarationGerman , English -
Ceraphant
Product Code: PTP31B-
Declaration Number: FDA_00152_02.17FDA DeclarationGerman , English -
Ceraphant
Product Code: PTC31B-, PTP31B-, PTP33B-
Declaration Number: EC_00452_04.16EU DeclarationGerman , English , fr -
Cerabar, Ceraphant
Product Code: PMP21-, PTP31B-
Declaration Number: EC_00449_03.16EU DeclarationGerman , English , fr -
Waterpilot, Deltapilot S, Deltapilot M, Deltapilot, Deltabar S, Deltabar M, Deltabar, Ceraphant T, Ceraphant, Cerabar T, Cerabar S, Cerabar M, Cerabar
Product Code: PTP33B-, PTP31B-, PTC31B-, PTC31-, PMP75-, PMP71-, PMP55-, PMP51-, PMP23-, PMP21-, PMP11-, PMD75-, PMD55-, PMC71-, PMC51-, PMC21-, PMC131-, PMC11-, FMX21-, FMX167-, FMD78-, FMD77-, FMB70-, FMB53-, FMB52-, FMB51-, FMB50-
Region/Country: Russia (TR CU), Russia (Declaration of Conformity)
Approval Agency: EAC
Approval Number: RU D-DE.MO10.B.05287MiscellaneousRussian -
Cerabar, Ceraphant
Product Code: PMC11-, PMC21-, PMP11-, PMP21-, PMP23-, PTC31B-, PTP31B-, PTP33B-
Region/Country: Canada (CRN)
Approval Agency: CRNPressure EquipmentEnglish -
Levelflex, Deltabar S, Cerabar S, Cerabar M, Deltabar M, Ceraphant T, Ceraphant, Cerabar T, Cerabar
Product Code: PTP31B-, FMP54-, FMD78-, PMP71-, PMD75-, FMD77-, PMP75-, PMP51-, PMP55-, PMD55-, PTP31-, PMP21-, PMP135-, PMP131-
Approval Agency: TÜVPressure EquipmentGerman , English -
Cerabar, Ceraphant, Ceraphant T
Product Code: PMC11-, PMP11-, PTC31-, PTC31B-, PTP31-, PTP31B-
Region/Country: Malaysia
Approval Agency: SPAN
Approval Number: SPAN/BPI/2699-2019Metrology -
Ceraphant
Product Code: PTC31B-, PTP31B-, PTP33B-
Region/Country: Russia
Approval Agency: Rosstandart
Approval Number: DE.C.30.004.A NO 67872/1MetrologyRussian -
Ceraphant
Product Code: PTC31B-, PTP31B-, PTP33B-
Region/Country: Canada, USA
Approval Agency: CSAOrdinary Location Product SafetyEnglish
