Differential pressure

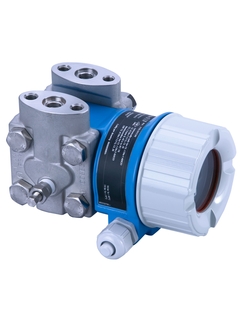

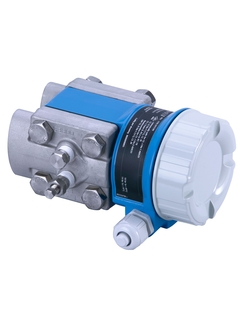

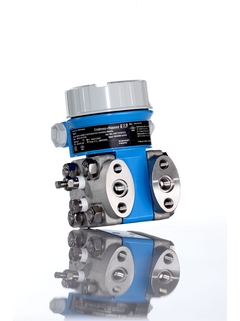

Deltabar PMD55
Differential pressure transmitter with metal sensor for measurement of pressure differences
The Deltabar PMD55 differential pressure transmitter with piezoresistive sensor and welded metallic membrane is typically used in process or environmental applications for continuous measurement of pressure differences in liquids, vapors and gases. Quick Setup with adjustable measuring range allows simple commissioning, reduces costs and saves time. SIL2 according to IEC 61508 / IEC 61511.
- F
- L
- E
- X
-
Standard products
- Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
Specialized products
- Designed for demanding applications
Technical excellence
Simplicity
Variable
FLEX selections | Technical excellence | Simplicity |
---|---|---|
Fundamental selection Meet your basic measurement needs |
Technical excellence
|
Simplicity
|
Lean selection Handle your core processes easily |
Technical excellence
|
Simplicity
|
Extended selection Optimize your processes with innovative technologies |
Technical excellence
|
Simplicity
|
Xpert selection Master your most challenging applications |
Technical excellence
|
Simplicity
Variable |
-
Specs at a glance
-
Accuracy
0,1%
"PLATINUM" 0,075% -
Max. measurement error
0,1%
"PLATINUM" 0,075% -
Process temperature
-40 °C...85 °C
(-40 °F...185 °F) -
Medium temperature range
Temperature gradient from pressure piping
-
Pressure measuring range
10mbar...40bar
(0.15...580psi) -
Process pressure absolute / max. overpressure limit
160 bar
-
Main wetted parts
316L
-
Max. process pressure
10mbar...40bar
(0.15...580psi) -
Material process membrane
316L, AlloyC,
-
Measuring cell
10 mbar...40 bar
(0.15...580 psi)
-
Quick selection
Individual configuration
-
Benefits
Easy menu-guided commissioning via local display, 4 to 20mA with HART, PROFIBUS PA, FOUNDATION Fieldbus
Easy process adaptation to impulse line high-pressure/low-pressure change via electric switch on the main electronics
Compact design and modular...
-

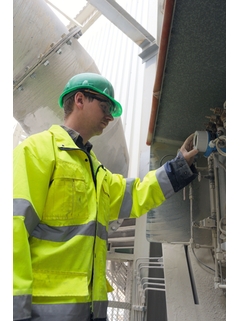

Field of application
For level, volume or mass measurement in liquids, differential pressure monitoring, e.g. of filters and pumps as well as flow measurement (volume or mass flow) in conjunction with primary elements in gases, vapors and liquids.
Process connections: Threads
Process temperature: -40...
