Cerabar PMP71B - pressure transmitter

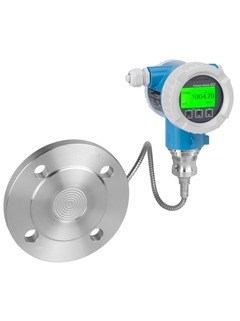

Cerabar PMP71B - pressure transmitter ©Endress+Hauser

Verification of a pressure transmitter within 3 minutes - while the process is running? Learn more in this video.

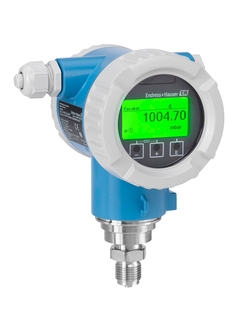

Cerabar PMP71B - pressure transmitter ©Endress+Hauser

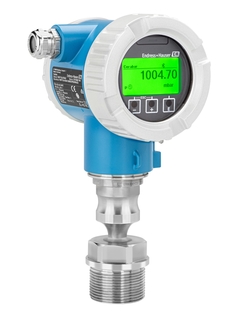

Cerabar PMP71B - pressure transmitter ©Endress+Hauser

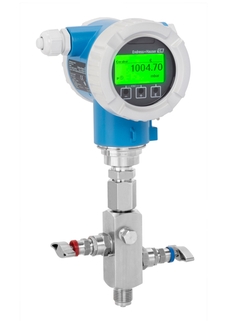

Cerabar PMP71B - pressure transmitter ©Endress+Hauser

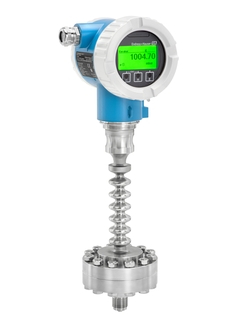

With temperature decoupler

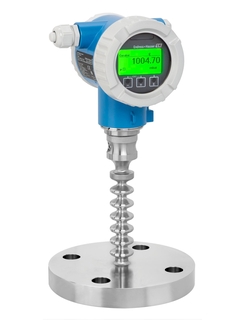

Cerabar PMP71B - pressure transmitter ©Endress+Hauser

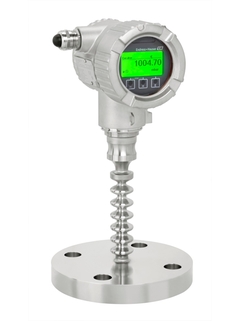

With temperature decoupler and stainless steel housing

Smart pressure transmitter - its health can be verified without process interruption

This transmitter belongs to the new Cerabar generation. The transmitter is robust and can be remotely controlled via app on a mobile device using a secure Bluetooth connection.
The software is designed to simplify the handling. Intuitive wizards guide the user through setup, proof tests and verification of the device.
Heartbeat Technology offers verification and monitoring functions to detect unwanted anomalies e.g. changes in loop characteristics.

  • Simple products

  • Easy to select, install and operate

Technical excellence

Simplicity

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity

  • Specialized products

  • Designed for demanding applications

Technical excellence

Simplicity

Variable

FLEX selections Technical excellence Simplicity
  • F
  • L
  • E
  • X

Fundamental selection

Meet your basic measurement needs

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Lean selection

Handle your core processes easily

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Extended selection

Optimize your processes with innovative technologies

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Xpert selection

Master your most challenging applications

Technical excellence
Simplicity

Variable

  • Specs at a glance

    • Accuracy

      Standard:
      0.005 %
      Diaphragm seal:
      0.015 %

    • Process temperature

      Standard:
      -40°C…+125°C
      (-40°F…+257°F)

      Diaphragm seal:
      -40°C...+400°C
      (-40°F...+752°F)

    • Pressure measuring range

      400 mbar...700 bar
      (1.5 psi...10,500 psi)

    • Main wetted parts

      316L, AlloyC,
      Tantal, Monel

    • Material process membrane

      316L, AlloyC,
      Tantal, Monel,
      PTFE,
      Gold

    • Measuring cell

      400 mbar...700 bar
      (6 psi...10,500 psi)

please wait Loading alternative products

Quick selection

Choose from our suggested options
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

or

Individual configuration

Continue your selection from all possible options
  • Benefits

    • With Heartbeat Technology you are able to verify the health of the device while the process is running.

    • Simple indication of device status - display changes from green to red when diagnostic messages occur

    • Reduce systematic failures - error free SIL...

  • Field of application

    • Pressure measuring range: up to 700 bar (10500 psi)

    • Process temperatures up to 400°C (752 °F) with diaphragm seal

    • Accuracy: up to +/- 0.025%

Features and specifications

Back

Details

  • Measuring principle

    Absolute and gauge pressure

  • Characteristic

    Pressure transmitter with metallic process diaphragm.

    Available as diaphragm seal.
    The device health can be verified without process interruptions.

    Easy local or remote operation via Bluetooth.

    Intuitive and clear wizards for setup, proof tests and verification.

  • Supply voltage

    4...20 mA HART

    Ex d, Ex e, non-Ex:

    10.5...35V DC :

    Ex i: 10.5...30V DC

  • Reference Accuracy

    Standard:

    up to 0.05 %

    Platinum:

    up to 0.025 %

  • Long term stability

    0.05 % of URL/ year

    0.07 % of URL/ 5 years

    0.10 % of URL/ 10 years

  • Process temperature

    Standard:

    -40°C…+125°C

    (-40°F…+257°F)


    Diaphragm seal:

    -40°C...+400°C

    (-40°F...+752°F)

  • Ambient temperature

    -60°C...+80°C
    (-76°F...+185°F)

  • Measuring cell

    400 mbar...700 bar
    (6 psi...10,500 psi)

  • Smallest calibratable span

    5 mbar (0.075 psi)

  • Vacuum resistance

    5 mbar (0.725 psi)

  • Max. Turn down

    100:1

  • Max. overpressure limit

    2,800 bar (40,600 psi)

  • Process connection

    Thread:

    G1/2...G2, R1/2, MNPT3/4...MNPT2,

    FNPT1/2, R1/2

    Flange:

    DN25...DN100,

    NPS 1"...4"

    Pancake: 2"...4", DN50...DN100

  • Material process membrane

    316L, AlloyC,

    Tantal, Monel,
    PTFE,

    Gold

  • Material gasket

  • Fill fluid

    Silicone oil, Inert oil,

    Vegetable oil,

    High/ low temperature oil

  • Material housing

    Aluminium,

    316L

  • Communication

    4...20 mA HART

  • Certificates / Approvals

    ATEX, IEC Ex

  • Safety approvals

    Safety approvals

  • Design approvals

    EN10204-3.1,

    NACE MR0103,

    NACE MR0175

  • Marine approvals

    Marine approvals

  • Drinking water approvals

    NSF

  • Specialities

    Heartbeat Technology,

    Bluetooth® Operation and maintenance SmartBlue App,

    LED Module,

    RFID TAG for easy identification,

    Plug and play functionalities,

    HistoROM

  • Measuring principle

    Absolute and gauge pressure

  • Characteristic / Application

    Pressure transmitter with metallic process diaphragm.

    Available as diaphragm seal.
    The device health can be verified without process interruptions.

    Easy local or remote operation via Bluetooth.

    Intuitive and clear wizards for setup, proof tests and verification.

  • Specialities

    Heartbeat Technology,

    Bluetooth® Operation and maintenance SmartBlue App,

    LED Module,

    RFID TAG for easy identification,

    Plug and play functionalities,

    HistoROM

  • Supply / Communication

    Ex d, Ex e, non-Ex:

    10.5...35V DC

    Ex i: 10.5...30V DC

  • Accuracy

    Standard:

    0.005 %

    Diaphragm seal:

    0.015 %

  • Long term stability

    0.05 % of URL/ year

    0.07 % of URL/ 5 years

    0.10 % of URL/ 10 years

  • Ambient temperature

    -60°C...+80°C

    (-76°F...+185°F)

  • Process temperature

    Standard:

    -40°C…+125°C

    (-40°F…+257°F)


    Diaphragm seal:

    -40°C...+400°C

    (-40°F...+752°F)

  • Process pressure absolute / max. overpressure limit

    700bar

    (10,500psi)

  • Pressure measuring range

    400 mbar...700 bar

    (1.5 psi...10,500 psi)

  • Main wetted parts

    316L, AlloyC,

    Tantal, Monel

  • Process connection

    Thread:

    G1/2...G2, R1/2, MNPT3/4...MNPT2,

    FNPT1/2, R1/2

    Flange:

    DN25...DN100,

    NPS 1"...4"

    Pancake: 2"...4", DN50...DN100

  • Max. measurement distance

    7000m (22.966ft) H2O

  • Communication

    4...20 mA HART

  • Certificates / Approvals

    ATEX

  • Safety approvals

    SIL

  • Design approvals

    EN 10204-3.1

    NACE MR0175,

    NACE MR0103

  • Marine approval

    GL/ ABS

  • Drinking water approvals

    NSF

  • Metrological approvals and certificates

    MID

  • Options

    Touch control

    Diaphragm seal

  • Application limits

    Measuring cell: Metal
    welded
    If pressurized, possibly
    use differential pressure
    measurement with two
    pressure transmitters
    (electronic dp). Observe
    ratio head pressure:
    hydrostatic pressure

Documents / Manuals / Software

Accessories / Spare parts

Nr
Order code
Specification
    • Order code 71020596

      Mounting set housing T17 / sensor

      Consists of: 2x O-ring 45.62x69x2.62 EPDM. 1x profile gasket 51.4x57.2x1.6 EPDM. Retaining ring, plastics. Usage: FMB70, FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75.

  • 14
    • Nr 14 Order code 71487198

      Blind plug, M20, 316L, o-ring EPDM

      Consists of: blind plug, o-ring PTFE coated 17.0x2.0. Usage: FMG50, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B, NMT81.

    • Nr 14 Order code 71487199

      Blind plug, M20, Alu, o-ring EPDM

      Consists of: blind plug, o-ring PTFE coated 17.0x2.0. Usage: FMG50, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B, NMT81.

    • Nr 14 Order code 71487201

      Blind plug, NPT1/2, Alu

      Consists of: blind plug, PTFE coated. Usage: FMG50, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

    • Nr 14 Order code 71487203

      Blind plug, NPT1/2, 316L

      Consists of: blind plug, PTFE coated. Usage: FMG50, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B, NMT81.

  • 15
    • Nr 15 Order code 71435135

      Cable gland M20, plastic

      Usage: FMG50, FTL41, FTL51B, FTL62/64, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

    • Nr 15 Order code 71435136

      Cable gland M20, brass nickel plated

      Usage: FMG50, FTL41, FTL51B, FTL62/64, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

    • Nr 15 Order code 71435137

      Cable gland M20, 316L

      Usage: FMG50, FTL51B, FTL62/64, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

    • Nr 15 Order code 71435138

      M12 plug,CuZn-nickel plated,housing side

      Usage: M12 screw-in thread, brass nickel plated, FMG50, FTL51B, FTL62/FTL64, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B,PMP51B, PMP71B.

    • Nr 15 Order code 71435139

      M12 plug, 316L, housing side

      Usage: M12 screw-in thread, FMG50, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

    • Nr 15 Order code 71439098

      HAN7D plug, 90deg, housing side

      Usage: FMG50, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

    • Nr 15 Order code 71474958

      HAN7D socket, cable side

      Usage: FMG50, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

  • 20
    • Nr 20 Order code 71435116

      Cover, Alu, closed

      Sealing ring, HNBR. Usage: FMG50, FTL41, FTL51B, FTL62/64, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B,PMP51B, PMP71B.

    • Nr 20 Order code 71435118

      Cover, Alu, closed, Ex d

      Sealing ring, HNBR. Usage: FMG50, FTL41, FTL51B, FTL62/64, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

    • Nr 20 Order code 71435121

      Cover, Alu, connection compartment, Ex d

      Sealing ring, HNBR. Usage: FMG50, PMC71B, PMD75B/PMD78B, PMP71B.

    • Nr 20 Order code 71435122

      Cover, 316L, closed, Ex d

      Sealing ring, HNBR. Usage: FMG50, FTL51B, FTL62/64, PMD75B/PMD78B, PMC71B, PMP71B.

    • Nr 20 Order code 71435123

      Cover, 316L, sight window, Ex d

      Sealing ring, HNBR. Usage: FMG50, FTL51B, FTL62/FTL64, PMD75B/PMD78B, PMC71B, PMP71B.

    • Nr 20 Order code 71435128

      Cover, 316L, connect. compartment, Ex d

      Sealing ring, HNBR. Usage: FMG50, PMD75B/PMD78B, PMC71B, PMP71B.

    • Nr 20 Order code 71439085

      Cover, Alu, connection compartment

      Sealing ring, HNBR. Usage: FMG50, PMC71B, PMD75B/PMD78B, PMP71B.

    • Nr 20 Order code 71439086

      Cover red, Alu, closed, Ex d

      Sealing ring, HNBR. Usage: FMG50, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP1B, PMP71B.

    • Nr 20 Order code 71439087

      Cover red, Alu,connect. compartment,Ex d

      Sealing ring, HNBR. Usage: FMG50, PMC71B, PMD75B/PMD78B, PMP71B.

    • Nr 20 Order code 71439088

      Cover red, Alu, sight window, Ex d

      Sealing ring, HNBR. Material sight window: borosilicat. Usage: FMG50, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

    • Nr 20 Order code 71439089

      Cover, Alu, sight window

      Sealing ring, HNBR. Material sight window: plastic. Usage: FMG50, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

    • Nr 20 Order code 71439090

      Cover, Alu, sight window, Ex d

      Sealing ring: HNBR. Material sight window: borosilicat. Usage: FMG50, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

  • 21
    • Nr 21 Order code 71435132

      Sealing set HNBR, -40oC, 5 pieces

      Usage: FMG50, FTL41, FTL51B, FTL62/64.

    • Nr 21 Order code 71435134

      Sealing set FVMQ, -60oC, 5 pieces

      Usage: FTL51B, FTL62/64, NMT81.

  • 30
    • Nr 30 Order code 71438552

      Electronics, HART, 1 compartment, PMx7xB

      2-wire, 4-20mA HART. Usage: PMC71B, PMD75B/PMD78B, PMP71B.

    • Nr 30 Order code 71438553

      Elektronics, HART, 2 compartment, PMx7xB

      2-wire, 4-20mA HART. Usage: PMC71B, PMP71B, PMD75B/PMD78B.

    • Nr 30 Order code 71438554

      Electronics,HART,2 comp.,low temp.PMx7xB

      2-wire, 4-20mA HART. Usage: PMP71B, PMD75B/PMD78B.

  • 31
    • Nr 31 Order code 71486019

      HistoROM DU105A - blank

      Usage: PMC71B, PMD75B/PMD78B, PMP71B.

  • 40
    • Nr 40 Order code 71435772

      Segment display VU100

      W/o buttons. Usage: FMG50, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B, NMT81.

    • Nr 40 Order code 71435779

      Segment display + Bluetooth VU101

      W/o buttons. Usage: FMG50, PMC51B, PMC71B, PMD55B, PMD75B/PMD78B, PMP51B, PMP71B.

    • Nr 40 Order code 71435775

      Graphical display VU112

      Touch control. Usage: PMC71B, PMD75B/PMD78B, PMP71B.

    • Nr 40 Order code 71435781

      Graphical display + Bluetooth VU113

      Touch control. Usage: PMC71B, PMD75B/PMD78B, PMP71B.

  • 70
    • Nr 70 Order code 71043886

      Cable PE, L=2m/80inch, separate housing

      Connection cable sensor>sep. housing. Usage: FMB50/FMB51/FMB52, FMB70, FMD76/FMD77/FMD78, PMC51, PMC71, PMD70/PMD75, PMP51/PMP55, PMP71/PMP75.

    • Nr 70 Order code 71043888

      Cable PE, L=5m/200inch, separate housing

      Connection cable sensor>sep. housing. Usage: FMB50/FMB51/FMB52, FMB70, FMD76/FMD77/FMD78, PMC51, PMC71, PMD70/PMD75, PMP51/PMP55, PMP71/PMP75.

    • Nr 70 Order code 71043889

      Cable PE, L=10m/400inch,separate housing

      Connection cable sensor>sep. housing. Usage: FMB50/FMB51/FMB52, FMB70, FMD76/FMD77/FMD78, PMC51, PMC71, PMD70/PMD75, PMP51/PMP55, PMP71/PMP75.

    • Nr 70 Order code 71070738

      Cable FEP, L=5m/200inch,separate housing

      Connection cable sensor>sep. housing. Usage: FMB50/FMB51/FMB52, FMB70, FMD76/FMD77/FMD78, PMC51, PMC71, PMD70/PMD75, PMP51/PMP55, PMP71/PMP75.

    • Order code 71102216

      Mountingset Cerabar,Deltapilot,Levelflex

      Material: 316L. Usage: wall/pipe mounting (2"), FMB50/FMB51/FMB52/FMB53, FMB70, FMP50/FMP51/FMP52/FMP53/FMP54/FMP55/ FMP56/FMP57, PMC51, PMC71, PMP51/PMP55, PMP71/PMP75.

    • Order code 71372498

      Mounting bracket 2 valve,stainless steel

      Mounting set Manifold. Material: 316L. Consists of: 1x Mounting bracket. 1x U-bolts. 2x Washers A 8.4. 2x Hexagon nuts M8. Usage: wall/pipe mounting 2", DA63M, PMC51, PMC71, PMP51, PMP71.
