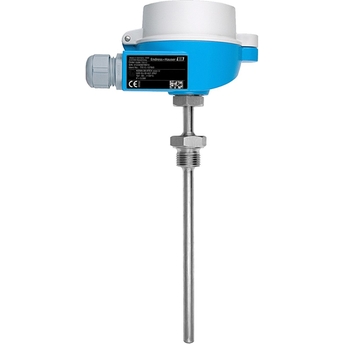

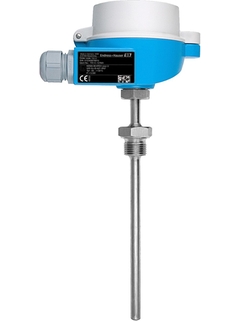

Omnigrad M TR10
Modular RTD thermometer
Comprehensive and common temperature measurement technology for almost all branches of industry
The high modular and robust thermometer finds its use in several applications in almost all industries. An optional head transmitter, with all common communication protocols, makes the device ready to use with enhanced measurement accuracy and reliability compared to directly wired sensors. A variety of process connections, dimensions and materials offer flexible application possibilities.
Quick selection
Individual configuration
Additional components
-
Benefits
High degree of flexibility thanks to modular design with standard terminal heads as per DIN EN 50446 and customer-specific immersion lengths
High degree of insert compatibility and design as per DIN 43772
Extension neck to protect the head transmitter...
-
Field of application
Universal range of application
Measuring range: -200 to +600 °C (-328 to 1112 °F)
Pressure range up to 75 bar (1088 psi)
Degree of protection: up to IP68
Vibration-resistant sensor elements up to 60g
Documents / Manuals / Software
-
TR10 Omnigrad M
Modular RTD assembly -
protection tube and neck tube, threadTechnical Information (TI) -
Omnigrad M TR10, TR11, TR12, TR13, TC10, TC12, TC13
ATEX: II 1/2D Ex ta/tb IIIC T85 °C...T450 °D Da/Db
IECEx: Ex ta/tb IIIC T85 °C...T450 °C Da/Db
Safety Instructions
Safety instructions for electrical apparatus certified for use in
explosion-hazardous areas.Ex Safety Instructions (XA) -
RTD/TC thermometers
ATEX II 3G, II 3D
Safety Instructions
Safety instructions for electrical apparatus certified for use in
explosion-hazardous areas.Ex Safety Instructions (XA) -
Omnigrad TRxx, TCxx, TxCxxx
0ExiaIICT6...T1 X
Safety Instructions
Safety Instructions 0ExiaIICT6...T1 X, RTD/TC modular thermometers
Omnigrad TRxx, TCxx, TxCxxxEx Safety Instructions (XA) -
iTHERM TS111, TM211
Omniset TPx100, Omnigrad TSx310
RTD/TC inserts and cable thermometers
ATEX:
II1D, II1/2D Ex ia IIIC or II1G, II1/2G Ex ia IIC
IECEx:
Ex ia IIC Ga, Ga/Gb
Safety instructions for electrical apparatus certified for use in
explosion-hazardous areas.Ex Safety Instructions (XA) -
Omnigrad TR1x, TR4x, TR88, TR6x, TC1x, TC88, TEC420, TC6x
ATEX: II 1D, II 1/2D Ex ia IIIC or II 1G, II 1/2G Ex ia IIC IECEx: Ex
iaIIC
Safety Instructions
Safety instructions for electrical apparatus certified for use in
explosion-hazardous areas.Ex Safety Instructions (XA) -
Safety instructions ATEX II1GD or II 1/2 GD
RTD / TC Thermometer
Omnigrad TRxx, TCxx, TSTxxx, TxCxxx
Omniset TPR100, TET10x, TPC100, TEC10xEx Safety Instructions (XA) -
