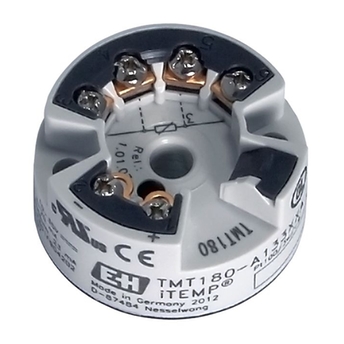

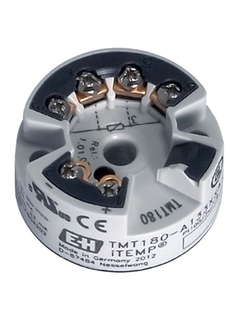

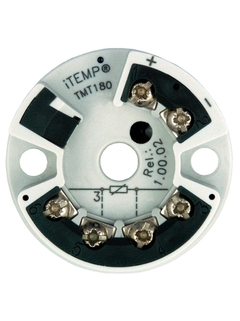

iTEMP TMT180
Temperature head transmitter

iTEMP TMT180
Temperature head transmitter ©Endress+Hauser
iTEMP TMT180
Temperature head transmitter ©Endress+Hauser

Transformation of the sensor signal into a stable and standardized output signal for all industries

The transmitter is designed for the transformation of an RTD Pt100 sensor signal. Various measurement ranges are configurable. The standardized output signal used for process measurement is a 4 to 20 mA signal. This means a fast, easy and cost-saving temperature measuring as well as reliable and precise measured values for for a wide range of non-ex industry applications.

  • Simple products

  • Easy to select, install and operate

Technical excellence

Simplicity

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity

  • Specialized products

  • Designed for demanding applications

Technical excellence

Simplicity

Variable

FLEX selections Technical excellence Simplicity
  • F
  • L
  • E
  • X

Fundamental selection

Meet your basic measurement needs

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Lean selection

Handle your core processes easily

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Extended selection

Optimize your processes with innovative technologies

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Xpert selection

Master your most challenging applications

Technical excellence
Simplicity

Variable

  • Specs at a glance

    • Accuracy

      Pt100, -200...650 °C (-328...1.202 °F) <= 0.2K / 0.08% span
      Pt100, -50...250 °C (-58...482 °F) <= 0.1 K /0.08% span
      Pt100, -50...250 °C (-58...482 °F) <= 0.2 K /0.08% span

please wait Loading alternative products

Quick selection

Choose from our suggested options
Sales price
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

or

Individual configuration

Continue your selection from all possible options
  • Benefits

    • High accuracy in total ambient temperature range

    • Fault signal on sensor break or short circuit, presettable to NAMUR NE 43

    • EMC according to NAMUR NE 21, CE

    • Online configuration during measurement using SETUP connector

    • Customer specific measurement range...

  • Field of application

    • PC programmable (PCP) temperature head transmitter for converting a Pt100 input signal into a scalable 4 to 20 mA analog output signal

    • Input: Resistance thermometer (RTD) Pt100

    • Online configuration using PC with configuration kit and PC software

Features and specifications

Back

Details

  • Measuring principle

    Head transmitter

  • Input

    1 x Pt100

  • Output

    1 x analog 4...20 mA

  • Auxiliary power supply

    10...35 V DC

  • Communication

    PCP (pc-programmable)

  • Installation

    Terminal head form B

  • Accuracy

    Pt100, -200...650 °C (-328...1.202 °F) <= 0.2K / 0.08% span

    Pt100, -50...250 °C (-58...482 °F) <= 0.1 K /0.08% span

    Pt100, -50...250 °C (-58...482 °F) <= 0.2 K /0.08% span

  • Galvanic isolation

    no

  • Certification

    Marine approval

    UL according to 3111-1

    UL EX NI, IS

    GOST Metrology

    CSA General Purpose

    FM NI, Class I, Div. 2, Group ABCD

    CSA NI, Class I, Div.2, Group ABCD

    FM/CSA NI, Class I, Div. 2, Group ABCD

    GL (German Lloyd)

Documents / Manuals / Software

Accessories / Spare parts

Nr
Order code
Specification
    • Order code

      The unit is not repairable

    • Order code 51001112

      Spare part set for TMT181/187/188/182

      (4 screws, 6 springs, 10 spring rings)

    • Order code 71528231

      Adapter DIN rail mounting

      Clip according to IEC 60715 for temperature head transmitters. Packing unit: 2 pieces

    • Order code TXU10-

      Configuration Kit TXU10

      for PC-programmable devices. set-up programme+interface cable for PC with USB-Port.

    • Order code READWIN-

      Readwin 2000 Operation + Read. software

    • Order code TAF10-

      Field Housing

      Application: E+H Head transmitter. Housing: Alu IP66, 100x100x60mm.

  • Predecessor
