TMT142R
RTD thermometer, fieldtransmitter display

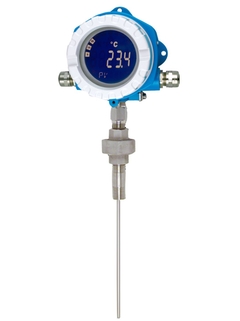

RTD thermometer TMT142R with field transmitter display

Safe monitoring of process temperatures in challenging applications e. g. in the Oil & Gas industry

The robust thermometer is designed for use in demanding and safety relevant applications e.g. in the Chemical, Oil & Gas and Energy industry. The thermometer fulfills the corresponding safety requirements due to various certificates and tests. The use of a transmitter leads to higher accuracy and reliability in comparison to directly wired sensors.

Simple products
Easy to select, install and operate

Technical excellence

Simplicity

What is FLEX?

Standard products
Reliable, robust and low-maintenance

Technical excellence

Simplicity

What is FLEX?

High-end products
Highly functional and convenient

Technical excellence

Simplicity

What is FLEX?

Specialized products
Designed for demanding applications

Technical excellence

Simplicity

Variable

What is FLEX?

FLEX selections	Technical excellence	Simplicity
F L E X Fundamental selection Meet your basic measurement needs	Technical excellence	Simplicity
F L E X Lean selection Handle your core processes easily	Technical excellence	Simplicity
F L E X Extended selection Optimize your processes with innovative technologies	Technical excellence	Simplicity
F L E X Xpert selection Master your most challenging applications	Technical excellence	Simplicity Variable

Learn more about the FLEX selections

Sizing

Compare

Specs at a glance
Accuracy

class A acc. to IEC 60751
class AA acc. to IEC 60751

Response time

depending on configuration
t50 = 3 s
t90 = 7 s

Max. process pressure (static)

Depending on thermowell

Operating temperature range

PT 100:
-200 °C ...600 °C
(-328 °F ...1.112 °F)

Max. immersion length on request

up to 30.000,00 mm (1.181,10'')

Quick selection

Choose from our suggested options

<%label%>
-- selected coding

-- selected label
<%label%>
Looking for more options? Please use the individual configurator to continue
<%feature%>
-- selected coding

-- selected label
<%feature%>
<%coding%>

<%label%>

Looking for more options? Please use the individual configurator to continue
Process Connection
<%coding%>

<%label%>

<%coding%>

<%label%>

<%message%>

TMT142R

Show details Hide details

Show details

Back to Quick Selection

<%feature%>

<%coding%>

<%label%>

Add to Cart

Optional add-ons

Please use the individual configurator to continue

Individual configuration

Continue your selection from all possible options

Configure

Additional components

F

L

E

X
RIA14
Loop-powered field indicator

Excellent readable indication of a 4…20 mA signal on-site for a better process overview!
More information
Compare
Loading price

Prices temporarily unavailable

Price after login

from CHF 803.-
RID14
8 channel field indicator for fieldbuses

Indication of up to 8 process or calculated values for FOUNDATION Fieldbus™ or PROFIBUS® PA protocol
More information
Compare
Loading price

Prices temporarily unavailable

Price after login

from CHF 803.-
F

L

E

X
HAW569
Surge arresters

Surge arresters for field mounting
More information
Compare
Loading price

Prices temporarily unavailable

Price after login

from CHF 803.-
F

L

E

X
RIA15
Loop-powered indicator for 4 to 20 mA or HART signals

For the indication of the 4 to 20 mA signal or the HART® values in the field or in the panel!
More information
Compare
Loading price

Prices temporarily unavailable

Price after login

from CHF 803.-
F

L

E

X
RIA45
Process meter with control unit

Multifunctional panel mounted process meter for monitoring and indication of analog measured values
More information
Compare
Loading price

Prices temporarily unavailable

Price after login

from CHF 803.-

Benefits
HART® protocol for operating the device on site using handheld terminal (DXR375) or remotely via the PC
Illuminated display, rotatable
Single Pt100 with 3 or 4 wires connection
Undervoltage detection responds immediately, output of falsified measured...

Show more
HART® protocol for operating the device on site using handheld terminal (DXR375) or remotely via the PC
Illuminated display, rotatable
Single Pt100 with 3 or 4 wires connection
Undervoltage detection responds immediately, output of falsified measured values is prevented
Highly accurate in entire operating temperature range
Approvals: ATEX (EEx i.a., EEx d and dust ignition-proof), CSA (IS, NI, XP and DIP)
Output simulation

Show less

Field of application
The temperature assembly TMT142R is a compact resistance thermometer specifically designed to fulfill the requirements of different process industries such as the chemical, petrochemical and energy but even suitable to other general purpose applications...

Show more
The temperature assembly TMT142R is a compact resistance thermometer specifically designed to fulfill the requirements of different process industries such as the chemical, petrochemical and energy but even suitable to other general purpose applications.
The thermometer assembly TMT142R consists of a temperature RTD sensor insert (Pt100) and an electronic two-wire temperature transmitter providing a 4 to 20 mA output, configurable via HART® protocol.

Show less

Features and specifications

Back

Details

Measuring principle

Resistance Temperature Detector
Characteristic / Application

US style

modular temperature assembly

for heavy duty applications

suitable for hazardous areas

threaded process connection

to use with thermowell

backlit display
Thermowell / protection tube

to use with thermowell
Insert / probe

mineral insulated (MI), flexible
Max. immersion length on request

up to 30.000,00 mm (1.181,10'')
Material protection tube/ thermowell

Not defined
Optional coating

Not defined
Process connection

male thread:

G1/2"

NPT1/2"

NPT3/4"

union nut:

NPT1/2"

M24x1.5
Operating temperature range

PT 100:

-200 °C ...600 °C

(-328 °F ...1.112 °F)
Max. process pressure (static)

Depending on thermowell
Accuracy

class A acc. to IEC 60751

class AA acc. to IEC 60751
Response time

depending on configuration

t50 = 3 s

t90 = 7 s
Integration head transmitter

yes (4 … 20 mA; HART)
Ex - approvals

ATEX II

Explosion proof
Certification

Gost Metrology

Show more
Show less
