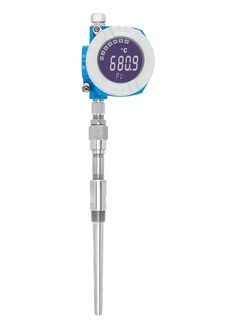

Omnigrad S TMT162R
Pt100 Thermometer, Field transmitter
Safe monitoring of process temperatures in challenging applications e. g. in the Oil & Gas industry
The robust thermometer is designed for use in demanding and safety relevant applications e.g. in the Chemical, Oil & Gas and Energy industry. The thermometer fulfills the corresponding safety requirements due to various certificates and tests. The use of a transmitter leads to higher accuracy and reliability in comparison to directly wired sensors.
Additional components
-
Benefits
Dual compartment housing
Backlit display with large measured value, bar graph and fault condition indication
Galvanic isolation 2 kV (sensor input to the output)
Wide range of threaded thermowell connections available as standard
Replaceable measuring...
-
Field of application
Chemical/pharmaceutical industry
Petrochemical industry
Energy industry
Paper industry
General industrial applications
The TMT162R RTD assembly comprises a measuring insert (Pt100) and an electronic field transmitter with HART®, FOUNDATION Fieldbus™...
Documents / Manuals / Software
-
Technical information TMT162R
RTD assembly with HART®-, FOUNDATION Fieldbus™- or PROFIBUS® PA field
transmitterTechnical Information (TI) -
Omnigrad S RTD and TC Thermometer with display
TMT162R, TMT162C
