Omnigrad T TST310
RTD thermometer, temperature cable probe

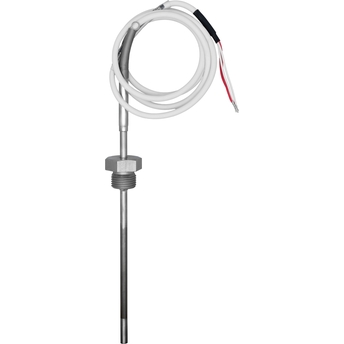

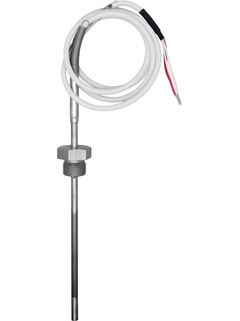

Pt100 RTD thermometer TST310 temperature cable probe

Cost efficient Pt100 sensor for use in many process and laboratory applications

The RTD cable probe is easy to install and provide a high operational safety due to reliable and accurate temperature measurement in common processes. The probe is specially suited to temperature measurement in machinery, laboratory equipment and plants in gaseous or liquid medium like air, water, oil, etc. Without additional thermowell the probe sheath is directly in contact with the process medium. This enables the cable probe to detect rapid temperature changes fast and accurate.

Add to Cart
Configure
Sizing
Pricing after login and configuration

Compare

Additional components

RIA45
Process meter with control unit

Multifunctional panel mounted process meter for monitoring and indication of analog measured values
More information
Compare
RIA46
Field meter with control unit

Multifunctional field meter for monitoring and indication of analog measured values
More information
Compare
RMA42
Process transmitter with control unit

Universal transmitter, loop power supply, barrier and limit switch in one device!
More information
Compare
EngyCal RH33
BTU meter

Custody transfer BTU meter for recording heat quantities of water
More information
Compare
RTA421
Limit switch

Contactor with loop power supply for monitoring current or voltage signals
More information
Compare

Benefits
High flexibility through user-specific insertion lengths and variable process connections
Fast response time
Single or double Pt100 sensor of accuracy class A, B, or AA as per IEC 60751
Types of protection for use in hazardous locations: Intrinsic safety (...

Show more
High flexibility through user-specific insertion lengths and variable process connections
Fast response time
Single or double Pt100 sensor of accuracy class A, B, or AA as per IEC 60751
Types of protection for use in hazardous locations: Intrinsic safety (Ex ia) and non-sparking (Ex nA)

Marine approval

Show less

Field of application

The resistance thermometer is specially suited to temperature measurement in machinery, laboratory equipment and plants in gaseous or liquid media like air, water, oil and others.

Features and specifications

Back

Details

Measuring principle

Resistance Temperature Detector
Characteristic / Application

metric style

cable probe

suitable for hazardous areas

process connection as compression fitting
Terminal head

Not defined
Thermowell / protection tube

without (not intended to use with thermowell)
Insert / probe

mineral insulated (MI), flexible
Outer diameter protection tube / Insert

3,0 mm (0,12'')

6,0 mm (0,24'')
Max. immersion length on request

up to 10.000,00 mm (393,70'')
Material protection tube/ thermowell

1.4404 (316L)

1.4571 (316Ti)
Process connection

male thread:

G1/4"

G1/2"

M10x1

M8x1

compression fitting:

G1/8"

G1/4"

G1/2"

NPT1/4"

NPT1/2"

M10x1

M8x1
Tip shape

straight
Operating temperature range

PT 100:

-50 °C ...400 °C

(-58 °F ...752 °F)
Max. process pressure (static)

at 20 °C: 25 bar (363 psi)
Accuracy

class A acc. to IEC 60751

class B acc. to IEC 60751

class AA acc. to IEC 60751
Response time

t50 = 3 s

t90 = 6 s
Integration head transmitter

no
Ex - approvals

ATEX II

NEPSI

IECEx

Marine approval

Show more
Show less

Documents / Manuals / Software

Download type

Filter

Technical information Omnigrad T TST310
"RTD thermometer, can be screwed in or inserted; with fixed connected"
cable and anti-kink spring

Technical Information (TI)
TST310 Safety instructions
Proof of intrinsic safety
Control Drawing

Ex Safety Instructions (XA)
Omnigrad TR1x, TR4x, TR88, TR6x, TC1x, TC88, TEC420, TC6x ATEX: II 1D, II 1/2D Ex ia IIIC or II 1G, II 1/2G Ex ia IIC IECEx: Ex iaIIC Safety Instructions
Safety instructions for electrical apparatus certified for use in
explosion-hazardous areas.

Ex Safety Instructions (XA)
Omniset TPx100, Omnigrad TSx310 0ExiaIICT6...T1 X Safety Instructions
Safety Instructions EAC: 0ExiaIICT6...T1 X, Omniset TPx100, Omnigrad
TSx310

Ex Safety Instructions (XA)
Omnigrad TRxx, TCxx, TxCxxx 0ExiaIICT6...T1 X Safety Instructions
Safety Instructions 0ExiaIICT6...T1 X, RTD/TC modular thermometers
Omnigrad TRxx, TCxx, TxCxxx

Ex Safety Instructions (XA)
RTD/TC thermometers ATEX II 3G, II 3D Safety Instructions
Safety instructions for electrical apparatus certified for use in
explosion-hazardous areas.

Ex Safety Instructions (XA)
iTHERM TS111, TM211 Omniset TPx100, Omnigrad TSx310 RTD/TC inserts and cable thermometers ATEX: II1D, II1/2D Ex ia IIIC or II1G, II1/2G Ex ia IIC IECEx: Ex ia IIC Ga, Ga/Gb
Safety instructions for electrical apparatus certified for use in
explosion-hazardous areas.

Ex Safety Instructions (XA)
Safety instructions ATEX II1GD or II 1/2 GD
RTD / TC inserts and cable thermometers
Omniset TPR100, TPC100, TSx310

Ex Safety Instructions (XA)
温度测量
过程工业用温度传感器和温度变送器

Fields of Activities (FA)

12/14

Chinese
Pomiar temperatury
Czujniki i przetworniki pomiarowe
do kontroli przemysłowych procesów technologicznych

Fields of Activities (FA)

10/14

Polish
Измерение температуры
Датчики температуры и преобразователи для любых
отраслей промышленности.

Fields of Activities (FA)

06/13

Russian
Misura della temperatura
Termometri e trasmettitori
per l'industria di processo

Fields of Activities (FA)

04/18

Italian
Catálogo medición temperatura
Termómetros y transmisores para la industria de proceso

Fields of Activities (FA)

04/18

Spanish
Mesure de température
Capteurs et transmetteurs pour les industries de process

Fields of Activities (FA)

04/18

fr
Temperature measurement
Thermometers and transmitters for the process industry

Fields of Activities (FA)

04/18

English
Temperature measurement
Thermometers and transmitters for the process industry

Fields of Activities (FA)

03/19

English
Temperaturmesstechnik
Thermometer und Transmitter für die Prozessindustrie

Fields of Activities (FA)

03/19

German
Catálogo Medición de Temperatura
Termómetros y transmisores para la industria de proceso

Fields of Activities (FA)

03/17

Spanish
Sıcaklık Ölçümü
Proses endüstrisi için termometreler ve transmiterler

Fields of Activities (FA)

03/13

Turkish
Field of activities FA Temperature measurement
Thermometers and transmitters for the process industry

Fields of Activities (FA)

03/13

English
Измерение температуры
Ключевые особенности термометров Endress+Hauser для нефтегазовой отрасли

Competence Brochure (CP)

08/11

Russian
Инженерные решения по термометрии
Специальные решения по термометрии для химической и
нефтеперерабатывающей промышленности

Competence Brochure (CP)

04/10

Russian
ACCESSORIES: TC INSERT, head transmitters, Process RTD Direct contact, Process RTD General purpose, Process RTD Heavy duty, Process RTD Hygienic, Process TC direct in contact, Process TC General purpose, Process TC Heavy duty
Product Code: TMT85-, TPC100-, TR10-, TR11-, TR12-, TR13-, TR15-, TR24-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TSC310-, TST310-, TMT84-, TMT82-, TMT188-, TMT187-, TMT182-, TMT181-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-
Declaration Number: HE_00237_03.15
Manufacturer Specification: Explosion protection, EMC

Manufacturer Declaration

Russian
Process RTD Direct contact, Process TC direct in contact
Product Code: TSC310-, TST310-
Declaration Number: MD-14002A

Manufacturer Declaration

German , English
Process RTD Direct contact
Product Code: TST310-
Declaration Number: HE_00527_01.17
Manufacturer Specification: RoHS

Manufacturer Declaration

English
Process TC Heavy duty, Process TC General purpose, Process TC direct in contact, Process TC Direct contact, Process RTD Hygienic, Process RTD Heavy duty, Process RTD General purpose, Process RTD Direct contact, ACCESSORIES: T_INSERTS, ACCESSORIES: TC INSERT, ACCESSORIES: RTD INSERT
Product Code: TR11-, TR12-, TR13-, TR15-, TR24-, TR25-, TR45-, TR47-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TS111-, TSC310-, TST310-, TR10-, TC10-, TC12-, TC13-, TC15-, TC61-, TC62-, TC63-, TC65-, TC66-, TC88-, TEC420-, TM111-, TM131-, TM411-, TM412-, TPC100-, TPR100-
Declaration Number: EC_00169_02.16

EU Declaration

German , English , fr
RTD-thermometer, Process TC Heavy duty, Process TC General purpose, Process TC Explosion proof, Process TC direct in contact, Process TC Direct contact, Process RTD Hygienic, Process RTD Heavy duty, Process RTD General purpose, Process RTD Explosion proof, Process RTD direct in contact, Process RTD Direct contact, Plugs RTD direct contact, Magphant, Low cost RTD General purpose, Industrial Modular Thermometer
Product Code: TR15-, TR13-, TR12-, TR11-, TR10-, TMT470L-, TMT162R-, TMT162C-, TMT142R-, TMT142C-, TMR35L-, TMR35-, TMR31L-, TMR31-, TM411-, TM401-, TH56-, TH55-, TH54-, TH53-, TH52-, TH51-, TR24-, TTR35-, TTR31-, TST90-, TST602-, TST487-, TST434-, TST41N-, TST414-, TST410-, TST40N-, TST310-, TST187-, TSM487-, TSM187-, TSC310-, TR88-, TR66-, TR65-, TR63-, TR62-, TR61-, TR25-, TH27-, T55-, T54-, T53-, T15-, T14-, T13-, OTR96-, OTR95-, OTR94-, OTR93-, OTR92-, OTR91-, OTR90-, OTR35-, OTR31-, MLTTS01-, MLTTS00-, GPTL-, DTT35L-, DTT35-, DTT31L-, DTT31-, TAF11-, TH18-, TH17-, TH15-, TH14-, TH13-, TH12-, TH11-, TEC420-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-, TAF16-, TAF12T-, TAF12S-, TAF12D-
Declaration Number: EC_00568_01.17

EU Declaration

German , English , fr
Process RTD General purpose, Process TC General purpose, Process RTD Hygienic, Process RTD Heavy duty, Process RTD Direct contact, Process TC Heavy duty, Process TC direct in contact, ACCESSORIES: RTD INSERT, ACCESSORIES: TC INSERT, ACCESSORIES: T_INSERTS
Product Code: TC10-, TC12-, TC13-, TR11-, TR12-, TR13-, TR15-, TR24-, TM411-, TM412-, TR10-, TR45-, TR47-, TR88-, TR66-, TR65-, TR63-, TR62-, TR61-, TST310-, TC15-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TSC310-, TPR100-, TPC100-, TS111-
Declaration Number: EC_00177_01.16

EU Declaration

German , English , fr
ACCESSORIES: RTD INSERT, ACCESSORIES: TC INSERT, ACCESSORIES: T_INSERTS, Process RTD Direct contact, Process RTD General purpose, Process RTD Heavy duty, Process RTD Hygienic
Product Code: TR47-, TR48-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TS101-, TS111-, TST310-, TST434-, TST602-, TR45-, TR44-, TR25-, TR24-, TR15-, TR13-, TR12-, TR11-, TR10-, TPR300-, TPR100-, TM411-, TM401-, TET300-
Region/Country: Russia (TR CU)
Approval Agency: EAC
Approval Number: TC RU D-DE.AZ01.B.01156

Miscellaneous

Russian
ACCESSORIES: RTD INSERT, ACCESSORIES: TC INSERT, Process RTD Direct contact, Process RTD General purpose, Process RTD Heavy duty, Process RTD Hygienic, Process TC direct in contact, Process TC General purpose, Process TC Heavy duty
Product Code: TR12-, TR13-, TR15-, TR24-, TR45-, TR47-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TSC310-, TST310-, TR11-, TR10-, TPR100-, TPC100-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-
Region/Country: Russia (TR CU)
Approval Agency: EAC
Protection: Ex d, Ex ia, Ex tb, Ex tD A20/A21 IP6X, Ex tD A21 IP6X, Ex ta/tb

Explosion Protection

Russian
ACCESSORIES: RTD INSERT, ACCESSORIES: TC INSERT, Process RTD Direct contact, Process RTD General purpose, Process RTD Heavy duty, Process RTD Hygienic, Process TC Direct contact, Process TC direct in contact
Product Code: TR12-, TR13-, TR15-, TR24-, TR45-, TR47-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TSC310-, TST310-, TR11-, TR10-, TPR100-, TPC100-, TEC420-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-
Region/Country: China
Approval Agency: NEPSI
Protection: Ex ia IIC T6...T1

Explosion Protection

Chinese
ACCESSORIES: RTD INSERT, ACCESSORIES: TC INSERT, Process RTD Direct contact, Process RTD General purpose, Process RTD Heavy duty, Process RTD Hygienic, Process TC Direct contact, Process TC direct in contact
Product Code: TR12-, TR13-, TR15-, TR24-, TR45-, TR47-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TS111-, TSC310-, TST310-, TR11-, TR10-, TPR100-, TPC100-, TM411-, TEC420-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-
Region/Country: Europe (ATEX)
Approval Agency: DEKRA
Category: II 1/2 D, II 1/2 G, II 1 D, II 1 G
Protection: Ex ia IIC T6...T1 Ga, Ex ia IIC T6...T1 Ga/Gb, Ex ia IIIC Txxx°C Da

Explosion Protection

English
Process RTD Direct contact, Process TC direct in contact
Product Code: TSC310-, TST310-
Region/Country: South Korea
Approval Agency: KOSHA
Protection: Ex ia IIC T6...T1

Explosion Protection
ACCESSORIES: RTD INSERT, ACCESSORIES: TC INSERT, Process RTD Direct contact, Process RTD General purpose, Process RTD Heavy duty, Process RTD Hygienic, Process TC Direct contact, Process TC direct in contact
Product Code: TR11-, TR12-, TR13-, TR15-, TR24-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TSC310-, TST310-, TR10-, TC10-, TC12-, TC13-, TC15-, TC61-, TC62-, TC63-, TC65-, TC66-, TC88-, TM411-, TPC100-, TPR100-
Region/Country: China
Approval Agency: NEPSI

Explosion Protection

English
ACCESSORIES: RTD INSERT, ACCESSORIES: TC INSERT, Process RTD Direct contact, Process RTD General purpose, Process RTD Heavy duty, Process RTD Hygienic, Process TC Direct contact, Process TC direct in contact
Product Code: TR12-, TR13-, TR15-, TR24-, TR45-, TR47-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TS111-, TSC310-, TST310-, TR11-, TR10-, TPR100-, TPC100-, TM411-, TEC420-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-
Region/Country: International (IECEx)
Approval Agency: DEKRA
Protection: Ex ia IIC T6...T1 Ga, Ex ia IIC T6...T1 Ga/Gb, Ex ia IIIC Txxx°C Da, Ex ia IIIC Txxx°C Da/Db

Explosion Protection

English
Process TC Heavy duty, Process TC General purpose, Process TC direct in contact, Process TC Direct contact, Process RTD Hygienic, Process RTD Heavy duty, Process RTD General purpose, Process RTD Direct contact, process displays, head transmitters, Field transmitter, ACCESSORIES: TC INSERT, ACCESSORIES: RTD INSERT
Product Code: TMT85-, TPC100-, TPR100-, TR10-, TR11-, TR12-, TR13-, TR15-, TR24-, TR45-, TR47-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TSC310-, TST310-, TMT84-, TMT82-, TMT162-, TMT142-, TEC420-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-, RID16-, RID14-, RIA16-, RIA15-, RIA14-
Region/Country: India
Approval Agency: NAGPUR
Protection: Ex ia IIC T6...T1, Ex ia IIC T6...T4, Ex ib IIC T6...T4

Explosion Protection

English
DIN Rail Transmitter, Field transmitter, Low cost RTD General purpose, Process RTD Direct contact, Process RTD Explosion proof, Process RTD General purpose, Process RTD Heavy duty, Process RTD Hygienic, Process RTD direct in contact, Process TC Explosion proof, RTD complete assembly, RTD thermometer Zone "0", RTD-thermometer, head transmitters
Product Code: TR44-, TR45-, TR47-, TR48-, TSM187-, TSM470-, TSM487-, TST310-, TST40N-, TST410-, TST414-, TST41N-, TST90-, TR15-, TMT121-, TMT122-, TMT127-, TMT128-, TMT162-, TMT180-, TMT181-, TMT182-, TMT188-, TR10-, TR11-, TR12-, TR13-
Region/Country: China
Approval Agency: NEPSI
Approval Number: CN_SMB_2004-T180

Metrology

Chinese
ACCESSORIES: RTD INSERT, ACCESSORIES: TC INSERT, ACCESSORIES: T_INSERTS, Low cost RTD General purpose, Process RTD Direct contact, Process RTD General purpose, Process RTD Heavy duty, RTD-thermometer
Product Code: TR88-, TS111-, TSM187-, TSM487-, TST187-, TST310-, TST40N-, TST410-, TST414-, TST41N-, TST434-, TST487-, TST602-, TR66-, TR65-, TR63-, TR62-, TR61-, TR25-, TR24-, TR15-, TR13-, TR12-, TR11-, TR10-, TPR300-, TPR100-
Region/Country: Russia
Approval Agency: Rosstandart
Approval Number: IT.C.32.004.A_66572

Metrology

Russian
Low cost RTD General purpose, Process RTD Direct contact, Process RTD Explosion proof, Process RTD General purpose, Process RTD Heavy duty, RTD thermometer Zone "0"
Product Code: TST410-, TST310-, TST264-, TST262-, TST221-, TST220-, TST90-, TST80-, TST72-, TST420-, TST42-, TST414-, TST120-, TST12-, TST111-, TST110-, TST11-, TST10-, TST210-, TST141-, TST140-, TST121-, TST130-, TST131-
Region/Country: Romania
Approval Agency: BRML
Approval Number: RO_BRML_200_97

Metrology
Process RTD Direct contact
Product Code: TST310-
Region/Country: International
Approval Agency: RINA

Marine

English

Show more
Show less

Accessories / Spare parts

???Show as Pdf???

Filter

Order code

Specification

- Order code

  The unit is not repairable

  Show details Show less
- Order code 60011575

  Gasket spares TA50-QB/FB D=3mm, AISI 316

  set includes 10 gaskets

  Show details Show less
- Order code 60011598

  Gasket spares TA50-QP/FP D=3mm, PTFE

  set includes 10 gaskets

  Show details Show less
- Order code 60011599

  Gasket spares TA50-GB/NB/HB/PB/BB/CB/DB

  D=6.1mm, AISI316, set includes 10 gaskets

  Show details Show less
- Order code 60011600

  Gasket spares TA50-GP/NP/HP/PP/BP/CP/DP

  D=6.1mm, PTFE, set includes 10 gaskets

  Show details Show less
C
- Nr C Order code TA50-

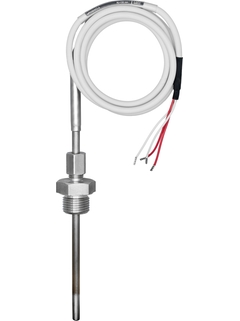

  Compression Fitting TA50

  Screw in.

  Show details Show less

Show more
Show less

Success stories

News
Protection of pumps... and people

Adding a few sensors to a pump system can help make pumps run more efficiently and help discover problems before they get too serious – and, they may also save a life
Read the full story
Upcoming events
22.10.2019 - 25.10.2019

Certified Training for PROFIBUS PA Engineer

With the help of actual hands-on tasks you will learn how PROFIBUS fieldbus technology works in detail.

Upcoming events
22.06.2020 - 26.06.2020

Certified Training for PROFIBUS DP/PA Engineer

With the help of actual hands-on tasks you will learn how PROFIBUS fieldbus technology works in detail. At the end of the course you will be able to design and commission a PROFIBUS fieldbus network.

Omnigrad T TST310
RTD thermometer, temperature cable probe

Cost efficient Pt100 sensor for use in many process and laboratory applications

Additional components

RIA45
Process meter with control unit

RIA46
Field meter with control unit

RMA42
Process transmitter with control unit

EngyCal RH33
BTU meter

RTA421
Limit switch

Benefits

Field of application

Features and specifications

Details

Measuring principle

Characteristic / Application

Terminal head

Thermowell / protection tube

Insert / probe

Outer diameter protection tube / Insert

Max. immersion length on request

Material protection tube/ thermowell

Process connection

Tip shape

Operating temperature range

Max. process pressure (static)

Accuracy

Response time

Integration head transmitter

Ex - approvals

Documents / Manuals / Software

Accessories / Spare parts

Success stories

Iplom enhances catalyst life, process safety and efficiency

Optimized logistics concept for tank systems

Protection of pumps... and people

Omnigrad T TST310RTD thermometer, temperature cable probe

Cost efficient Pt100 sensor for use in many process and laboratory applications

Additional components

RIA45Process meter with control unit

RIA46Field meter with control unit

RMA42Process transmitter with control unit

EngyCal RH33BTU meter

RTA421Limit switch

Benefits

Field of application

Features and specifications

Details

Measuring principle

Characteristic / Application

Terminal head

Thermowell / protection tube

Insert / probe

Outer diameter protection tube / Insert

Max. immersion length on request

Material protection tube/ thermowell

Process connection

Tip shape

Operating temperature range

Max. process pressure (static)

Accuracy

Response time

Integration head transmitter

Ex - approvals

Documents / Manuals / Software

Accessories / Spare parts

Success stories

Iplom enhances catalyst life, process safety and efficiency

Optimized logistics concept for tank systems

Protection of pumps... and people

Omnigrad T TST310
RTD thermometer, temperature cable probe

RIA45
Process meter with control unit

RIA46
Field meter with control unit

RMA42
Process transmitter with control unit

EngyCal RH33
BTU meter

RTA421
Limit switch
