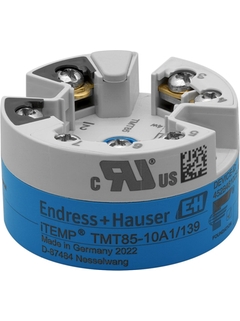

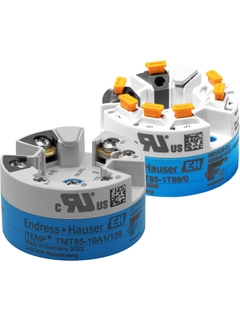

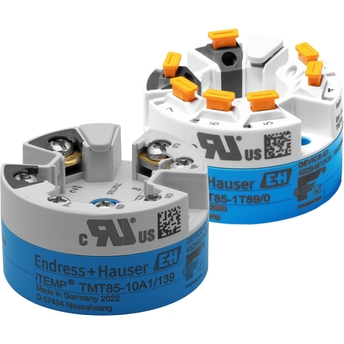

iTEMP TMT85
Temperature head transmitter

Transformation of sensor signals into standardized digital output signals for all industries

Unsurpassed reliability, accuracy and long-term stability in critical processes over all industries. The configurable transmitter not only transfers digital converted signals from RTD and TC sensors, it also transfers resistance and voltage signals using FOUNDATION Fieldbus™ communication. High measurement point availability by means of sensor monitoring functions and device hardware fault recognition. Optimization of the measurement accuracy by sensor-transmitter matching.

Add to Cart
Configure
Sizing
Pricing after login and configuration

Compare

Additional components

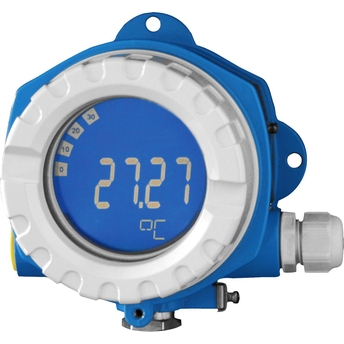

RID14
8 channel field indicator for fieldbuses

Indication of up to 8 process or calculated values for FOUNDATION Fieldbus™ or PROFIBUS® PA protocol
More information
Compare

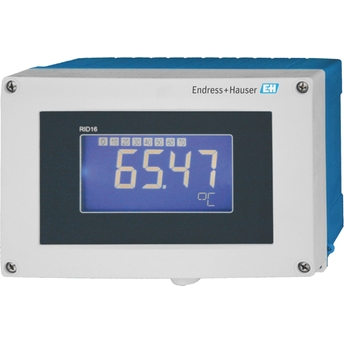

RID16
8 channel field indicator for fieldbuses

Indication of up to 8 process or calculated values for FOUNDATION Fieldbus™ or PROFIBUS® PA protocol
More information
Compare
HAW569
Surge arresters

Surge arresters for field mounting
More information
Compare

Benefits
Easy and standardized communication via FOUNDATION Fieldbus™ H1
Straightforward design of measuring points in Ex-areas through FISCO/FNICO conformity in accordance with IEC 600079-27
Safe operation in hazardous areas thanks to international approvals...

Show more
Easy and standardized communication via FOUNDATION Fieldbus™ H1
Straightforward design of measuring points in Ex-areas through FISCO/FNICO conformity in accordance with IEC 600079-27
Safe operation in hazardous areas thanks to international approvals such as FM IS, NI; CSA IS, NI; ATEX Ex ia, Ex nA for intrinsically safe installation in zone 1 and zone 2
High accuracy through sensor-transmitter matching
Reliable operation with sensor monitoring and device hardware fault recognition
Several mounting versions and sensor connection combinations
Rapid no-tools wiring due to optional spring terminal technology

Show less

Field of application
2 universal input channels and FF™ protocol for the conversion of input signals into digital output signals
The device stands out due to signal reliability, long-term stability, high precision and advanced diagnostics (important in critical processes)
...

Show more
2 universal input channels and FF™ protocol for the conversion of input signals into digital output signals
The device stands out due to signal reliability, long-term stability, high precision and advanced diagnostics (important in critical processes)
For the highest level of safety, availability and risk reduction
Installation in flat-face terminal head as per DIN EN 50446

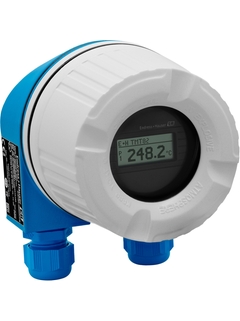

Optional installation in field housings even for use in Ex d areas - with mounting brackets for wall or pipe mounting

Show less

Features and specifications

Back

Details

Measuring principle

Head transmitter
Input

2 x RTD, TC, Ohm, mV
Output

FOUNDATION Fieldbus H1
Auxiliary power supply

9...32 V DC (FOUNDATION Fieldbus)

9...17,5 V DC (FISCO/FNICO)
Communication

FOUNDATION Fieldbus H1
Installation

Terminal head form B
Accuracy

(Pt100) <= 0,1 K

(Pt100) <= 0,18 °F
Galvanic isolation

yes
Certification

ATEX II1G Ex ia IIC T4/T5/T6

ATEX II3G Ex nA IIC T6

ATEX II3D Ex tc IIIC Dc

ATEX II1G Ex ia IIC T6, II3D

ATEX II3G Ex nA IIC T6, II3D

ATEX II2G Ex d T6, II2D Ex tb IIIC

FM+CSA IS, NI I/1+2/ABCD

FM IS, NI I/1+2/ABCD

CSA IS, NI I/1+2/ABCD

CSA XP, NI, DIP I, II, III/1+2/A-G

NEPSI Ex ia IIC T4/T5/T6

NEPSI Ex nA IIC T4/T5/T6

IECEx Ex ia IIC T4/T5/T6

FM XP, NI, DIP I, II, III/1+2/A-G

IECEx Ex tb IIIC Db

IECEx Ex d T6 Gb, Ex tb IIIC Db

ATEX IECEx II1G Ex ia IIC T6 Ga

FM+CSA IS, NI I/1+2/ABCD

ATEX IECEx II1G Ex ia IIC T6 Ga

Show more
Show less

Documents / Manuals / Software

Download type

Filter

iTEMP TMT85
Dual Input Temperature Transmitter
with FOUNDATION Fieldbus™ communication

Technical Information (TI)
TID10 Operating Instructions
Pluggable display for head transmitters (TMT8x)

Operating Instruction (BA)
iTEMP TMT85
Temperature transmitter
with FOUNDATION Fieldbus™ - protocol

Operating Instruction (BA)
Brief operating instructions iTEMP® TMT85
Two channel temperature head transmitter with FOUNDATION
Fieldbus™ protocol

Short Instruction (KA)

03/16

German , English , Italian
ATEX Safety instructions iTEMP® TMT84 and TMT85
Two channel temperature head transmitters with FOUNDATION
Fieldbus-/PROFIBUS® PA-protocol

Ex Safety Instructions (XA)
iTEMP TMT82, TMT84, TMT85 ATEX: II 2(1)G Ex ia [ia Ga] IIC T6...T4 Gb IECEx: Ex ia [ia Ga] IIC T6...T4 Gb
Safety instructions for electrical apparatus certified for use in
explosion-hazardous areas.

Ex Safety Instructions (XA)
iTEMP TMT84, TMT85 (OTMT84, OTMT85)
ATEX: II1G Ex ia IIC T6…T4 Ga
IECEx: Ex ia IIC T6…T4 Ga

Ex Safety Instructions (XA)
iTEMP TMT82, TMT84, TMT85 ATEX: II 3D: Ex ia IIIC T85 °C...T120 °C Dc II 3D: Ex tc IIIC T85 °C...T105 °C Dc II 3D: Ex tc IIIC T105 °C Dc II 3D: Ex tc IIIC T120 °C Dc II 3G: Ex nA IIC T6...T4 Gc Safety Instructions
Safety instructions for electrical apparatus certified for use in
explosion-hazardous areas.

Ex Safety Instructions (XA)
ATEX Safety instructions iTEMP® TMT84 and TMT85
Two channel temperature head transmitters with FOUNDATION
Fieldbus-/PROFIBUS® PA-protocol

Ex Safety Instructions (XA)
iTEMP TMT71, TMT72, TMT82, TMT84, TMT85 ATEX: II 2G Ex db IIC Gb, II 2D Ex tb IIIC Db IECEx: Ex db IIC Gb, Ex tb IIIC Db Safety Instructions
Safety instructions for electrical apparatus certified for use in
explosion-hazardous areas.

Ex Safety Instructions (XA)
iTEMP TMT82, TMT84, TMT85 ATEX: II 3G: Ex ic IIC T6...T4 Gc Safety Instructions
Safety instructions for electrical apparatus certified for use in
explosion-hazardous areas.

Ex Safety Instructions (XA)
Temperature transmitter 0ExiaIICT6...T4 X 1ExdIICT6...T4 X Safety Instructions
Safety Instructions EAC: 0ExiaIICT6...T4 X, 1ExdIICT6...T4 X, iTEMP
TMT82, TMT84, TMT85 temperature transmitter

Ex Safety Instructions (XA)
Control Drawing FM XP, Non incendive, dust ignition proof, DIP ITEMP® TMT82, TMT84, TMT85
Temperature transmitter iTEMP® TMT8x. Installation Notes for hazardous
locations

Certificate FM/CSA (ZD)
Control Drawing FM Intrinsical Safety, Non incendive iTEMP® TMT84 and iTEMP® TMT85
Two channel temperature head transmitter with FOUNDATION
Fiedbus-/PROFIBUS® PA protocol
Installation notes for hazardous locations

Certificate FM/CSA (ZD)
Control Drawing CSA Intrinsical Safety, Non incendive iTEMP® TMT84 and iTEMP® TMT85
Two channel temperature head transmitter with FOUNDATION
Fiedbus-/PROFIBUS® PA protocol
Installation notes for hazardous locations

Certificate FM/CSA (ZD)
Control Drawing FM XP, Non incendive, Dust Ignition Proof iTEMP® TMT82, TMT84, TMT85
Temperature transmitter iTEMP® TMT82, TMT84, TMT85 Installation Notes
for hazardous locations

Certificate FM/CSA (ZD)
iTEMP® TMT84, TMT85 Control Drawing CSA (XP, NI, DIP)
Installation notes for
XP class I / Div. 1 / Groups ABCD
DIP Class II, III / Div. 1 / Groups EFG
NI Class I /Div. 2 / Groups ABCD

Certificate FM/CSA (ZD)
iTEMP® TMT85 FOUNDATION Fieldbus™ Manufacturer Information (MI)
Dual input temperature transmitter
