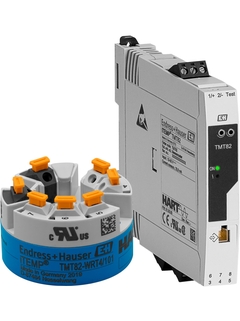

iTEMP TMT82 HART® temperature transmitter in terminal head form B as per DIN EN 50446 with push-in terminals,
DIN rail housing variant

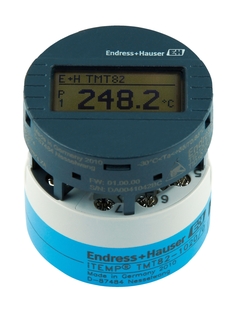

Display TID10 to plug on

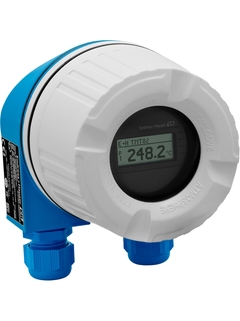

iTEMP TMT82 in field mount housing with separate terminal
compartment and integrated display for use in hazardous areas
Installed in field housing TA30H for use in Ex d applications

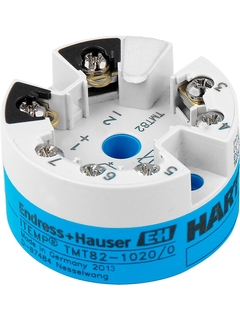

iTEMP TMT82 temperature transmitter in terminal head form B as per DIN EN 50446, with screw terminals
The iTEMP TMT82 is a highly reliable, accurate and long-term stable temperature transmitter for industrial processes requiring high availability.
The versatile 2-channel device converts universal sensor inputs such as thermocouples or RTD into stable, scalable 4 to 20 mA output signals and HART® communication. With its built-in smart sensor monitoring capability and diagnostic status information according to NAMUR NE 107, the SIL 2, SC3 certified transmitter increases process safety and uptime.
Standard products
Technical excellence
Simplicity
Specialized products
Technical excellence
Simplicity
Variable
| FLEX selections | Technical excellence | Simplicity |
|---|---|---|
Fundamental selection Meet your basic measurement needs |
Technical excellence
|
Simplicity
|
Lean selection Handle your core processes easily |
Technical excellence
|
Simplicity
|
Extended selection Optimize your processes with innovative technologies |
Technical excellence
|
Simplicity
|
Xpert selection Master your most challenging applications |
Technical excellence
|
Simplicity
Variable |
(Pt100) <= 0,1K (digital) + 0,03% (set range)
Loading alternative products
Robust temperature transmitter delivering precise, long-term stable measurements for high plant availability
SIL certification up to SIL2, SC3 according to IEC 61508:2010
Versatile mounting and housing options:
terminal head form B, DIN rail, field...
Safe operation in hazardous areas; International approvals such as FM, CSA, ATEX, EAC, NEPSI, IECEx, DNV GL
2-channel universal signal inputs: RTD, thermocouple, resistance (Ω) and voltage transmitters (mV), HART® 7 protocol
Suited for use in marine...
Dual-input temperature transmitter
with HART® protocol and SIL compliance
Pluggable display for head transmitters (TMT8x)
Dual-input temperature transmitter
with HART® protocol
2-channel temperature transmitter
ATEX:
II 3G: Ex ic IIC T6...T4 Gc
Safety instructions for electrical apparatus certified for use in
explosion-hazardous areas.
Safety instructions for electrical apparatus certified for use in
explosion-hazardous areas.
Temperature transmitters
ATEX:
II 2(1)G Ex ia [ia Ga] IIC T6...T4 Gb
IECEx:
Ex ia [ia Ga] IIC T6...T4 Gb
EAC:
0Ex ia IIC T6…T4 Ga X
Ex ia IIIC T85 °C...T120 °C Dc X
DIN rail transmitter
ATEX:
II 3G: Ex nA IIC T6... T4 Gc
Temperature transmitters
ATEX: II 2G Ex db IIC Gb, II 2D Ex tb IIIC Db
IECEx: Ex db IIC Gb, Ex tb IIIC Db
iTEMP TMT82
1Ex ib [ia Ga] IIC T6...T4 Gb X
Two channel temperature head transmitter with HART® protocol
Temperature transmitter, DIN rail housing
Temperature transmitter, DIN rail housing
EAC Ex
0Ex ia IIC T6...T4 Ga X
1Ex ib [ia Ga] IIC T6...T4 Gb X
1Ex d IIC T6...T4 Ga X
Temperature head transmitter iTEMP® HART TMT82
Installation Notes for hazardous locations
Temperature transmitter iTEMP® TMT82, TMT84, TMT85 Installation Notes
for hazardous locations
Temperature head transmitter iTEMP® HART TMT82 Installation Notes for
hazardous locations
EXPLOSION PROOF Class I / Div. 1 / Groups ABCD
DUST IGNITION PROOF Class II, III / Div. 1 / Groups EFG
NONINCENDIVE Class I / Div. 2 / Groups ABCD
Temperature transmitter iTEMP® TMT8x. Installation Notes for hazardous
locations
Functional Safety Manual
for users regarding software updates
(following the NAMUR recommendation 53)
iTEMP TMT82
Manufacturer information for users regarding softwareware updates (NE53)
New Device Revision: DevRev3
Device parametrization for safety-related application extended. Second
method “Expert
Mode”(SIL-Mode Activation = SiMA) has been added.
New firm-/software version: 01.01.10
perspektiven Energie 2014
Capteurs et transmetteurs pour les industries de process
过程工业用温度传感器和温度变送器
Czujniki i przetworniki pomiarowe
do kontroli przemysłowych procesów technologicznych
Датчики температуры и преобразователи для любых
отраслей промышленности.
Termometri e trasmettitori
per l'industria di processo
Termómetros y transmisores para la industria de proceso
Proses endüstrisi için termometreler ve transmiterler
Thermometers and transmitters for the process industry
Thermometer und Transmitter für die Prozessindustrie
Thermometers and transmitters for the process industry
Ключевые особенности термометров Endress+Hauser для нефтегазовой отрасли
Специальные решения по термометрии для химической и
нефтеперерабатывающей промышленности
Lösungen für Raffinerien und Petrochemie
A new generation of transmitters and components offers simple
operation and greater control
HART,
AMS Version: 10.5, 11.0, 11.1, 11.5
HART,
AMS Version: 10.5, 11.0, 11.1, 11.5, 12.0
HART,
PDM Version: 8.2.1, 9.1.0.4
HART,
AMS Version: 12.0, 12.5, 13.0, 13.1, 13.5, 14.0, 14.1
HART,
PDM Version: 6.1, 8.1, 8.2.1, 9.0.1
HART,
Field Device Manager Version: R430.1
HART,
PDM Version: 6.0 SP5, 6.1, 8.1
HART,
AMS Version: 12.0, 12.5, 13.0, 13.1, 13.5, 14.0, 14.1
HART,
Experion Version: R500
Field Device Manager Version: R500
HART,
DeviceCare Version: 1.07.00
Field Xpert - SMT70 Version: 1.05.00
FieldCare Version: 2.15.00
PACTwareVersion: 4.1
Common Device Interface,
DeviceCare Version: 1.07.00
Field Xpert - SMT70 Version: 1.05.00
FieldCare Version: 2.15.00
HART,
ArchestrA IDE Version: 4.0.04001
DeviceCare Version: 1.07.00
Field Device Manager Version: R500
Field Xpert - SMT70 Version: 1.05.00
FieldCare Version: 2.15.00
PACTware Version: 5.0 SP4
Plant Resource Manager Version: R3.31
HART,
DeviceCare Version: 1.07.00
Field Device Manager Version: R430.1
Field Xpert - SMT70 Version: 1.05.00
FieldCare Version: 2.15.00
Plant Resource Manager Version: R3.11, R3.12
HART,
Plant Resource Manager Version: R3.05, R3.11
HART,
Plant Resource Manager Version: R3.11, R3.12
HART,
Plant Resource Manager Version: R3.31
Common Device Interface,
DeviceCare Version: 1.05.00
FieldCare Version: 2.13.00
Product Code: OTMT82-, TMT82-
Declaration Number: HE_00466_02.17
Manufacturer Specification: RoHS
Product Code: TMT82-
Declaration Number: EC_00186_01.16
Product Code: TMT127-, TMT128-, TMT142-, TMT162-, TMT180-, TMT180L-, TMT181-, TMT181L-, TMT182-, TMT182L-, TMT187-, TMT188-, TMT80-, TMT82-, TMT84-, TMT85-, OTMT127-, OTMT128-, OTMT187-, OTMT188-, OTMT80-, OTMT82-, OTMT84-, OTMT85-, TID10-, TMT111L-, TMT112-, TMT112L-, TMT121-, TMT121L-, TMT122-, TMT125-
Declaration Number: EC_00567_01.17
Product Code: TMT71-, TMT72-, TMT82-, TMT84-, TMT85-
Declaration Number: EC_00095_04.15
Product Code: TMT82-
Declaration Number: EC_00727_02.18
Product Code: TMT71-, TMT72-, TMT82-, TMT84-, TMT85-
Declaration Number: EC_00187_03.16
Product Code: TMT82-, TMT84-, TMT85-
Declaration Number: EC_00332_01.16
Product Code: TMT188-, TMT71-, TMT72-, TMT80-, TMT82-, TMT84-, TMT85-, TPC100-, TPC300-, TS111-, TS211-, TST310-, TST602-, TMT187-, TMT182-, TMT181-, TMT180-, TMT162-, TMT142-, TMT128-, TMT127-, TMT122-, TMT121-, TMT112-, TMT111-, TET300-, TSC310-
Region/Country: Russia (TR CU)
Approval Agency: EAC
Approval Number: EAEC N RU D-DE.AB53.B.01191/20
Product Code: TMT71-, TMT72-, TMT82-, TMT84-, TMT85-
Region/Country: International (IECEx)
Approval Agency: DEKRA
Protection: Ex tb IIIC Txxx°C Db, Ex ia IIC T6...T4 Gb, Ex db IIC T6...T4 Gb
Product Code: TMT82-, TMT84-, TMT85-
Region/Country: USA
Approval Agency: FM
Category: I/1,2/A,B,C,D/T6...T4, I,II,III/1,2/A,B,C,D,E,F,G/T6...T4
Protection: IS/NI, XP/NI/DIP, AEx d IIC T6...T4 Gb, AEx ia IIC T6...T4 Ga
Product Code: TMT82-
Region/Country: Europe (ATEX)
Approval Agency: PTB
Category: II 1 G, II 2(1) G
Protection: Ex ia IIC T6...T4 Ga, Ex ia IIC T6...T4 Gb, Ex ib [ia Ga] IIC T6...T4 Gb
Product Code: TMT82-, TMT84-, TMT85-
Region/Country: Brazil
Approval Agency: TÜV
Protection: Ex d IIC T6...T4 Gb, Ex ia IIC T6...T4 Gb, Ex tb IIIC Txxx°C Db
Product Code: TMT85-, TPC100-, TPR100-, TR10-, TR11-, TR12-, TR13-, TR15-, TR24-, TR45-, TR47-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TSC310-, TST310-, TMT84-, TMT82-, TMT162-, TMT142-, TEC420-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-, RID16-, RID14-, RIA16-, RIA15-, RIA14-
Region/Country: India
Approval Agency: NAGPUR
Protection: Ex ia IIC T6...T1, Ex ia IIC T6...T4, Ex ib IIC T6...T4
Product Code: TMT85-, TMT84-, TMT82-, TMT188-, TMT187-, TMT182-, TMT181-, TMT162-, TMT142-, TMT128-, TMT127-, TMT122-, TMT121-, TMT112-, TMT111-, TID10-
Protection: [Ex ia Ga] IIC T6...T4 Gb, Ex d IIC T6...T4 Ga, Ex d IIC T6...T4 Ga/Gb, Ex d IIC T6...T4 Gb, Ex ia IIC T6...T4 Ga, Ex ia IIIC T6...T4 Dc, Ex tb IIIC Txxx°C Gb
Product Code: TMT71-, TMT72-, TMT82-, TMT84-, TMT85-
Region/Country: Europe (ATEX)
Approval Agency: DEKRA
Category: II 2 D, II 2 G
Protection: Ex ia IIC T6...T4 Gb, Ex tb IIIC Txxx°C Db, Ex db IIC T6...T4 Db
Product Code: TMT82-
Region/Country: Europe (ATEX)
Approval Agency: Bureau Veritas
Category: II 2 G, II 1 G, II 2 (1) G
Protection: Ex ia IIC T6...T4 Ga, Ex ia IIC T6...T4 Gb, Ex ib [ia Ga] IIC T6...T4 Gb
Product Code: TMT82-
Region/Country: International (IECEx)
Approval Agency: PTB
Protection: Ex ia IIC T6 Ga, Ex ib [ia Ga] IIC T6 Gb
Product Code: TID10-, TMT82-, TMT84-, TMT85-
Region/Country: China
Approval Agency: NEPSI
Protection: Ex ia IIC T6...T4
Product Code: TMT82-
Region/Country: China
Approval Agency: NEPSI
Protection: Ex ia IIC T6...T4 Ga, Ex nA IIC T6...T4 Gc
Product Code: TID10-, TMT82-, TMT85-, TMT84-
Region/Country: Canada
Approval Agency: CSA
Category: I,II,III/1,2/A,B,C,D,E,F,G/
Protection: XP, NI
Product Code: TMT82-, TID10-, TMT84-, TMT85-
Region/Country: Europe (ATEX)
Approval Agency: PTB
Category: II 2 G
Protection: Ex ia IIC T6...T4
Product Code: TMT82-
Region/Country: International (IECEx)
Approval Agency: Bureau Veritas
Protection: [Ex ia Ga], Ex ia
Product Code: TMT85-, TMT162-, TMT82-, TMT84-, TMT80-, TMT188-, TMT187-, TMT182-, TMT181-, TMT180-, TMT142-, TMT128-, TMT127-, TMT121-, TMT112-, TMT122-, TMT111-
Region/Country: Russia
Approval Agency: Rosstandart
Approval Number: OC.C.32.004.A NO 74639
Product Code: TS211-, TS111-, TR88-, TR66-, TR62-, TPR300-, TPR100-, TMT82-, TMT182-, TM131-
Approval Agency: NMI
Approval Number: NMI TC8683
Product Code: TMT82-
Region/Country: International
Approval Agency: TÜV
Product Code: TMT82-
Region/Country: International
Approval Agency: DNVGL
Product Code: TMT85-, TMT162-, TMT142-, RIA14-, RIA16-, RIA45-, RIA46-, RMA42-, RSG35-, RSG45-, TMR31-, TMR35-, TMT84-, TMT82-, TMT188-, TMT187-, TMT182-, TMT181-, TMT128-, TMT127-, TMT122-, TMT121-, TMT112-, TMT180-, TMT111-, TTR35-, TTR31-, RSG40-
Region/Country: Canada, USA
Approval Agency: UL
Product Code: TMT71-, TMT72-, TMT82-, TMT84-, TMT85-
Region/Country: Canada, USA
Approval Agency: CSA
The unit is not repairable
Fixing kit cpl.TMT8x/7x (european)
2x screws, 2x springs, 2x spring rings, 1x sealing CDI-connector
Set mounting bracket wall cpl. W06 std
Set mounting bracket pipe housing W06 st
Mount.bracket st.steel A4 wall/tube 2"
TID10 Service cable
Extension cable for the CDI-interface for remote operation of the TID10 display for service and maintenance work. Length: 40cm.
Adapter DIN rail mounting
Clip according to IEC 60715 for temperature head transmitters. Packing unit: 2 pieces
Service
Adapter M20x1.5 exter./M24x1.5 intern.VA
Blind plug M20x1.5 EEx-d+O-ring Alu
Blind plug M20x1.5 Ex-d+O-ring V4A
Blanks (blind) NPT1/2, 3.1655.53
Foam insert TMT82 dual chamber
Commubox FXA195
Modem to connect HART field devices to a computer via USB. Commissioning of field devices with software tool. :: To connect to a intrinsically safe signal circuit. :: SIL2, IEC61508.
Display Unit Head Transmitter
to plug on. Dot-Matrix measured value display. 12 DIP-switches buttom side. Settings: FF: Simulation, Write Lock. PA: Bus address, Write Lock. Compatible: TMT85, TMT84, TMT82, TMT71, TMT72.
